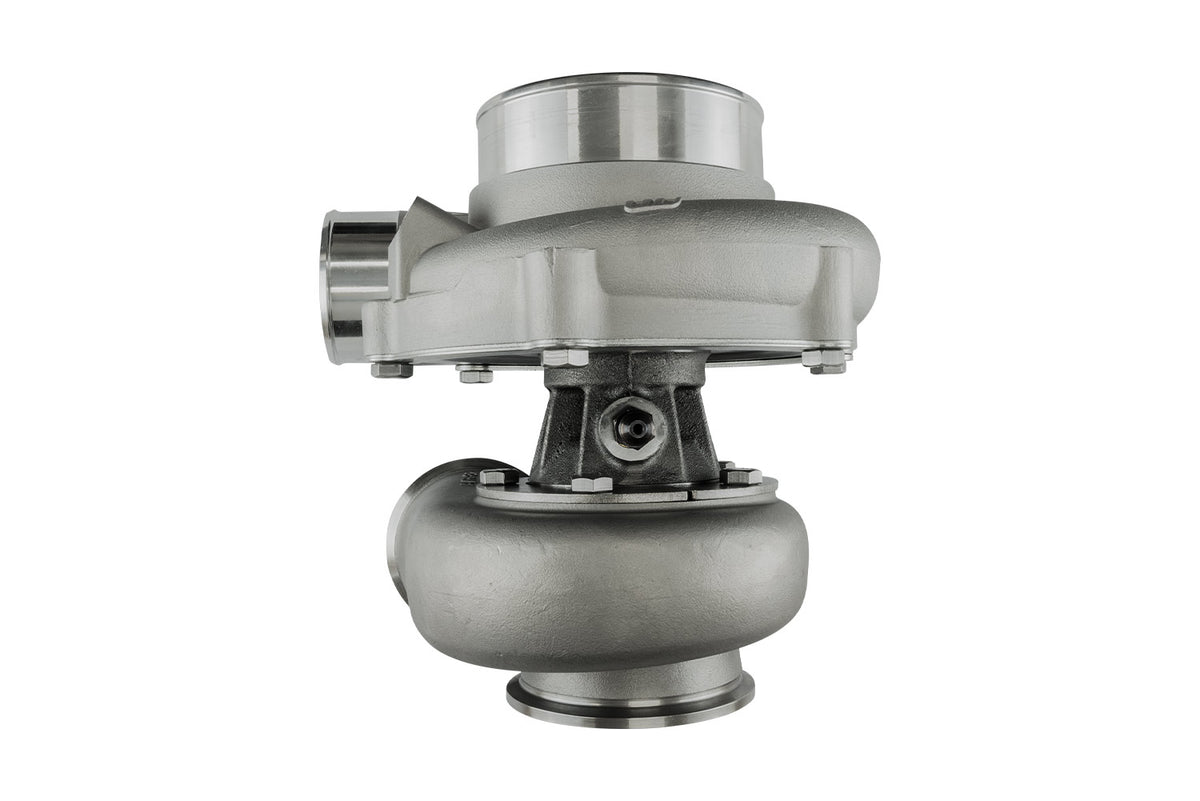

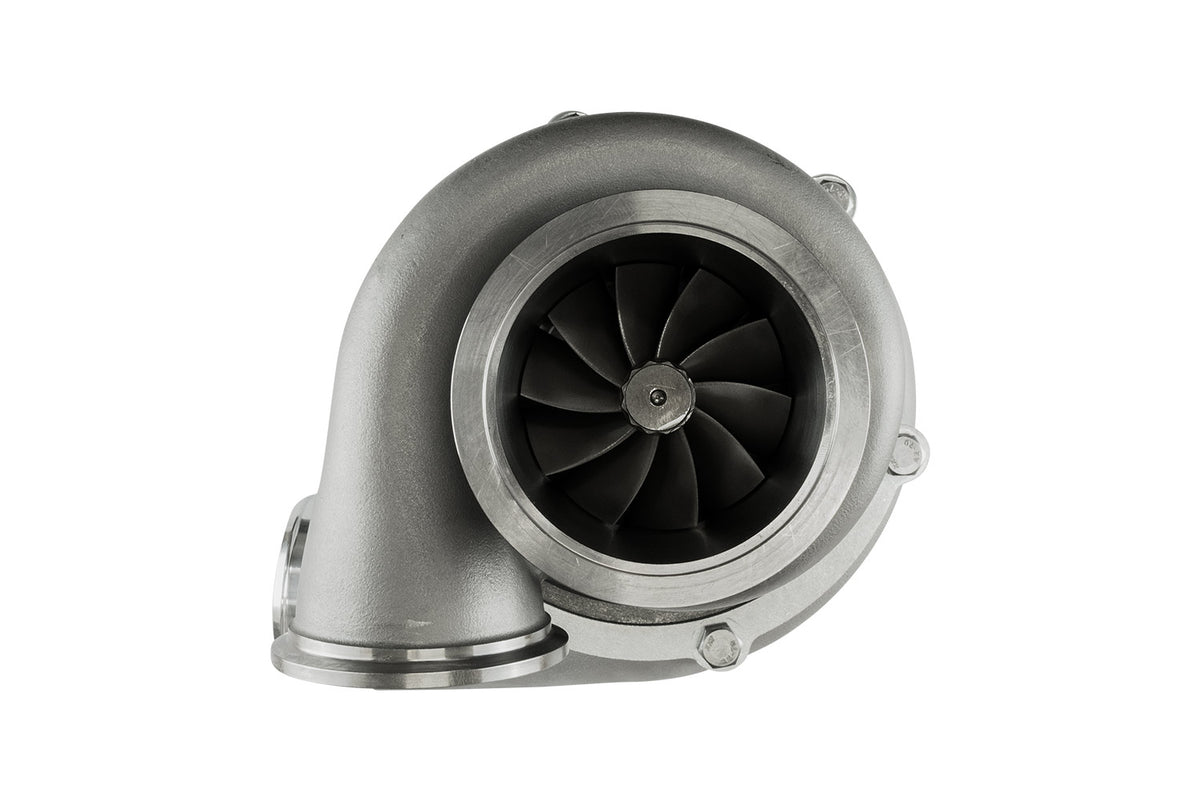

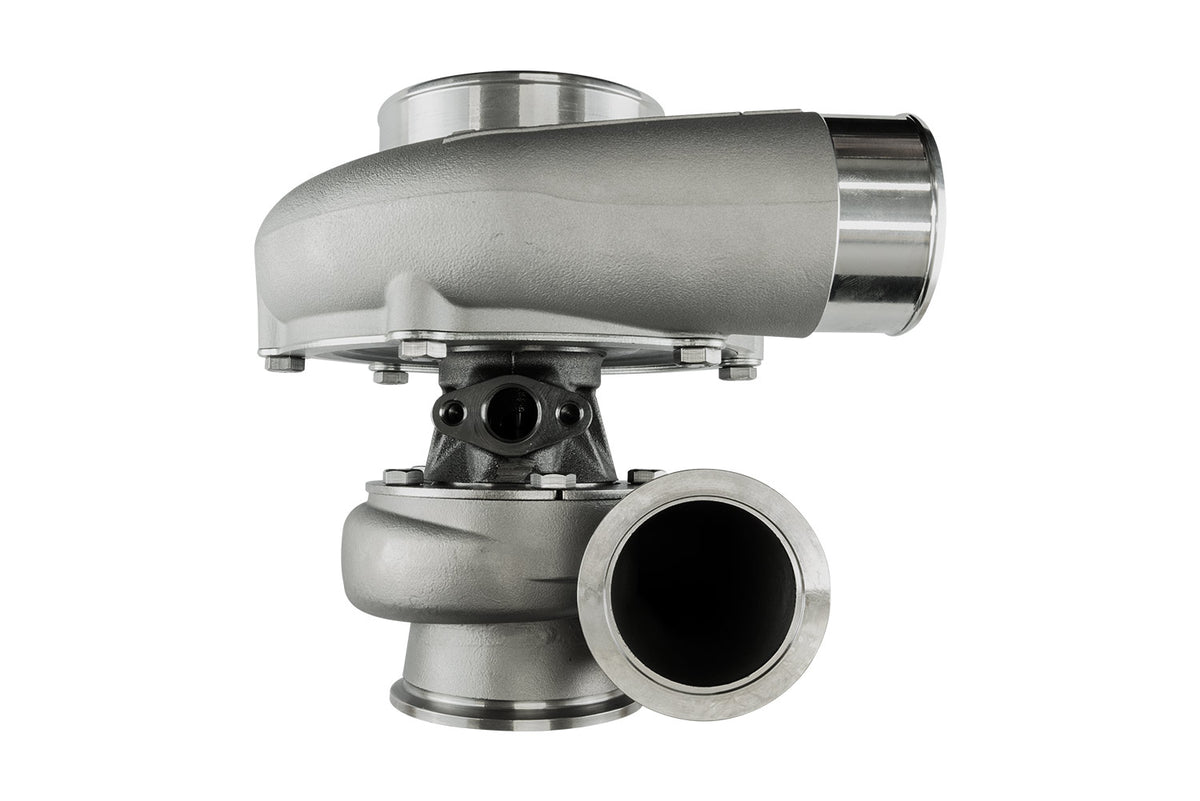

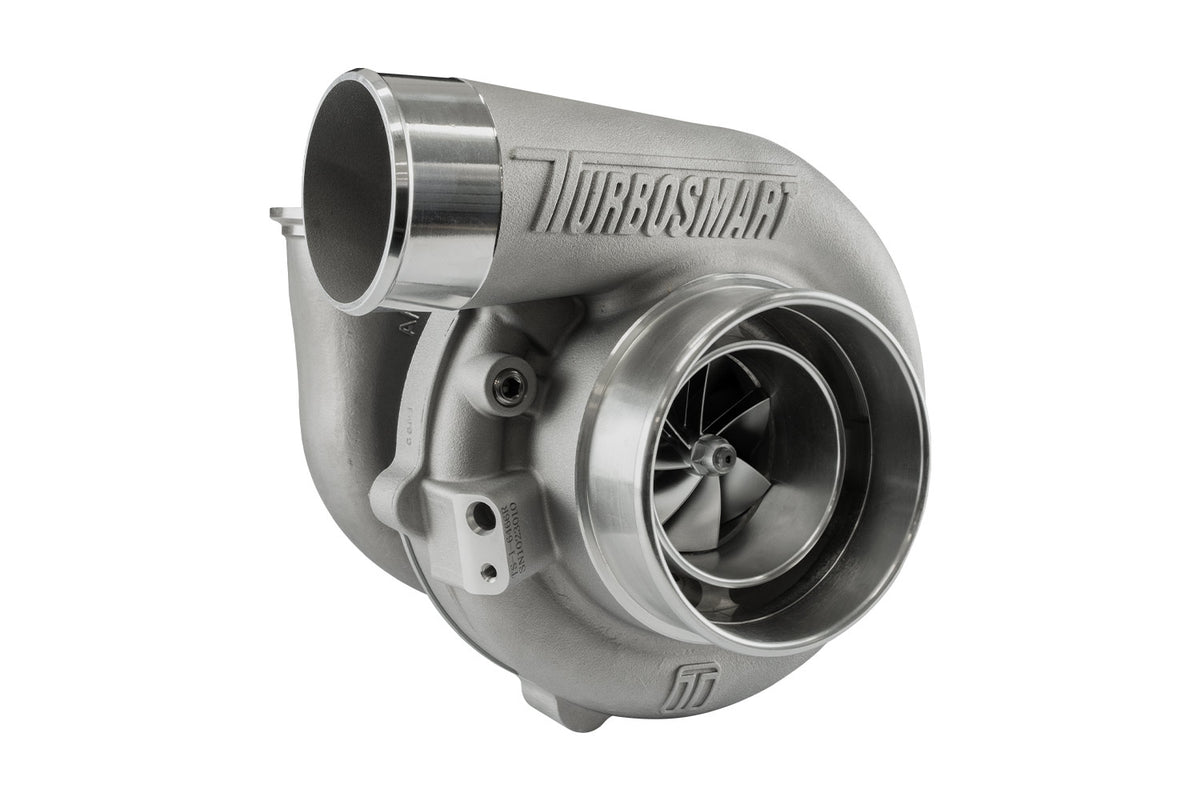

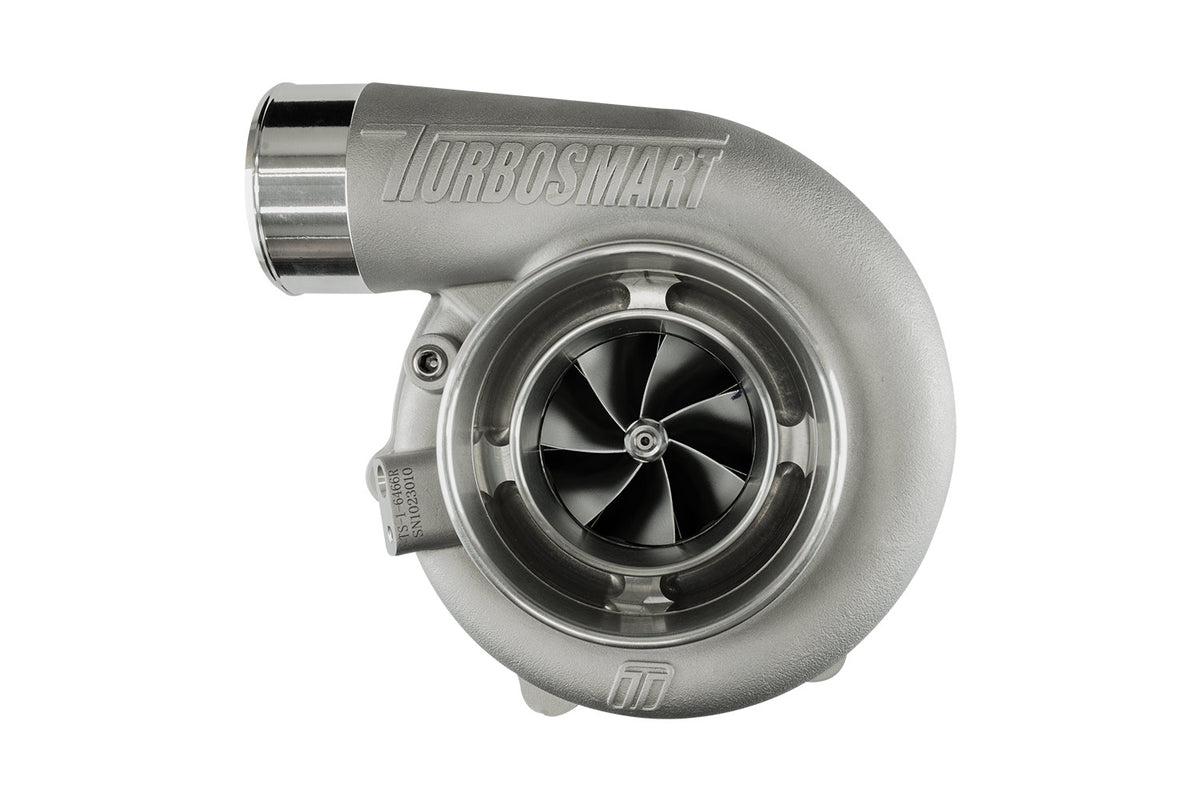

TS-1 Performance Turbosmart 6466 V-Band 0.82AR Turbocharger with External Wastegate and Reverse Rotation.

Smaller, Lighter, and Faster - Turbosmart's turbocharger series has been developed leveraging modern materials, design, and manufacturing techniques to create a range that satisfies the demands of both motorsport and performance enthusiasts.

Each Turbosmart turbocharger includes everything required for installation as standard - weld flanges, V-band clamps, gaskets, and oil feed & drain fittings.

The TS-1 series consists of oil-cooled turbochargers featuring lightweight precision cast turbine housings, a proprietary bearing and shaft assembly that delivers unimaginable transient response, with the performance, quality, reliability, and support you expect from Turbosmart.

The ultra-low rotating mass of our unique bearing and shaft assembly combined with aggressive compressor aerodynamics ensures high performance at low shaft speeds. Furthermore, a unique turbine ensures power is maintained even at high load and flow.
All Turbosmart turbochargers have been designed with a holistic approach to the engine, aiming to achieve power through lower back pressure and high-performing turbines, while being smaller, lighter, and offering faster response than other solutions on the market. Available in:

TS-1 Oil Cooled Turbochargers

TS-2 Oil & Water Cooled Turbochargers
V-Band, T3 & T4 Connections
Reverse Rotation (Selected Sizes)
Multiple A/R Options
Internal and External Wastegate Options Available

Features

Unrivaled Transient Response
Aggressive aerodynamics with 7+7 2618 Billet Compressor Wheel
Lightweight 310s Stainless Steel Investment Cast Turbine Housings
Lightweight Billet Compressor Covers
CFD Designed Housings for Optimal A/R and Flow
Inconel 713C Turbine Wheel for Extreme EGTs
VSR Speed Balanced
Proprietary Dual Ceramic Ball Bearing System
Integrated Backplate Cast into the Center Housing

Specifications

Compressor Inlet: 4″ / 101.6 mm
Compressor Inducer: 64 mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 66 mm
Turbine A/R: 0.82

Turbine Outlet: V-Band (3.00″)

Weight: 6.06 kg / 13.3 lb

Power: 825-955 hp

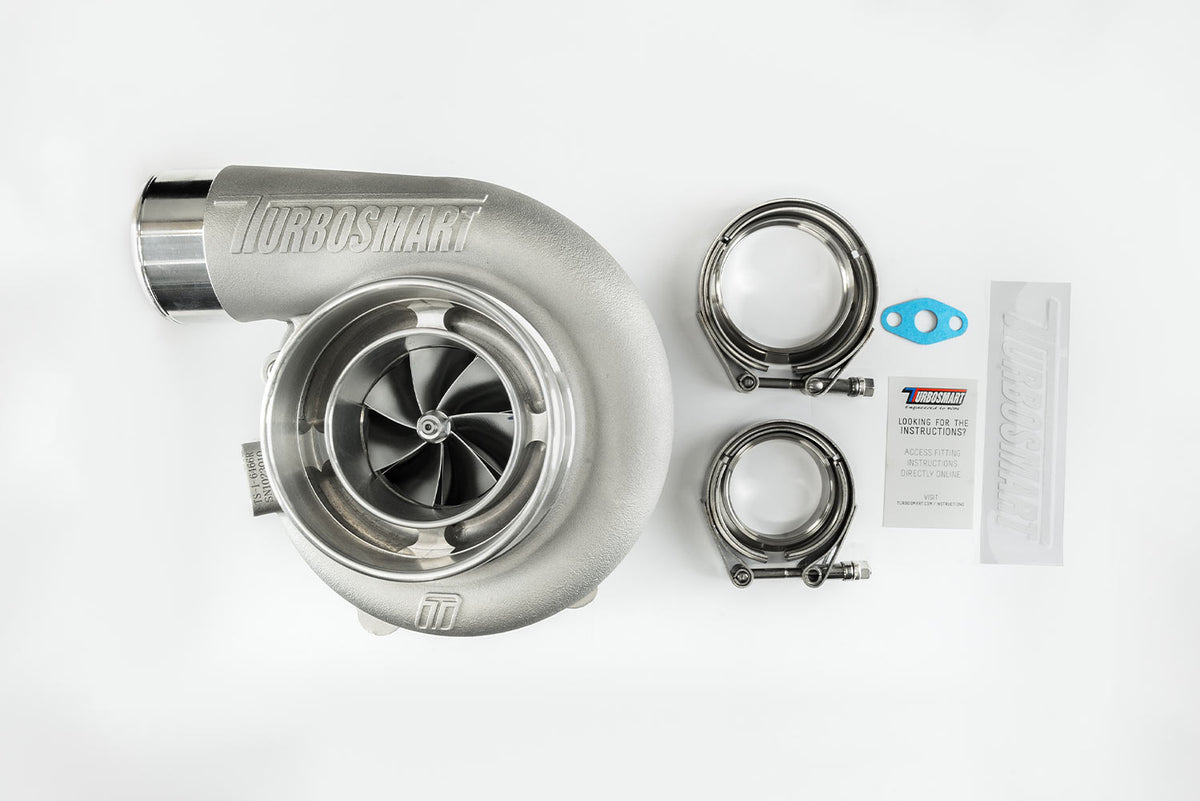

INCLUDES:

1x Turbosmart Performance Turbocharger

2x Weld Flanges (Turbine Inlet & Outlet)

2x V-Band Clamps (Turbine Inlet & Outlet)

1x Oil Drain Gasket
