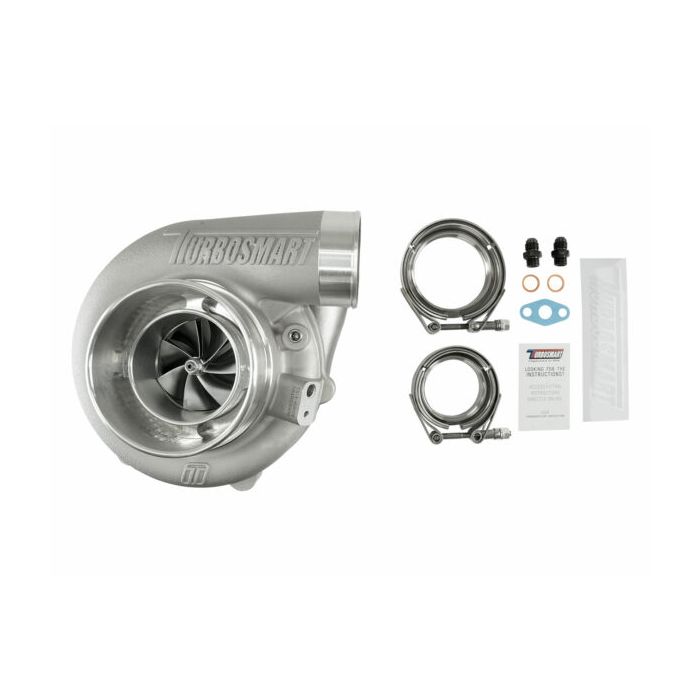

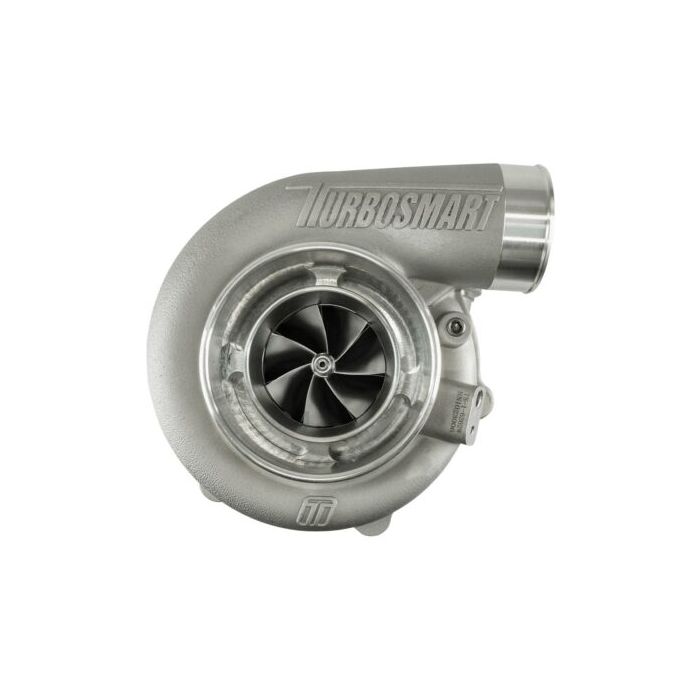

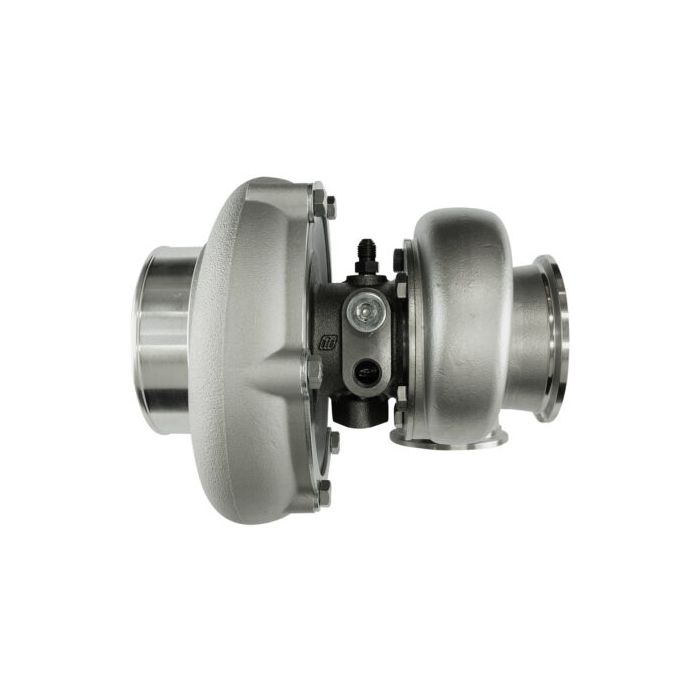

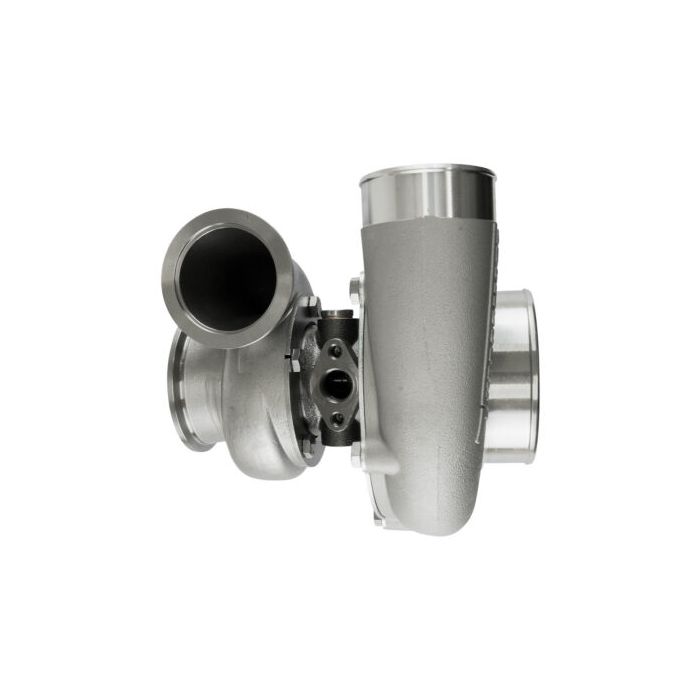

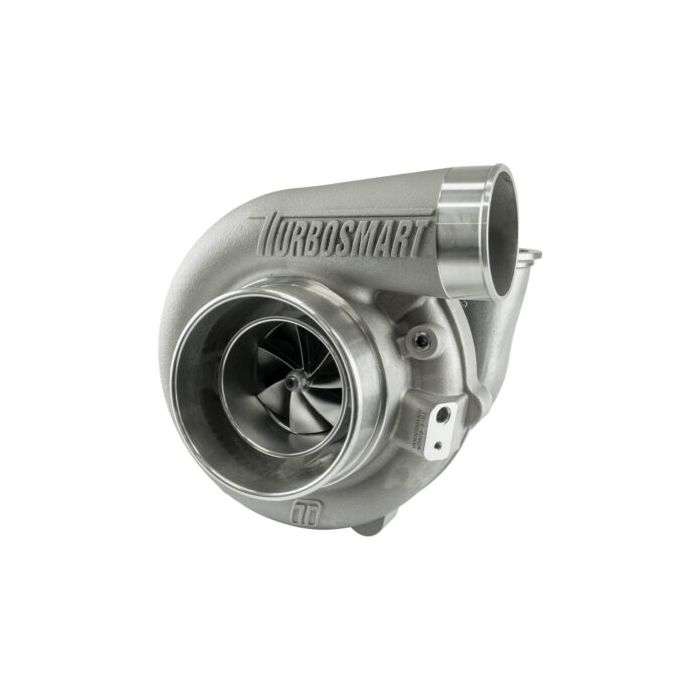

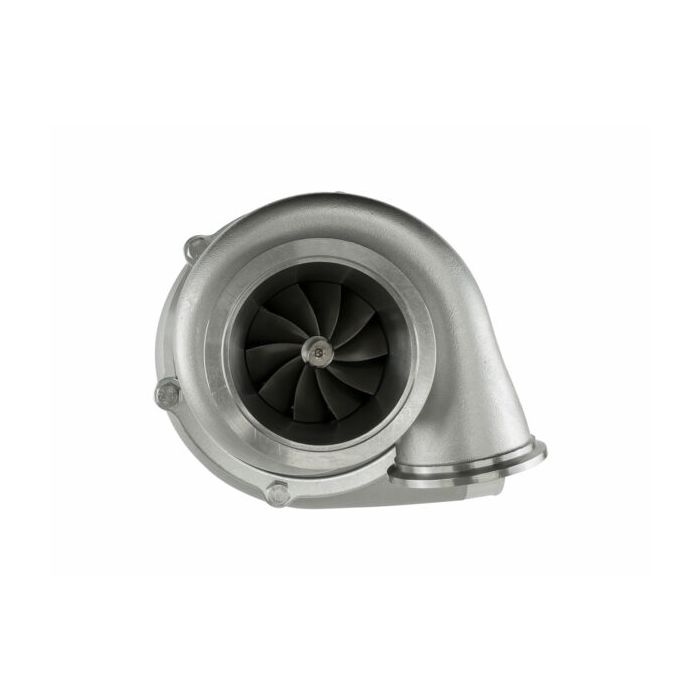

Turbosmart TS-2-6262VB082E High-Performance Turbo Water-Cooled 6262 V-Band 0.82AR with External Wastegate

Smaller, Lighter, Faster – Turbosmart’s TS-2 range of turbochargers has been developed to take advantage of modern materials, design and manufacturing techniques, creating a range of turbochargers that delivers on the demands of both motorsport enthusiasts and those seeking high performance. Water and oil cooled, TS-2 series turbochargers feature lightweight precision cast turbocharger housings, a proprietary bearing and main shaft combination delivers unimaginable transient response, with the performance, quality, reliability, and support you’ve come to expect from Turbosmart. The ultra-low rotating mass of our unique bearing and shaft assembly combines with aggressive compressor aerodynamics to ensure high performance at low shaft speeds, coupled with a unique turbine that ensures power is maintained at high loads and flow rates. The TS-2 range of turbochargers takes a holistic engine approach, seeking to achieve power through reduced backpressure and high-performing turbines, while delivering a smaller, lighter, and faster responding package than other solutions on the market.

Available in:
Oil Cooled TS-1 Turbochargers
Oil and Water Cooled TS-2 Turbochargers
V-Band, T3 and T4 Flange Options
Reverse Rotation (selected sizes)
Various Aspect Ratio (AR) Options
Internal and External Wastegate Options Available

Features:
Unrivalled Transient Response
Aggressive 7+7 Split Wheel Aerodynamics
Lightweight 310s Stainless Steel Investment Cast Turbine Housings
Lightweight Aluminium Compressor Covers
CFD Designed Housings for Optimal Aspect Ratio (AR) and Flow
T14 Inconel Turbine Wheel for Extreme Exhaust Gas Temperatures
VSR Speed Balanced
Proprietary Dual Ceramic Ball Bearing System
Integrated Iron Back Plate into Centre Housing

Specifications

Power: 800 hp

Compressor Inlet: 4” / 101.6mm
Compressor Inducer: 62mm
Turbine Inlet: V-Band (2.25”)
Turbine Exducer: 62mm
Turbine Aspect Ratio: 0.82
Turbine Outlet: V-Band (3.00”)
Weight: 6.06kg / 13.3lb
