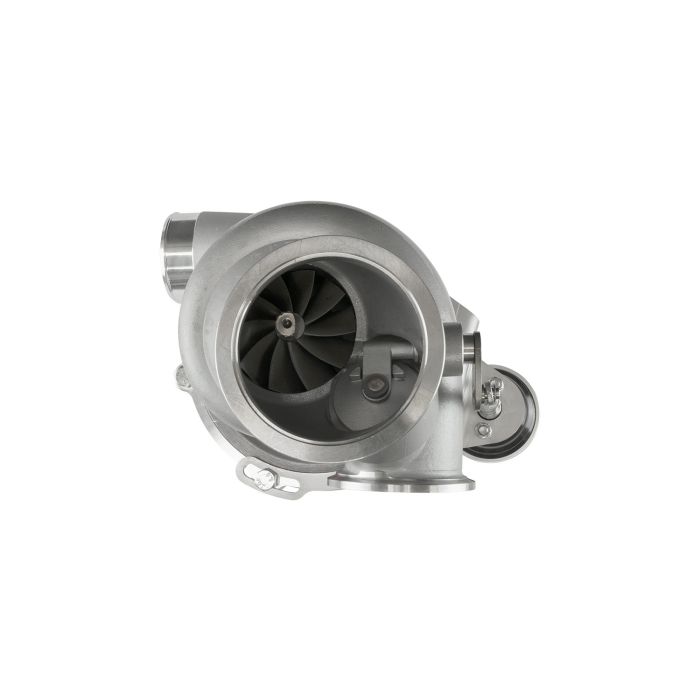

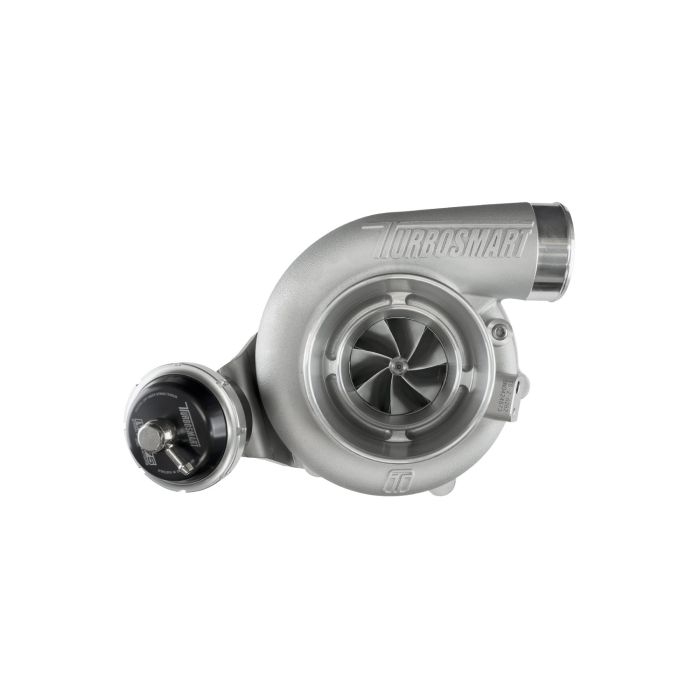

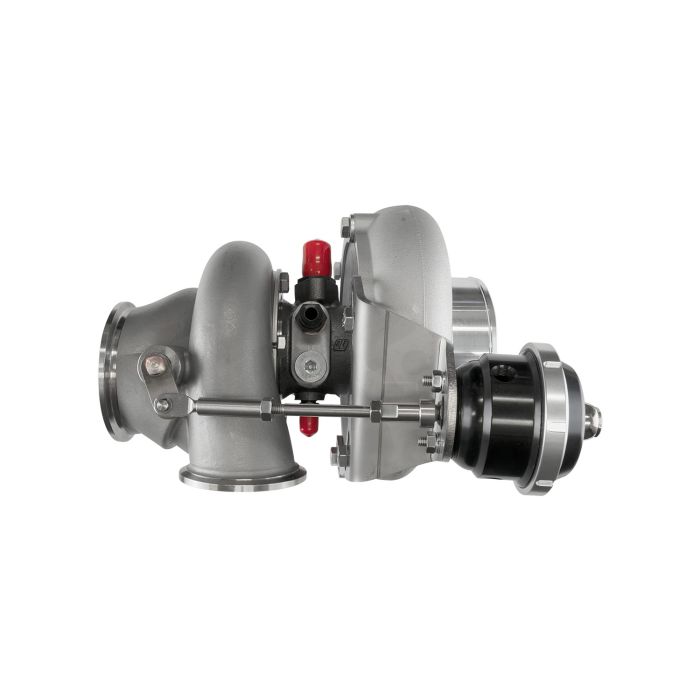

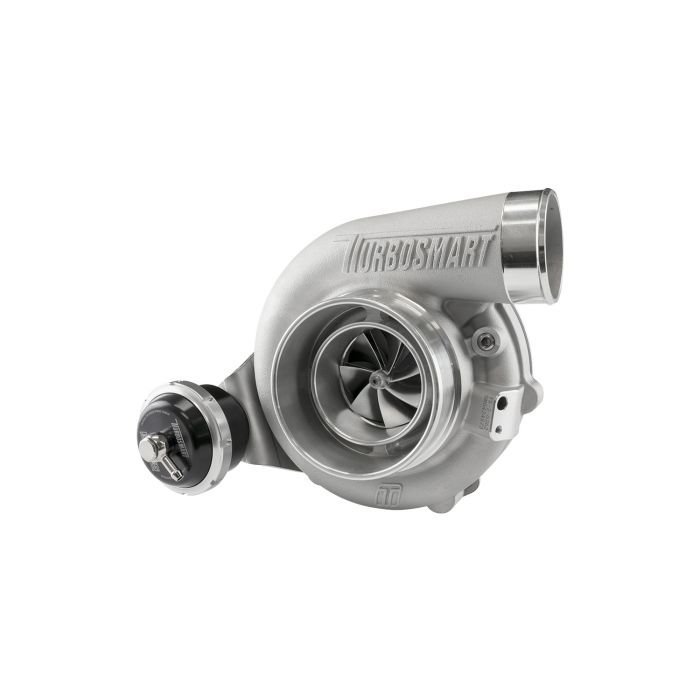

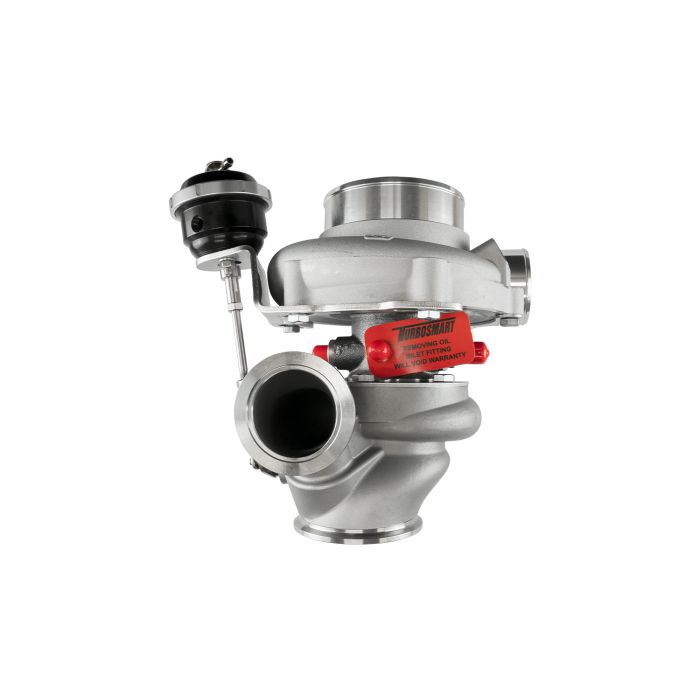

High Performance Turbo TS-2 (Water Cooled) 6262 V-Band 0.82AR with Internal Wastegate

Smaller, Lighter & Faster – Turbosmart’s range of Turbochargers has been developed to take advantage of modern materials, design and manufacturing techniques to create a range of turbochargers that meet the demands of both motorsport and performance enthusiasts.

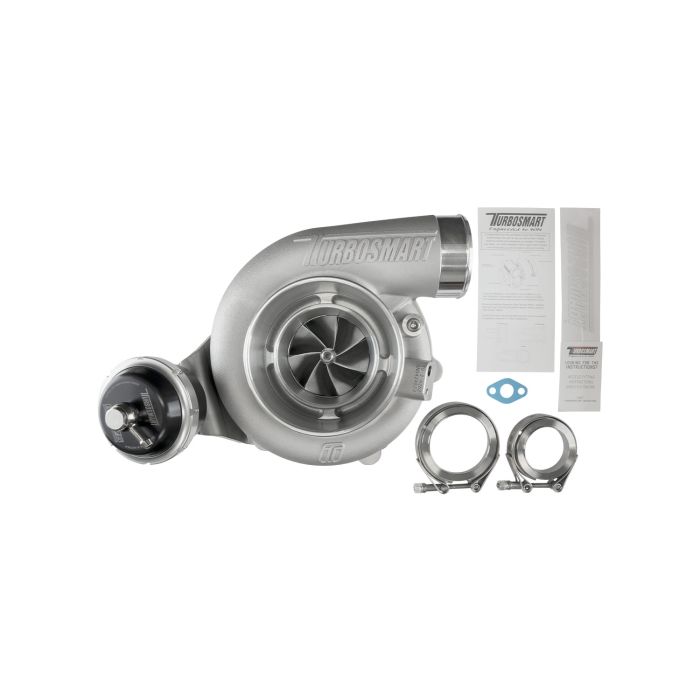

Every Turbosmart Turbo comes standard with everything required for installation – weld flanges, V-band clamps, gaskets, oil feed and drain fittings, as well as water feed and return fittings.
The TS-2 series are oil and water-cooled turbochargers featuring lightweight precision cast turbocharger housings, a proprietary bearing and shaft combination which will deliver transient response you never thought possible, with the kind of performance, quality, reliability, and support you have come to know Turbosmart for.
Our proprietary bearing and shaft assembly’s ultra-low rotating mass combines with aggressive compressor aerodynamics to ensure high levels of performance at low shaft speeds, which is coupled with a unique turbocharger wheel to ensure power is maintained at high loads and flow.
The TS-2 series of Turbochargers has taken a holistic approach to the engine, which seeks to make power via lower back pressure and high-performance turbos, while being smaller, lighter, and quicker responding than other solutions on the market. Features Unmatched Transient Response Aggressive aerodynamics featuring 7+7 split 2618 Billet aluminium wheels Lightweight 310s Stainless Steel Investment Cast Turbocharger Housings Lightweight Billet Aluminium Compressor Covers CFD designed housings for optimum air to fuel ratio and flow Inconel 713C Turbocharger Wheel for extreme exhaust gas temperatures VSR Speed Balanced Patented dual ceramic ball bearing system Integrated iron backplate in centre housing

Specifications

• Compressor Inlet: 4″ / 101.6mm
• Compressor Inducer: 62mm
• Turbine Inlet: V-Band (2.25″)
• Turbine Exducer: 62mm
• Turbine A/R: 0.82
• Turbine Outlet: V-Band (3.00″)
• Weight: 6.06kg / 13.3lbs
• Power: 760-880HP
