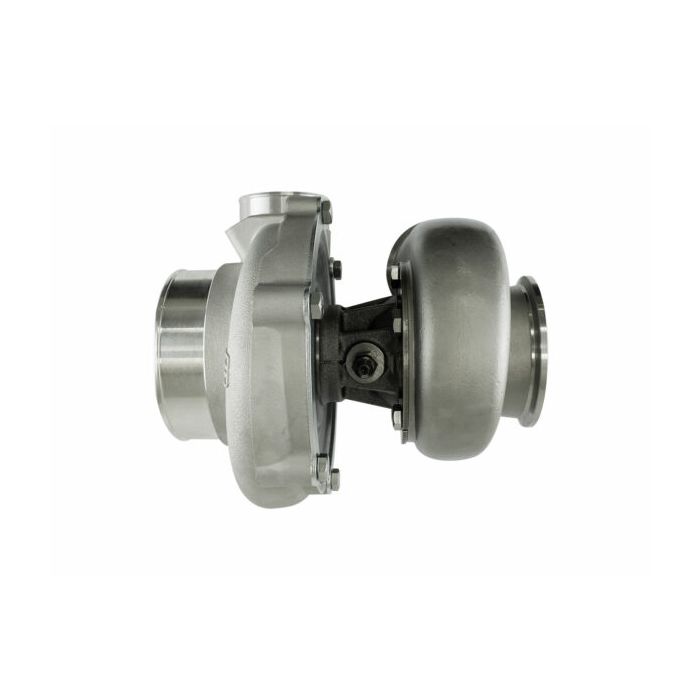

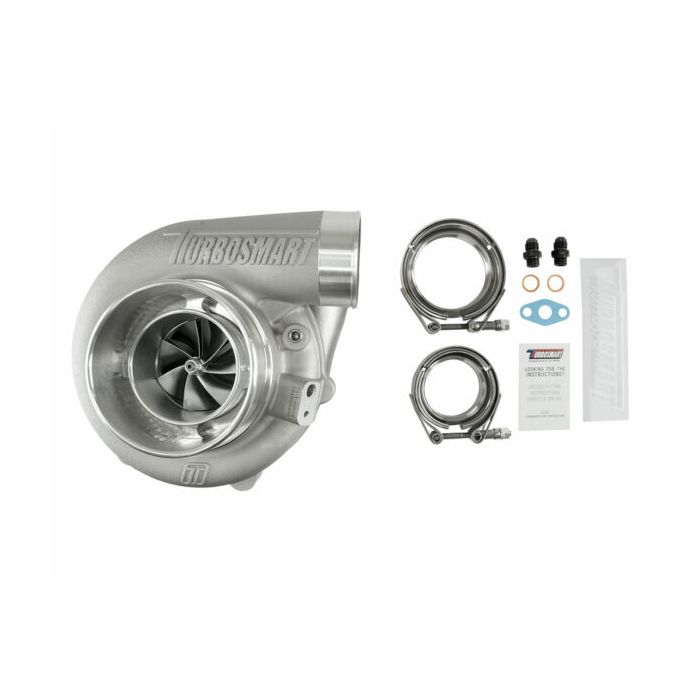

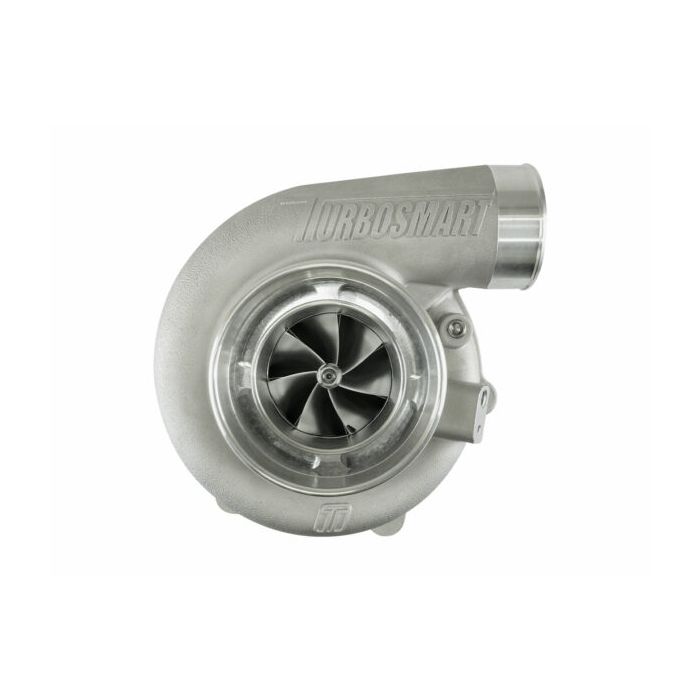

Turbosmart TS-1-6262VB082E High-Performance Turbo with V-Band, 0.82AR, and External Wastegate.

Smaller, Lighter, Faster - The Turbosmart TS-1 series of turbochargers has been developed to take advantage of modern materials, design, and manufacturing techniques, creating a range of turbochargers that delivers for both motorsport enthusiasts and high-performance aficionados.

TS-1 series turbochargers are oil-cooled and feature lightweight lost wax stainless steel turbine housings. A patented bearing and main shaft system provides unimaginable transient response, with the performance, quality, reliability, and support you expect from Turbosmart.

The ultra-low rotating mass of our unique bearing and shaft assembly combines with aggressive compressor aero to ensure high performance at low shaft speeds. Furthermore, a unique Inconel T14 turbine wheel is incorporated to ensure that power is maintained at high loads and flow rates.

The TS-1 series of turbochargers takes a holistic approach to increasing engine performance, seeking to achieve power through lower back pressure and high-performing turbos, all in a smaller, lighter, and faster format.

in response to other solutions on the market.

Available in:
TS-1 Oil Cooled Turbochargers
TS-2 Oil & Water Cooled Turbochargers
V-Band, T3 and T4 Flange Options
Reverse Rotation (selected sizes)
Various AR Options
Internal and External Wastegate Options Available

Features:
Unmatched Transient Response
Aggressive Aero with 7+7 Splitter Wheels
Lightweight Lost Wax 310s Stainless Steel Turbine Housings
Lightweight Billet Aluminum Compressor Covers
CFD Designed Housings for Optimal AR & Flow
T14 Inconel Turbine Wheel for Extreme EGTs
VSR Speed Balanced
Patented Dual Ceramic Ball Bearing System
Integrated Iron Back Plate in Centre Housing

Specifications

Power: 800 HP

Compressor Inlet: 4" / 101.6 mm
Compressor Inducer: 62 mm
Turbine Inlet: V-Band (2.25")
Turbine Exducer: 62 mm
Turbine A/R: 0.82
Turbine Outlet: V-Band (3.00")
Weight: 6.06 kg / 13.3 lb
