Radium Engineering 8AN Fluid Lock Radium Engineering Simple Recovery Tank Kit

OIL CATCH CAN OVERVIEW: These universal oil catch can kits are designed for installation on vehicles that exhibit oil accumulation from the PCV system.

Radium Engineering offers bolt-on oil catch can kits for various applications. For vehicles not covered, these universal kits are the next best alternative. Each kit includes Radium Engineering's patented Fluid Lock® universal oil catch can with universal mounting bracket, a length of PCV hose, a selection of adapters, and hose ends. A variety of adapters and hose ends are provided to allow for optimal hose routing. Some adapters will go unused. Additional adapters can be purchased from Radium Engineering.

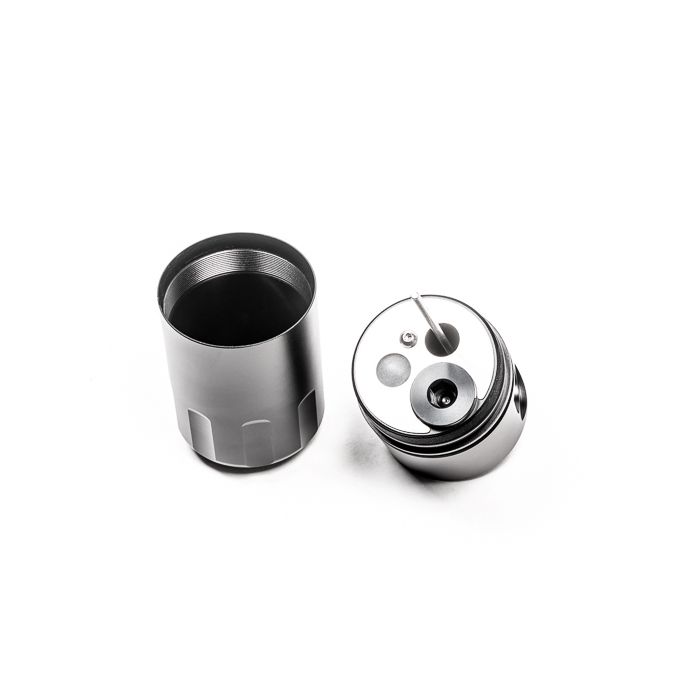

RADIUM CATCH CAN FEATURES: Catch cans are machined from solid 6061 aluminum. The two halves and all ports are O-ring sealed, ensuring they are safe for pressurized (forced induction) applications. The main inlet and outlet ports feature 10AN ORB (7/8"-14) female threads. An integrated dipstick unscrews for a quick oil level check. These catch cans feature an advanced air-oil separation system. As shown below, they incorporate a stainless steel baffle plate. Radium’s unique Fluid Lock® mechanism keeps oil trapped in the can and prevents it from spilling into the vent hoses when the can is full.

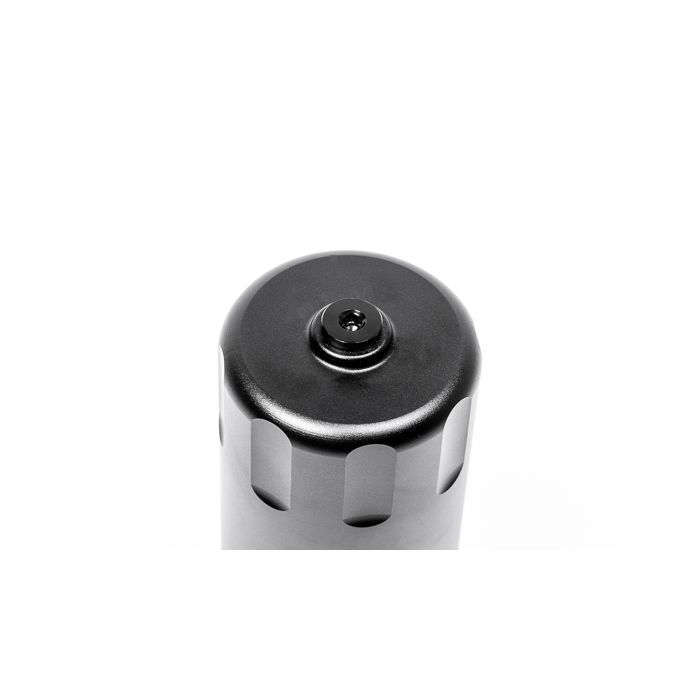

RADIUM CAN MAINTENANCE: These catch cans incorporate Radium Engineering’s patent-pending Fluid Lock® technology. Should the can fill up and not be emptied, an internal valve closes, preventing contaminates from leaving the can and entering the engine. Furthermore, it maintains normal venting through the can, preventing engine damage. For draining, there are several options depending on the application. If clearance allows, the lower body containing all the contaminates simply unthreads. However, if there is not clearance to remove the bottom of the can, there are other options. It features a 4AN ORB (7/16"-20) female threaded drain port. A 4AN ORB plug is included.

RADIUM CAN DIMENSIONS: Capacity: 7 fluid ounces. Height (without fittings): 4.9 inches. Outer Diameter: 2.45 inches.

20-1806-FL SINGLE CATCH CAN, 6AN KIT, FLUID LOCK. This catch can kit is great for custom applications. It is designed for engines that use 3/8" (10mm) plumbing for the PCV system. It is recommended to measure the engine's vent lines prior to ordering.

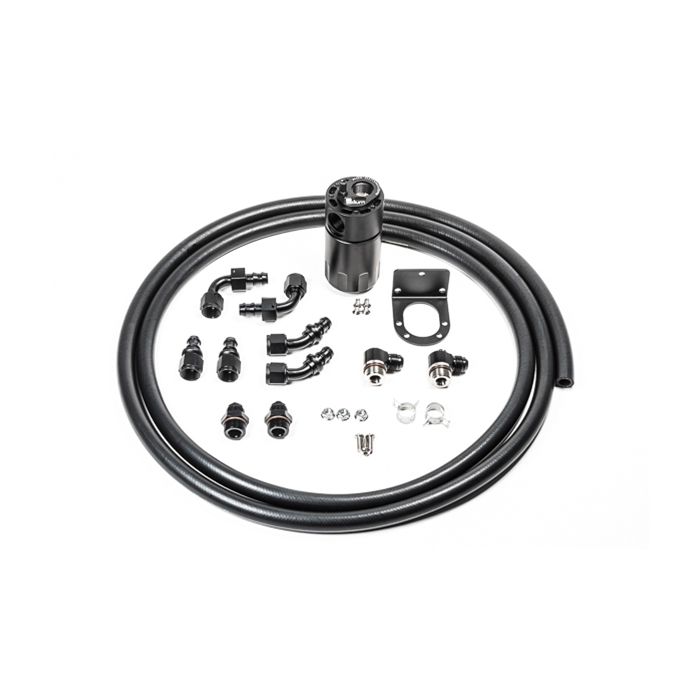

INCLUDES: 1x Fluid Lock Oil Catch Can, 2x 10AN ORB to 6AN Male Banjo Fittings, 2x 10AN ORB to 6AN Male Fittings, 2x 6AN PushLok Straight Hose Ends, 2x 6AN PushLok 45 Degree Hose Ends, 2x 6AN PushLok 90 Degree Hose Ends, 2x 3/8" Spring Hose Clamps, 1x Aluminum Mounting Bracket, 3x M6x1mm Stainless Steel Bolts, 3x M6x1mm Flange Nuts, 1x Service Interval Sticker, 10 feet of PCV Hose, 3/8" ID.

20-1808-FL SINGLE CATCH CAN, 8AN KIT, FLUID LOCK. This catch can kit is perfect for custom applications. It is designed for engines that use 1/2" (13mm) plumbing for the PCV. system. It is recommended to measure the engine's vent lines prior to ordering.

INCLUDES: 1x Fluid Lock Oil Catch Can, 2x 10AN ORB to 8AN Male Banjo Fittings, 2x 10AN ORB to 8AN Male Fittings, 2x 8AN PushLok Straight Hose Ends, 2x 8AN PushLok 45 Degree Hose Ends, 2x 8AN PushLok 90 Degree Hose Ends, 2x 1/2" Spring Hose Clamps, 1x Aluminum Mounting Bracket, 3x M6x1mm Stainless Steel Bolts, 3x M6x1mm Flange Nuts, 1x Service Interval Sticker, 10 feet of PCV Hose, 1/2" ID.

20-1810-FL SINGLE CATCH CAN, 10AN KIT, FLUID LOCK. This catch can kit is perfect for custom applications. Designed for engines that use 5/8" (16mm) plumbing for the PCV system. It is recommended to measure the engine's vent lines prior to ordering.

INCLUDES: 1x Fluid Lock Oil Catch Can, 2x 10AN ORB to 10AN Male Banjo Fittings, 2x 10AN ORB to 10AN Male Fittings, 2x 10AN PushLok Straight Hose Ends, 2x 10AN PushLok 60 Degree Hose Ends, 2x 10AN PushLok 90 Degree Hose Ends, 2x 5/8" Spring Hose Clamps, 1x Aluminum Mounting Bracket, 3x M6x1mm Stainless Steel Bolts, 3x M6x1mm Flange Nuts, 1x Service Interval Sticker, 10 feet of PCV Hose, 5/8" ID.

Instructions PDF
