Radium Engineering 6AN Fluid Lock Simple Recovery Tank Kit

OIL CATCH CAN OVERVIEW: These universal oil catch can kits are designed for installation on vehicles that exhibit oil accumulation from the crankcase ventilation system.

Radium Engineering offers bolt-on oil catch can kits for various applications. For uncovered vehicles, these universal kits are the next best alternative. Each kit includes Radium Engineering’s patented Fluid Lock® universal oil catch can with a universal mounting bracket, one run of PCV hose, a selection of adapters and hose ends. Various adapters and hose ends are supplied to achieve optimal hose routing. Some adapters will not be used. Additional adapters can be purchased from Radium Engineering.

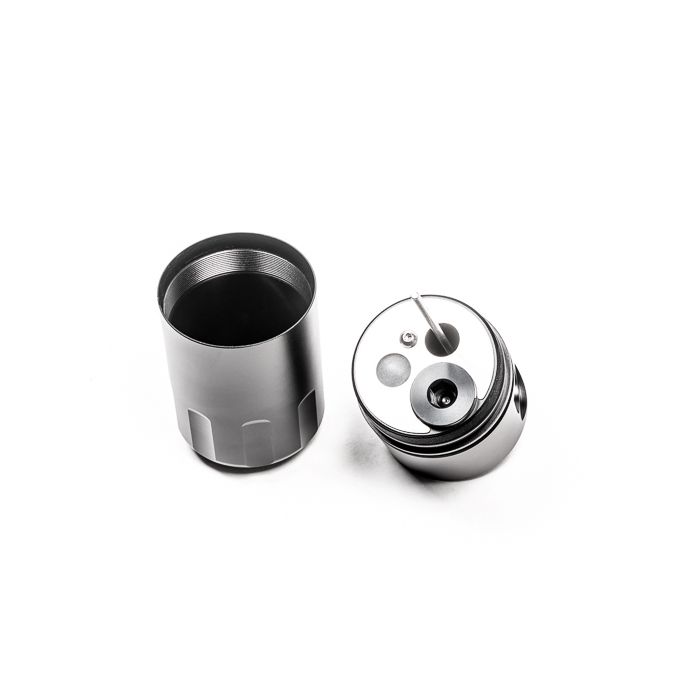

RADIUM CATCH CAN FEATURES: The catch cans are machined from solid 6061 aluminum. The two halves and all ports are O-ring sealed, ensuring they are safe for pressurized (forced induction) applications. The main inlet and outlet ports are 10AN ORB (7/8"-14) female threads. An integrated dipstick unscrews for a quick oil level check. These catch cans feature an advanced air-oil separation system. As shown below, a stainless steel baffle plate is incorporated. Radium’s unique Fluid Lock® mechanism keeps oil trapped in the catch can and prevents it from spilling into the vent hoses when the can is full.

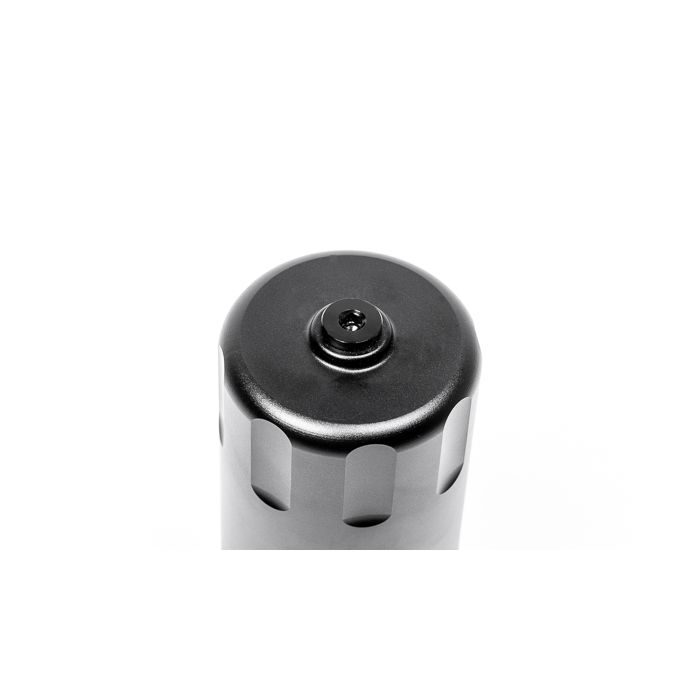

RADIUM CAN MAINTENANCE: These catch cans incorporate Radium Engineering’s patent pending Fluid Lock® technology. If the can fills and is not emptied, an internal valve closes, preventing contaminants from leaving the can and entering the engine. Furthermore, it maintains normal ventilation through the can, preventing engine damage. For draining, there are several options depending on the application. If room permits, the lower body that contains all contaminants simply unscrews. However, if there is no room to remove the bottom of the catch can, other options are available. It features a 4AN ORB (7/16"-20) female threaded drain port. A 4AN ORB plug is included.

RADIUM CAN DIMENSIONS: Capacity: 7 fluid ounces. Height (without fittings): 4.9 inches. Outer diameter: 2.45 inches.

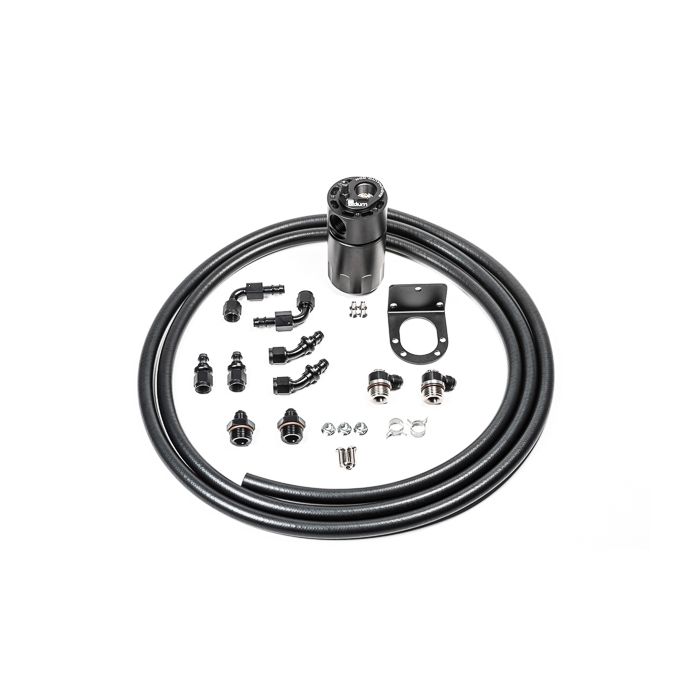

20-1806-FL SINGLE CATCH CAN, 6AN KIT, FLUID LOCK. This catch can kit is ideal for custom applications. It is designed for engines that use 3/8" (10mm) tubing for the crankcase ventilation system. It is recommended to measure the engine’s ventilation tubing before ordering.

INCLUDES: 1 Fluid Lock Oil Catch Can, 2 10AN ORB to 6AN male banjo fittings, 2 10AN ORB to 6AN male fittings, 2 6AN PushLok straight hose ends, 2 6AN PushLok 45-degree hose ends, 2 6AN PushLok 90-degree hose ends, 2 3/8" hose spring clamps, 1 aluminum mounting bracket, 3 M6x1mm stainless steel bolts, 3 M6x1mm flanged nuts, 1 service interval decal, 10ft (3m) PCV hose, 3/8" ID.

20-1808-FL SINGLE CATCH CAN, 8AN KIT, FLUID LOCK SYSTEM. This oil catch can kit is perfect for custom applications. It is designed for engines that use 1/2" (13mm) tubing for the crankcase. Ventilation system. It is recommended to measure the engine’s ventilation lines before ordering.

INCLUDES: 1 Fluid Lock oil catch can, 2 10AN ORB to 8AN male banjo fittings, 2 10AN ORB to 8AN male fittings, 2 8AN PushLok straight hose ends, 2 8AN PushLok 45-degree hose ends, 2 8AN PushLok 90-degree hose ends, 2 1/2" hose spring clamps, 1 aluminum mounting bracket, 3 M6x1mm stainless steel bolts, 3 M6x1mm flanged nuts, 1 service interval decal, 10ft PCV hose, 1/2" ID.

20-1810-FL SINGLE CATCH CAN, 10AN KIT, FLUID LOCK. This oil catch can kit is perfect for custom applications. Designed for engines that use 5/8" (16mm) tubing for the crankcase ventilation system. It is recommended to measure the engine’s ventilation tubing before ordering.

INCLUDES: 1 Fluid Lock oil catch can, 2 10AN ORB to 10AN male banjo fittings, 2 10AN ORB to 10AN male fittings, 2 10AN PushLok straight hose ends, 2 10AN PushLok 60-degree hose ends, 2 10AN PushLok 90-degree hose ends, 2 5/8" hose spring clamps, 1 aluminum mounting bracket, 3 M6x1mm stainless steel bolts, 3 M6x1mm flanged nuts, 1 service interval decal, 10ft (3m) PCV hose, 5/8" ID.
