Oil Catch Can Kit for Toyota Chaser / MARK II / Cresta 96-01 Fluid Lock Radium Engineering

COMPATIBILITY: Toyota Chaser 96-01 (all models/versions/engines), Toyota Cresta 96-01 (all models/versions/engines), Toyota Mark II 96-00 (all models/versions/engines).

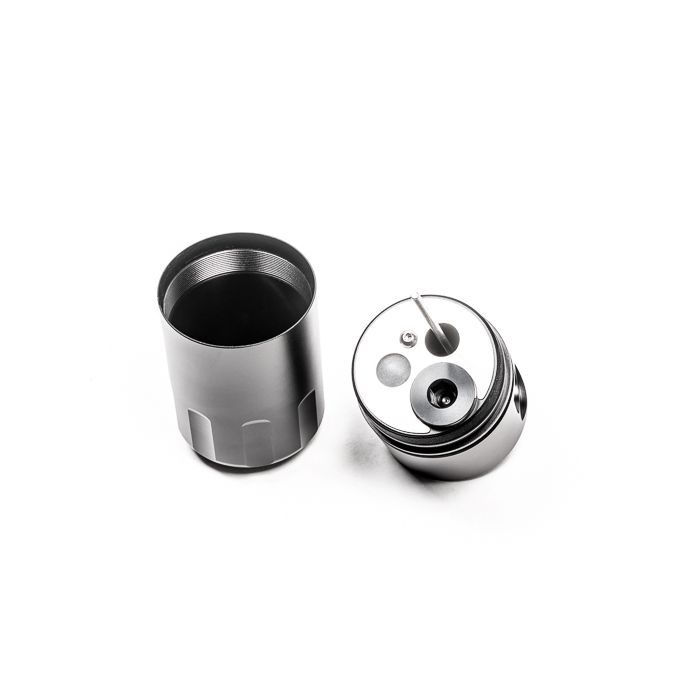

Radium Engineering oil catch cans feature oversized 10AN ORB ports, a 4AN ORB drain port, two-stage oil separation baffles, and an o-ring sealed dipstick. This kit installs using factory holes and integrates seamlessly with surrounding components. They are not vented to atmosphere (VTA), so they are emissions compliant and track legal. Closed loop systems remove oil and sludge from PCV gases before they ever reach the engine for combustion. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The integrated dipsticks on the catch cans allow for easy inspection of the accumulated fluid. No cutting, drilling, or permanent modifications are required.
The oil catch can kit installs in-line between the PCV valve and intake manifold.

It mounts to the threaded mounts just behind the right shock tower, near the firewall.

When intake manifold pressure is near or above atmospheric pressure, the PCV check valve closes, and therefore, this hose does not experience flow. Conversely, the PCV hoses experience controlled vacuum when the engine is idling, steady state cruising, and decelerating. This would typically draw crankcase vapors, unburnt fuel, and oil sludge into the intake manifold immediately after high-load operation.

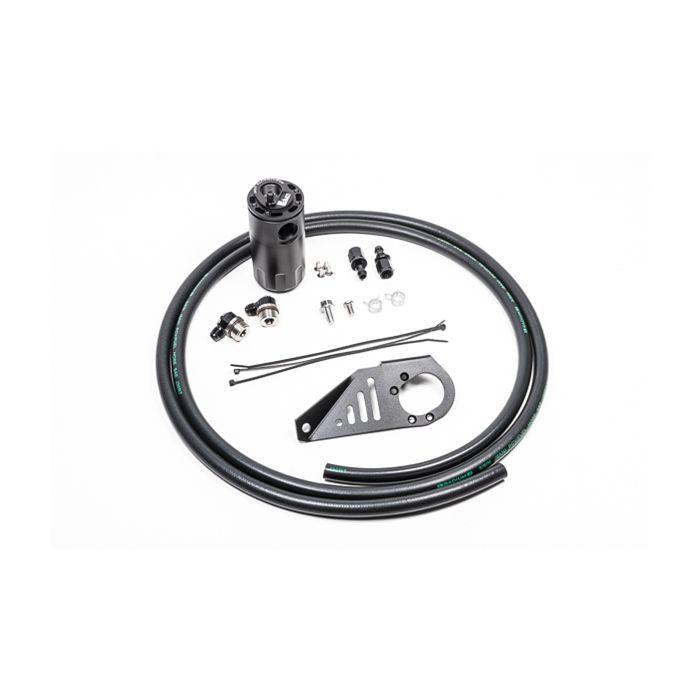

INCLUDES: Baffled Oil Catch Can, Toyota Specific Mounting Bracket, AN Adapters & Hose Ends, Stainless Steel Hardware, Radium PCV Hose.

Instruction PDF
