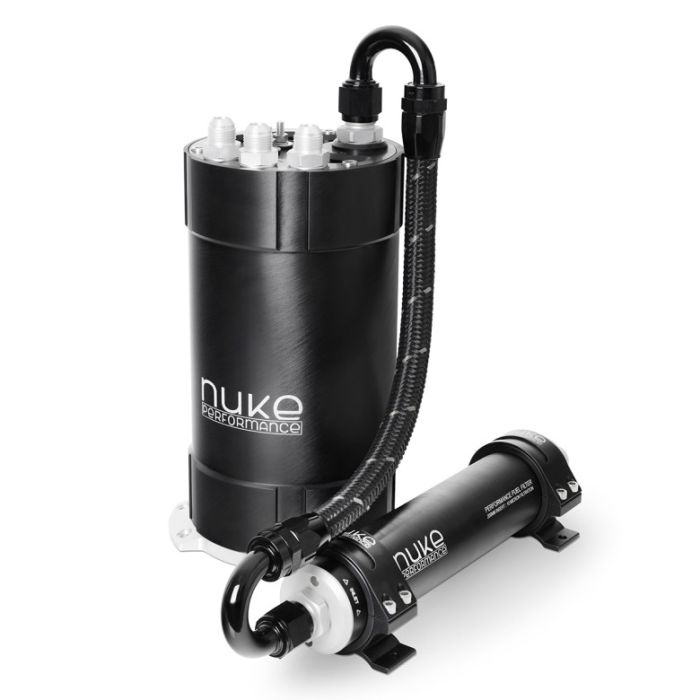

Nuke Performance 2G Fuel Surge Tank Kit for In-Tank Fuel Pumps

Nuke Performance's second-generation fuel surge tank, with everything you need to mount your high-pressure fuel pumps.
This new upgraded version is the first of its kind, specially developed and designed to mount a single or dual setup of most common fuel pumps from AEM, Deatschwerks, Bosch, Aeromotive, Walbro, and more.

A lightweight fuel surge tank for motorsports
Compatible with single or dual high-pressure fuel pumps
10-micron stainless steel fuel filter
Surge tank capacity: 3.0 liters
Kit with surge tank and fuel filter
100% safe for all types of fuel
Delivered with AN-10 ORB fittings

This kit allows you to combine two internal fuel pumps to a filtered AN-10 ORB outlet. This fuel surge tank can provide a steady flow of fuel even with over 2000 hp. This setup includes everything needed for a solution and design that optimizes space and power consumption.

Choose between a single or dual internal fuel pump setup
Use one or two fuel pumps individually with multiple electrical connectors on the top lid. Designed and manufactured to withstand extreme amounts of power, with the same hallmark of all Nuke Performance products.

Everything you need to mount a single or dual internal fuel pump is included in the Nuke Performance second-generation fuel surge tank kit. It is compatible with a wide selection of fuel pumps to meet all your fuel needs and demands:

1-2 x Deatschwerks DW200 / DW300 / DW400
1-2 x AEM 320L
1-2 x Aeromotive Stealth 325 / 340 / 450
1-2 x Bosch BR540
1-2 x Ti Automotive Walbro GSS341/342 GST400/450/520

Fuel pumps are mounted with the machined internal mounting bracket.
This fuel surge tank includes an internal bracket for all common 39mm fuel pumps, with a perfect fit. It is also compatible with larger diameter pumps, such as Bosch BR540 and Deatschwerks DW400, making this kit suitable for all possible needs between 200 and 2500 horsepower.

High-flow fuel pumps without needing to modify the fuel tank.
With our fuel surge tank, the risk is minimized that, when running on a low fuel level, the system cannot support extremely demanding driving, such as drifting, drag racing, and track days where over 2g can be exceeded, which could lead to fuel starvation. With this setup, you can rely on maximum fuel supply, a safe solution for your engine and setup, even in the most demanding conditions.

That you can install high-flow fuel pumps inside the tank without needing to modify your original fuel tank is almost as important; in fact, this is the only setup you need. The fuel surge tank acts as a buffer, ensuring that the fuel pumps always receive fuel for high outputs, as the return line from the engine goes directly back to the tank, keeping it always full. How to install the fuel pumps inside the Nuke Performance surge tank? Your original fuel pump or the auxiliary fuel pump inside your original fuel tank or your aftermarket fuel tank acts as a lift pump ensuring that the high-pressure fuel pumps inside the oversized 3-liter surge tank always have enough fuel to maximize flow and minimize the risk of fuel starvation, which can severely damage your engine. The fuel surge tank kit includes everything needed to install your chosen fuel pumps, but we recommend adding one of our fuel pump installation kits for optimal operation. All fuel pumps are securely mounted in any condition thanks to the machined fuel pump brackets. 10-micron stainless steel fuel filter with welded end caps. The included Nuke Performance high-flow fuel filter uses a unique 200mm, 10-micron stainless steel filter element, 100% made of stainless steel with exclusive welded end caps that exclude common glue that can dissolve when switching from gasoline to ethanol or when using aggressive fuels such as racing fuel. By using the oversized Nuke Performance fuel filter, you will never again have to worry about filter element failures. For more information about the 200mm fuel filter, visit the product page.
High-Performance Fuel Filter Part Number: 200-03-201

Available in various configurations to meet all your needs
Our fuel surge tank is available in several different configurations, each designed to offer maximum performance. It includes a machined aluminum mounting bracket with a six-bolt pattern that ensures secure attachment in any installation. Depending on the configuration you choose, it includes a variable number of electrical connections, but regardless of the model, it is always equipped with our oversized electrical connectors that can handle up to 10 times the current used. The single-output version is equipped with dual-pass connectors, allowing you to choose whether you want the different fuel pumps to run in different passes, with separate fuses, or simultaneously. The kit is delivered with an AN-10 fuel line and is ready for AN-8 and AN-10 connections available in various variants and sizes. It includes a machined aluminum mounting bracket for easy installation. AN-10 ORB connections for the fuel surge tank outlet and fuel filter inlet are included in the kit. The fuel filter outlet is AN-10 ORB, and the surge tank supply, return, and overflow ports are AN-8 ORB. AN-8 and AN-10 ORB fittings are sold as accessories and are available in a wide variety of sizes and variations.
Fuel Filter Outlet Fittings:
AN-10 ORB to AN-6 Male Part No.: 700-04-108
AN-10 ORB to AN-8 Male Part No.: 700-04-109
AN-10 ORB to AN-10 Male Part No.: 700-04-110
AN-10 ORB to AN-12 Male Part No.: 700-04-111

Supply, Return, and Overflow Fittings:
AN-8 ORB to AN-6 Male Part No.: 700-04-104
AN-8 ORB to AN-8 Male Part No.: 700-04-105
AN-8 ORB to AN-10 Male Part No.: 700-04-106

Developed to meet the high demands of motorsports
This fuel surge tank kit, developed in collaboration with motorsports teams worldwide, is designed to perform in all conditions and for any power, being used in all types of motorsports such as drag racing, drifting, GT racing, time attack, and more. The second-generation fuel surge tank kit arises from the great demand for a comprehensive solution with the best available components. Designed to withstand the destructive properties of alcoholic fuels, including methanol and ethanol.

Made in Sweden, ensuring the highest possible quality
The second-generation fuel surge tank kits are developed, designed, and manufactured by Nuke Performance to offer the highest possible quality and with the same hallmark as all other lightweight motorsports parts.

Nuke Performance quality is second to none!

The fuel surge tank kit includes:
1 x 3.0 liter fuel surge tank
1 x PF200 10-micron fuel filter with stainless steel element
2 x single fuel filter brackets
2 x AN-10 180° hose ends
1 x braided AN fuel hose
1 x aluminum mounting bracket with 6-bolt pattern
2 x AN-10 ORB to AN-10 male connectors
1 x internal dual mounting bracket for DW400 fuel pumps
2 x 39mm fuel pump mounting inserts
2 x 1/4 BSPP to 8mm connectors (fuel hose)
1 x 1/4 BSPP plug (for single fuel pump use)

Fuel surge tank kit specifications

border="0">

Part No.	150-01-304
FST Height	265 mm (10.43”)
FST Diameter	Ø 148 mm (5.82”)
FST Bracket Diameter	Ø 178 mm (7.00”)
FST Mounting Points	6 x M6 (Ø 6.5 mm / 0.25”)
Kit Weight	3955 g (8.71 lb)
Fuel Filter Element	200mm, 10 micron stainless steel	Fuel Capacity	≈ 3 liters (0.8 gallons)	Outlet Thread	AN-10 ORB	Inlet Thread	AN-8 ORB	Return Thread	AN-8 ORB
Electrical Connector	M6, Max ≈125 Amps / unit

Fuel surge tank kit specifications

Part Number	150-01-304
Fuel Surge Tank Height	265 mm (10.43”)
Fuel Surge Tank Diameter	Ø 148 mm (5.82”)
FST Bracket Diameter	Ø 178 mm (7.00”)
FST Mounting Points	6 x M6 (Ø 6.5 mm / 0.25”)
Kit Weight	3955 g (8.71 lb)
Fuel Filter Element	200mm, 10 micron stainless steel
Fuel Capacity	≈ 3 liters (0.8 gallons)
Outlet Thread	AN-10 ORB
Inlet Thread	AN-8 ORB
Return Thread	AN-8 ORB
Electrical Connector	M6, Max ≈125 Amps / each

Compatible with fuel pumps:
1 - 2 x Deatschwerks DW200
1 - 2 x Deatschwerks DW300
1 - 2 x Deatschwerks DW400
1 - 2 x AEM 320L
1 - 2 x Aeromotive Stealth 325
1 - 2 x Aeromotive Stealth 340
1 - 2 x Aeromotive Stealth 450
1 - 2 x Bosch BR540
1 - 2 x Ti Automotive Walbro GST450
1 - 2 x Ti Automotive Walbro GST520

Assembly Documentation (.pdf)
