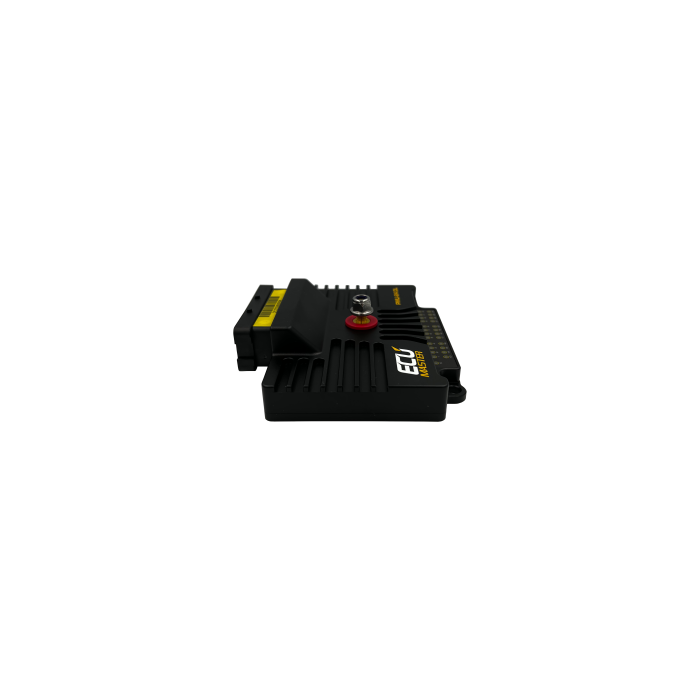

Ecumaster PMU-24 DL

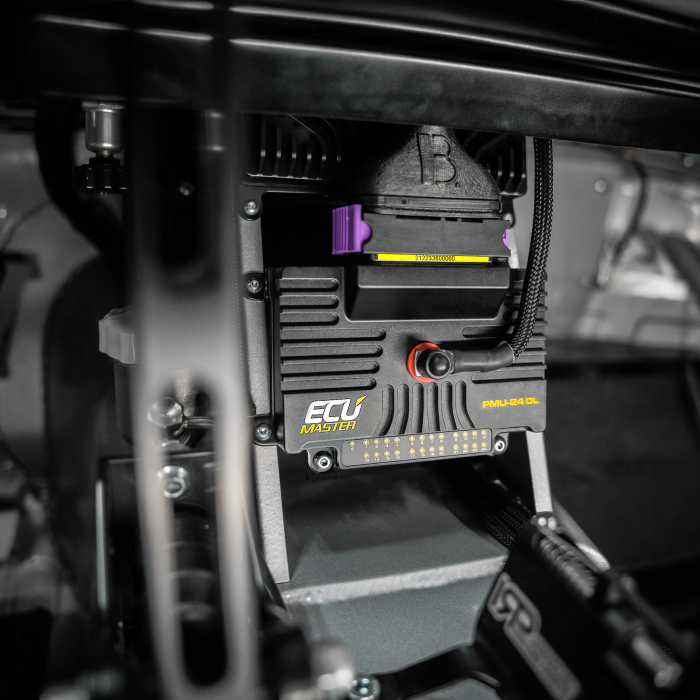

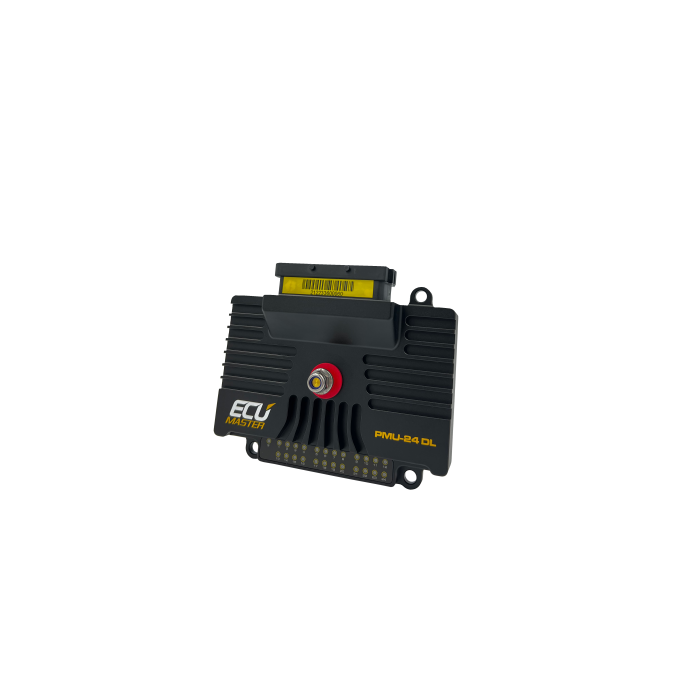

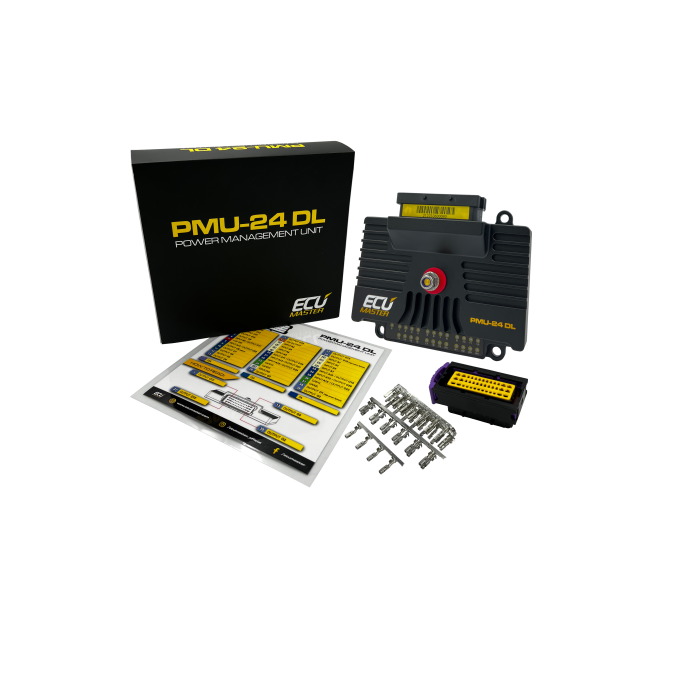

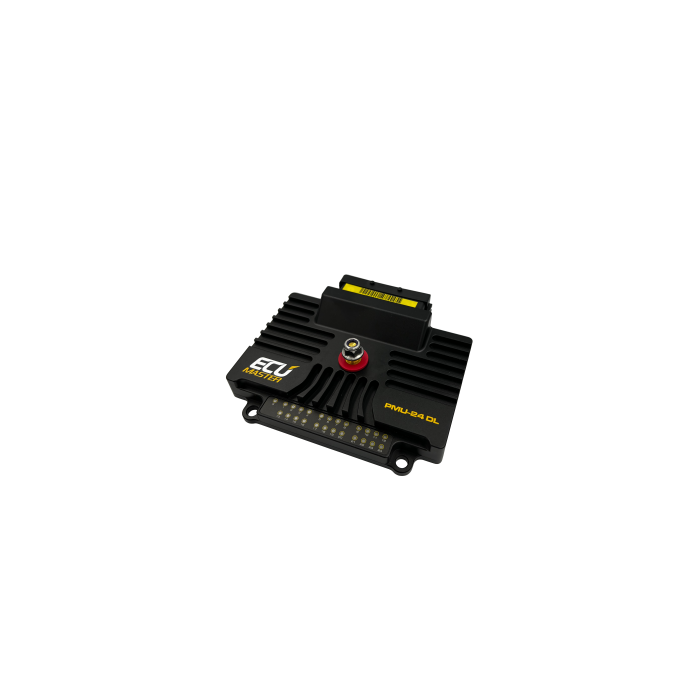

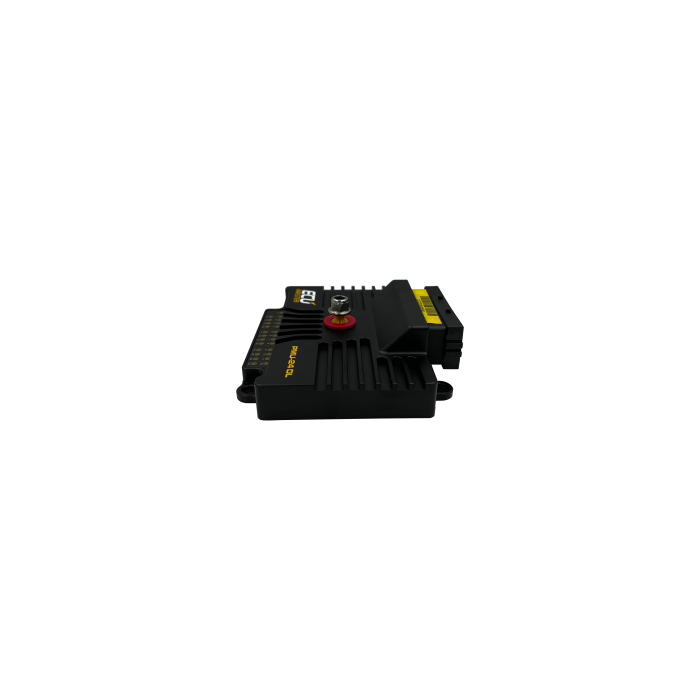

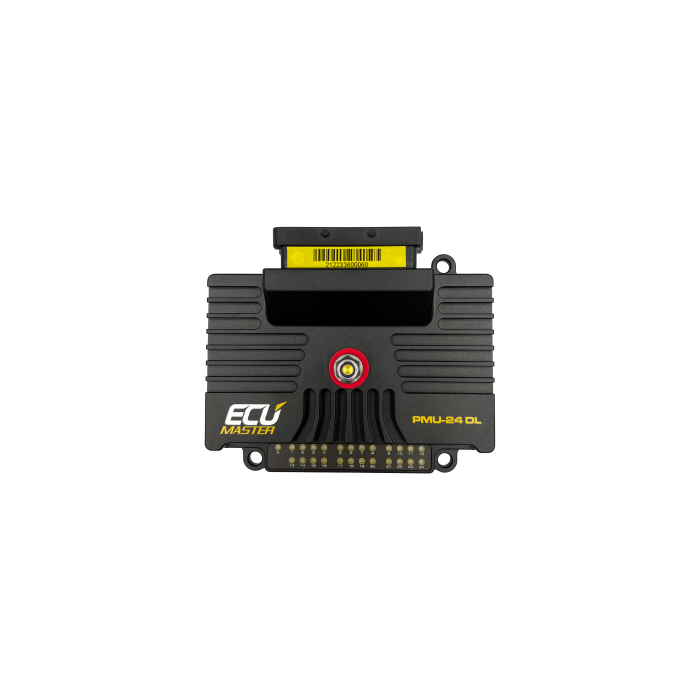

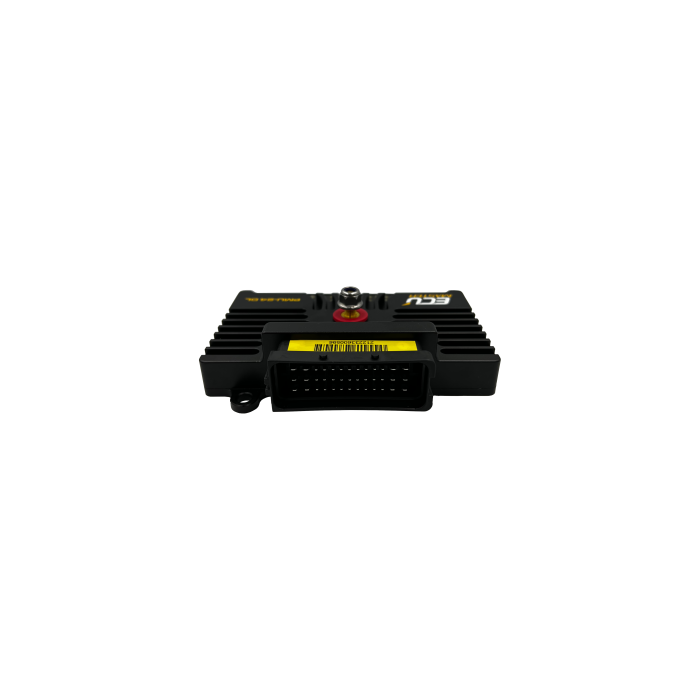

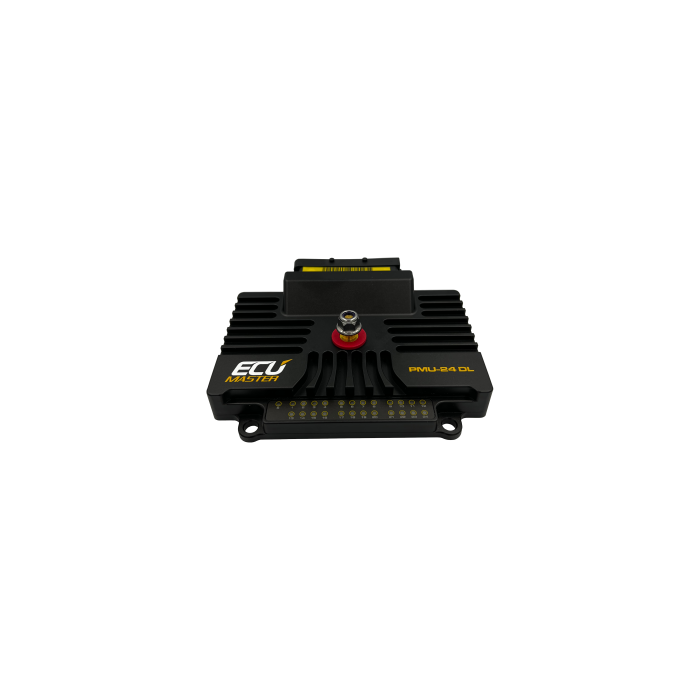

PMU-24 DL NEW PMU24-DL AVAILABLE NOW! The PMU-24DL is a new and improved power management unit that offers all the advantages of the PMU-16, now with 24 high-side outputs and internal memory for serial data logging. All output states, voltage, and current information are transmitted via the CAN bus to an in-dash display to inform the driver about potential problems. All logged data can be downloaded from the device for later analysis. SPECIFICATIONS • Total continuous current of 170 Amps. • Operating voltage: 6-22 V (transient immunity according to ISO 7637) • Temperature range: AECQ-100 GRADE 1, -40 to +125 °C. • 10 x 25 Amp high-side power outputs (with PWM capability). • 6 x 15 Amp high-side power outputs. • 8 x 7 Amp high-side power outputs. • Up to 16 analog inputs. • 24 tri-color LEDs for each power output status. • 2 CAN 2.0 A/B. • 256 MB data logger memory. • Logging frequency up to 500 Hz. • Real-time clock for data stamping. • 3D accelerometer/gyroscope. • Built-in inertia switch for crash detection. • Easy access to CAN bus data (imports and exports). • Internal data processing using logical functions, numbers, timers, and tables. • Custom PID controllers. • Fully customizable logic for each output. • Flexible and intuitive client software. • Dimensions: 131x112x33 mm, weight 385 g. Ecumaster brand products are not shipped to the USA, Canada, or Mexico.
