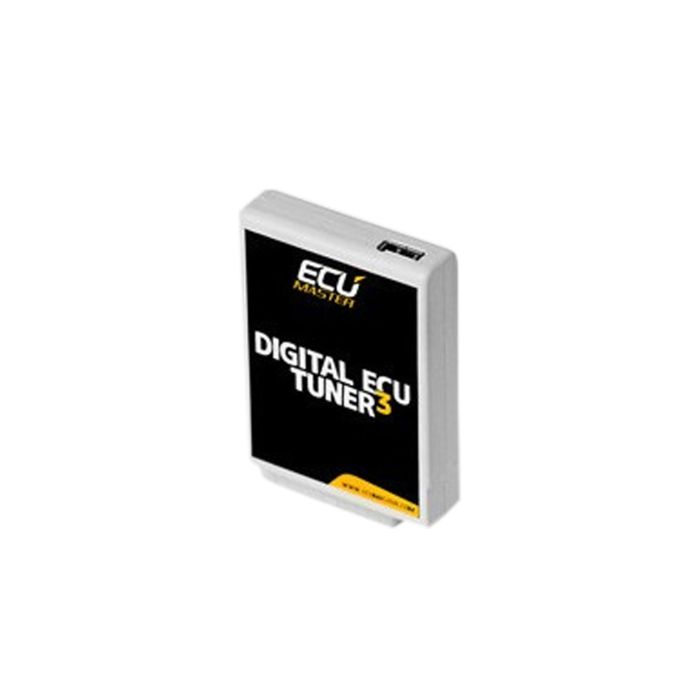

EcuMaster DET 3 + map 4b

Digital ECU Tuner 3 is the successor to the popular Digital Piggyback ECU Tuner 2. Thanks to the use of a more powerful processor and 8 Mb DataFlash, it was possible to significantly expand the device's capabilities. The main changes include support for a USB port, two switchable sets of 4 maps with dimensions 16x16, advanced adaptive ignition input, 4 times more accurate DAC converter, offline logging to DataFlash memory, and many, many more. Device Features: - 4 independent 16x16 maps (fuel map, two PWM maps, ignition map), - 8 16x1 correction maps, - 2 independent and switchable sets of maps, - ability to modify a single analog signal, - 4 analog inputs, - built-in DataFlash allowing logging without a connected laptop, - power supply measurement, - the ability to modify the frequency flow meter signal (17Hz-4kHz), - ignition signal service using inductive, Hall, and optical sensors as well as signals controlling the ignition module. The device supports both single-ended and balanced (differential) signals, - support for many ignition types: 60-2, 36-2, 36-1, Multitooth, Ignition Modules, - operation of the turbocharger/supercharger control valve, - support for 4 high-resistance injectors (working in the "full group" system), - parametric ON/OFF output, - automatic conversion of MAP to MAF using a learning algorithm, - launch procedure, road dyno, - ability to calibrate any analog sensor, so that analog values can be displayed in their real values (e.g., MAP sensor signal in bars, wideband probe signal as AFR, etc.), - possibility of free firmware updates as the device develops (e.g., new ignition modes, additional functions), - communication with the device is done via the USB connector - 24-month warranty for the device Hardware Requirements: The following minimum configuration is required for proper cooperation with the device: - Windows 2000, XP, Vista, Windows 7 - Screen resolution of at least 1024x768 16 bit, - Processor with a clock speed of at least 600 MHz, - USB port The set includes: - Digital Ecu Tuner 3 device, - USB AA cable, - Plug and pin set for the plug, - CD with software, drivers, and user instructions in Polish, - An additional set of resistors and a rectifier diode useful for device installation. Ecumaster brand products are not shipped to the USA, Canada, or Mexico.
