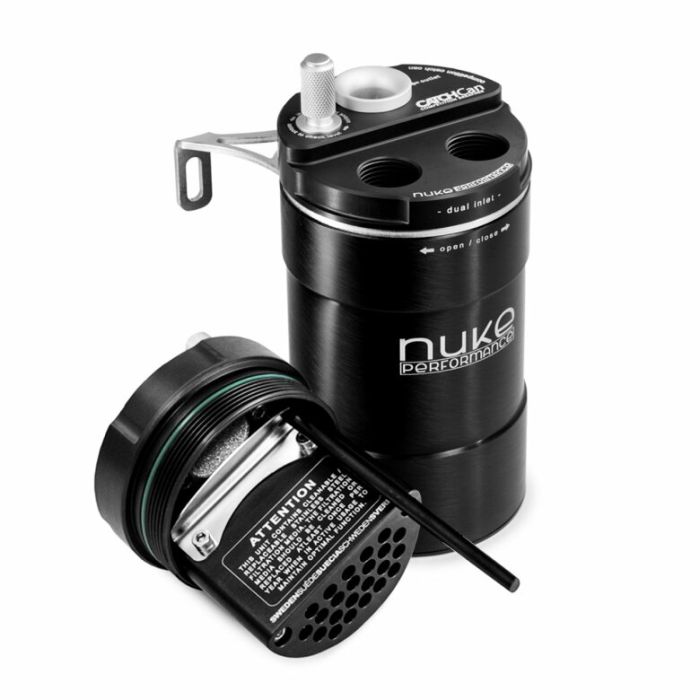

Nuke Performance Competition Oil Catch Can, 0.5 Litre

Nuke Performance Universal Dual Inlet Oil Catch Can. Available in both 0.5- and 1.0-liter versions, both with the unique dual filtration system.

Universal Dual Inlet Oil Catch Can with a unique dual filtration design. Now equipped with twin AN-10 ORB inlets for easy adaptation and installation. Dual filtration breather for racing and motorsports use, as well as for street use and tuning. Compatible with atmospheric and recirculating systems.
Twin AN-10 inlets, choose between single or dual inlet. Stainless steel filtering media. Made in Sweden. 300-micron stainless steel filtered outlet. Anodized dipstick for easy internal level reading. Now with AN-10 ORB, for the largest possible flow.

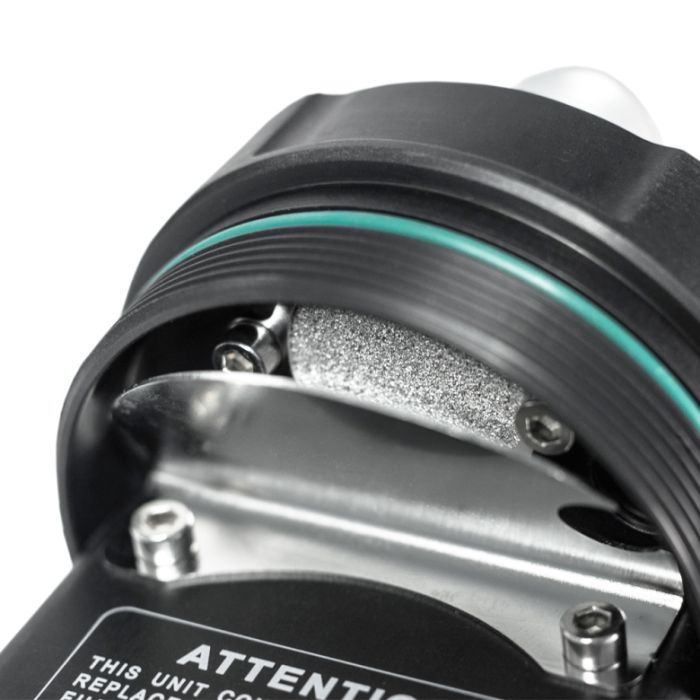

Billet internal filtration unit - rigorous filtration. The unique internal billet filtration unit, in combination with our recessed 300-micron filter disc, provides extremely rigorous filtration of crankcase gases. The unit includes a stainless steel filter media that maximizes condensation of impurities present in the gases with minimal to no flow loss. The filter media is replaceable and washable, and sold as a spare part if needed.

300-micron filter disc - no external filters needed. Equipped with our unique 300-micron filter disc that prevents particles from escaping the catch tank, this filter disc is used in both atmospheric and recirculating systems. The Competition Dual Inlet Oil Catch Can offers maximum filtration thanks to its 300-micron filter disc with integrated surge protection at the outlet. This is the first oil catch can that can be used in both atmospheric and recirculating systems without the need for an external filter.

The oversized chamber, without additional baffles, allows gases to flow freely inside. Additionally, the available outlet connection options allow choosing between atmospheric and recirculating systems without the need for an external filter. To meet our customers' needs for maximum flow and easy access to various connections, we now offer our oil catch cans with AN-10 ORB threads, ready to use and available in a wide variety of connections. Additional AN-10 ORB to AN-6, AN-8, AN-10, and AN-12 adapters are sold separately as accessories. AN-10 ORB plug, Part Number: 700-04-117 * AN-10 ORB to AN-6 male adapter, Part Number: 700-01-108 * AN-10 ORB to AN-8 male adapter, Part Number: 700-01-109 * AN-10 ORB to AN-10 male adapter, Part Number: 700-01-110 * AN-10 ORB to AN-12 male adapter, Part Number: 700-01-111 * Used for single inlet configurations and blocks the additional inlet port.

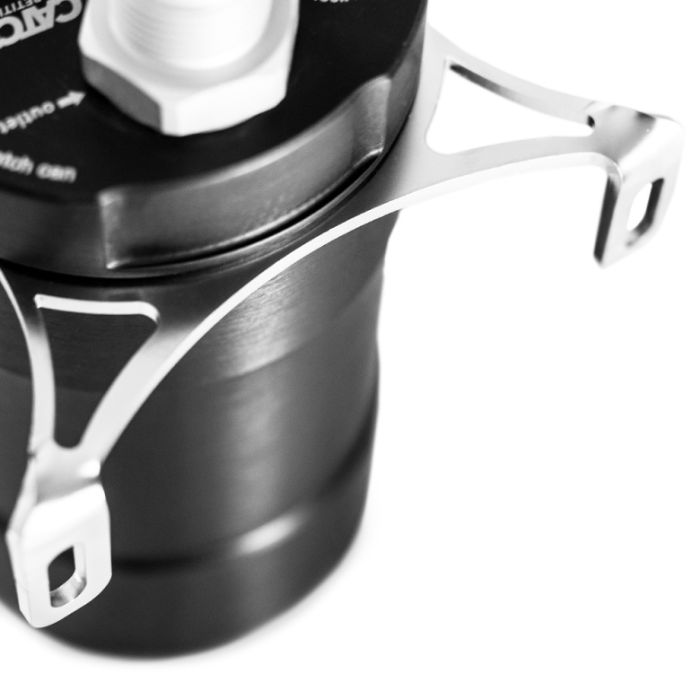

Developed to meet the high demands of motorsports. The Competition Catch Can is available in two sizes: 0.5 liter and 1.0 liter (1.06 quarts). The 1.0-liter version exceeds US motorsports regulations, which require a capacity of 1 quart. For perfect mounting, we include a stainless steel bracket with continuous 360-degree rotation. Our oil catch cans have been developed in collaboration with motorsports teams worldwide, and are designed to perform in any condition and at any power level.

Optional "peacock" drain kit available for quick draining. Draining is facilitated with the optional "peacock" valve, which connects to the 1/4" drain thread at the bottom. Includes a 1/4" peacock valve that installs directly into the bottom of the oil catch can. Route the included 2m (6ft) hose to an easily accessible location, such as the fender. This makes draining and collecting debris easy without having to disassemble the tank from the vehicle. Drain kit for oil catch can. Part Number: 265-10-101

Made in Sweden, ensuring the highest quality. Developed, designed, and manufactured in Sweden by Nuke Performance. This product is of the highest quality and bears the same hallmark as the entire range of lightweight motorsports components from Nuke Performance. This guarantees maximum quality: Nuke Performance quality is unmatched.

Specifications of the 0.5-liter Competition Oil Catch Can. For more information on specifications, please contact us directly.

Oil catch can capacity:

0.50 liters (0.53 qt)

Inlet ports/threads:

2 x AN-10 ORB

Outlet port/thread:

1 x AN-10 ORB

Filtered outlet port
YES, 300-micron filter disc

Internal filtration
YES, stainless steel filter media

Drain port/thread
1 x 1/4 BSPP, plug included

Bracket included
YES, 360° rotating stainless steel bracket

Dipstick
YES, aluminum dipstick included

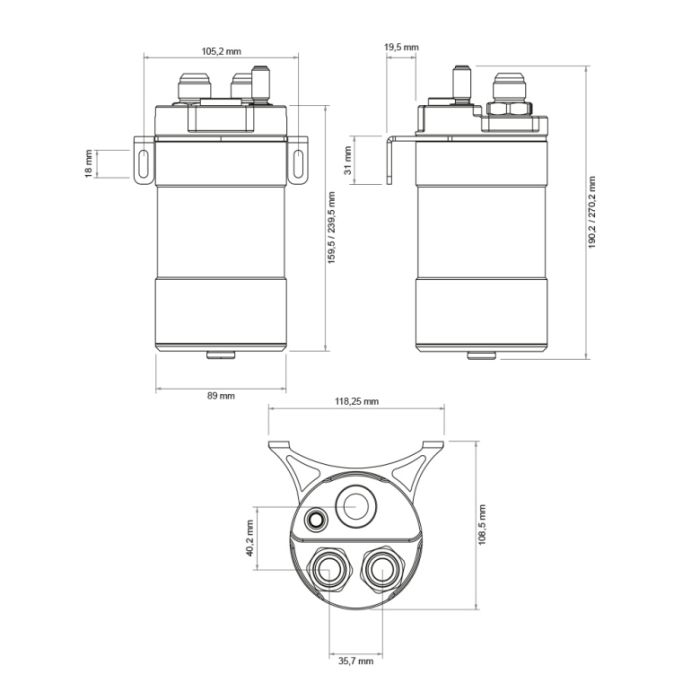

Height*

159.5 mm (6.28")

Width

89 mm (3.50")

Depth

108.5 mm (4.27")

Weight*

1200 g (2.64 lb)

Available configuration
Recirculation / atmospheric use

Part No.

260-01-202

EAN
7340209501339

Nuke Performance Competition Oil Catch Can 0.5. Includes: 1 x 0.5-liter (1.0-liter) oil catch can. 1 x 360° rotating stainless steel bracket 1 x AN-10 7/8 UNF atmospheric trumpet (for atmospheric use) 1 x 300-micron filter disc for the outlet port 1 x Billet internal filtration unit with stainless steel filter media 1 x 1/4 BSPP plug
