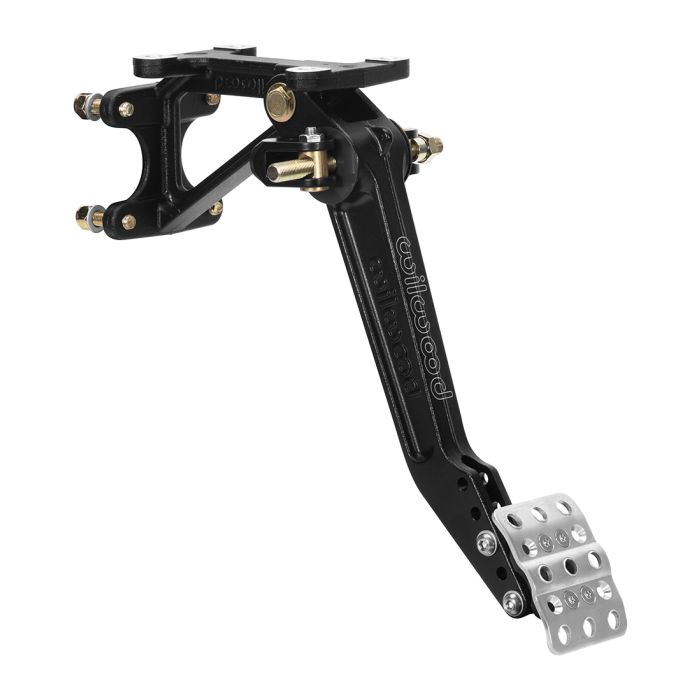

Wilwood 340-16379 Swing Mount Brake and Clutch Pedal 6.25-7:1 Dual M/C

Brake pedal with adjustable ratio balance bar, in a forward swinging suspension assembly. The pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for increased sensitivity or reduced pedal effort. Two brake master cylinders are mounted on the assembly through the firewall, with an adjustable balance bar allowing for fine-tuning of braking distribution between front and rear. The non-slip pedal pad can be adjusted laterally 1/2 inch in either direction for driver preference. The pedal features a lightweight aluminum frame, with a high-strength reinforced I-beam style forged pedal arm. The balance bar incorporates a positive detent stop at each full turn to maintain the adjustment position and can be locked in place with the included locknut, or used with an optional remote knob for quick on-track adjustments. A clevis and pin pushrod attachment system ensures the smallest possible misalignment angle for jam-free operation throughout the range of travel. This pedal accepts two Wilwood single-outlet master cylinders with a 2.25-inch vertical mounting flange, available separately in a variety of styles and bore sizes.
