PRODUCT DESCRIPTION
Product details

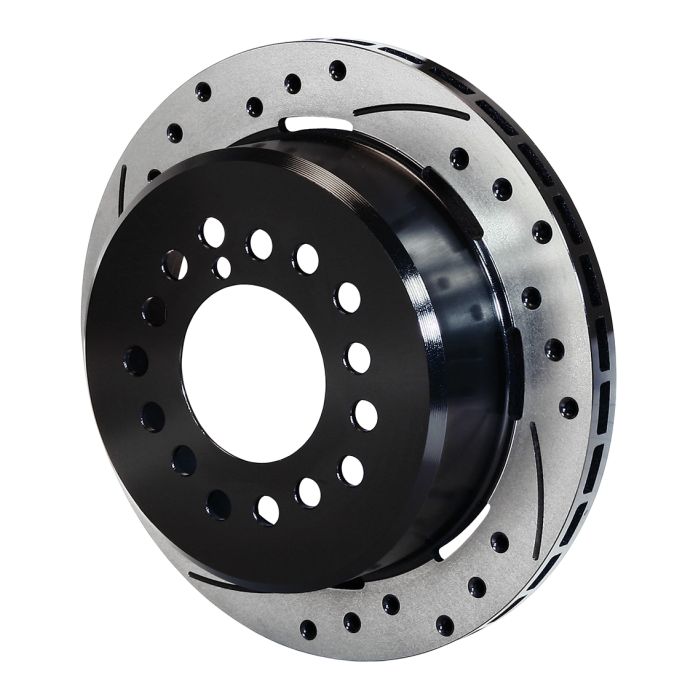

High-Performance SRP Drilled Brake Rotors and Assemblies
For custom, show, and high-performance sport vehicles, SRP rotors deliver high-tech appeal and superior performance with their directional cross-drilled and surface slot design. Beyond their aesthetic appeal, the ventilation and cleaning action of these rotors help reduce pad glazing and minimize irregular pad material build-up on the rotor surface. The result is a smoother engagement feel from the pedal and consistent pad response. Each rotor is precision machined, to a tolerance of less than .001 inch, to ensure optimal flatness, parallelism, and run-out from long-grain carbon iron castings. Rotors feature a black electro-coating for superior corrosion resistance. Performance Features
Rear brake rotor for 11.00" low-profile disc/drum internal parking brake kits.
Rotor has been updated to a new 3.06R register and allows for the use of register ring adaptors.
Ring adaptors are available in 2.00" to 2.86" sizes. See catalog for part numbers.

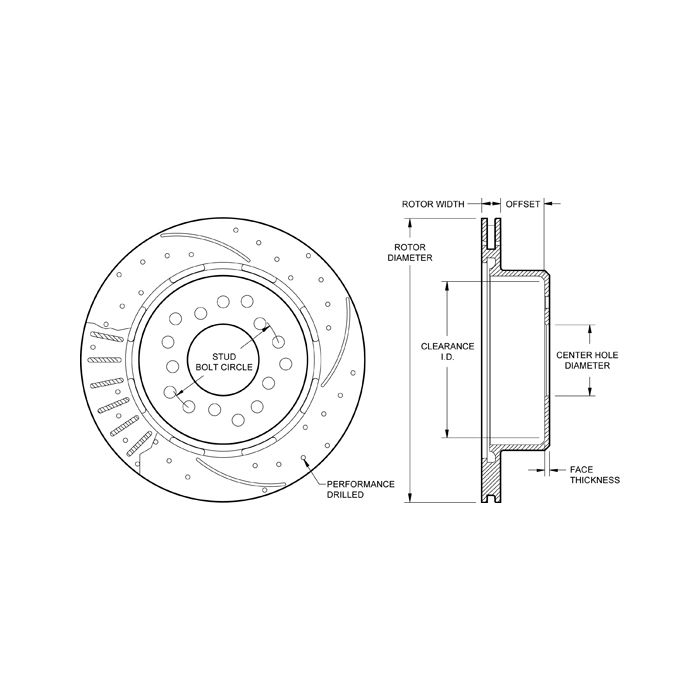

Rotor Dimensions
Width (in)
0.81
Diameter (in)
11.00
Mounting Side
Left
Rotor Design
Material
Iron
Number of Vanes
32 V
Weight (lb)
11.80
Rotor Style & Finish
Type
SRP-BLK
Style
SRP Drilled & Slotted
Surface Finish
Black E-Coat
Rotor Enhancements
Polished
No
Balanced
No
Additional Rotor Dimensions
Inside Bolt Circle (in)
3.06
Opposite Side Inside Diameter (in)
8.38
Offset Dimension (in)
1.910
Shoe Inside Dimension (in)
