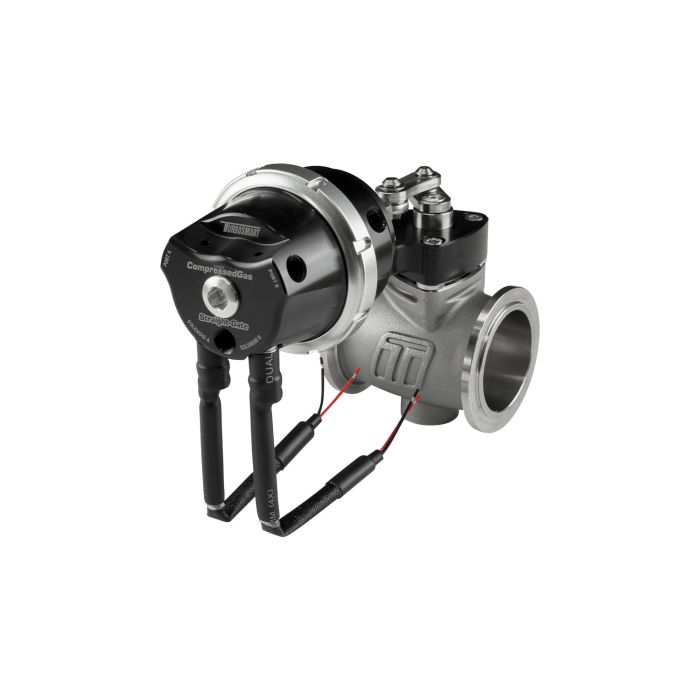

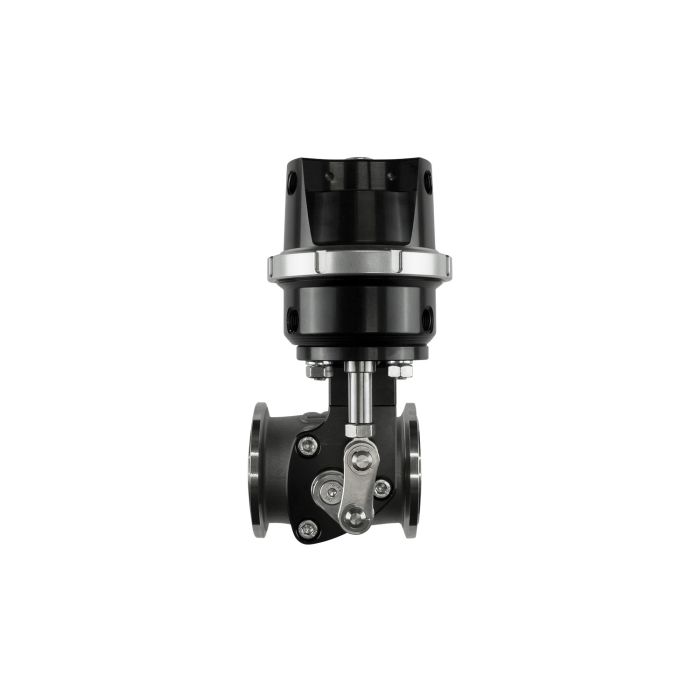

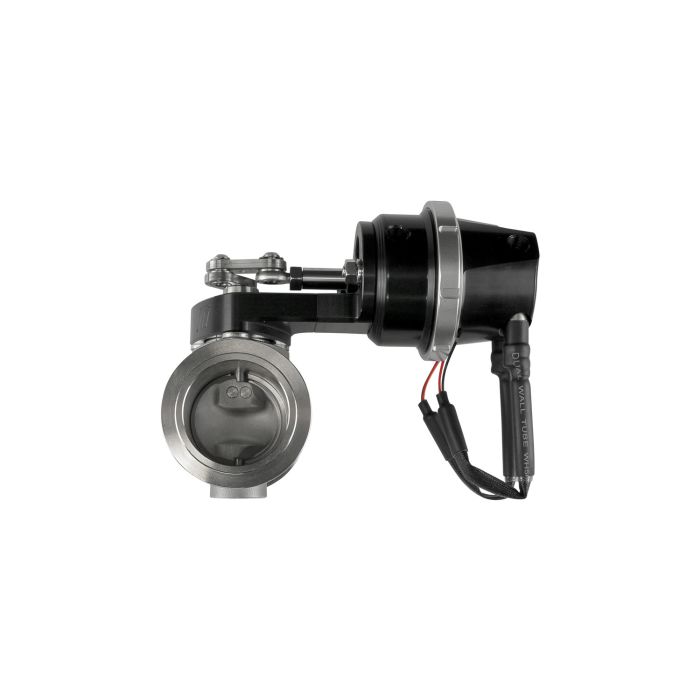

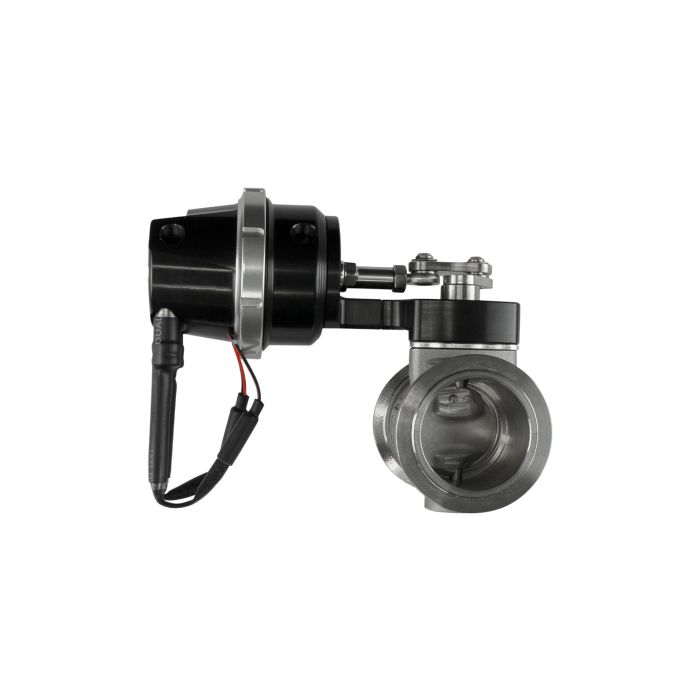

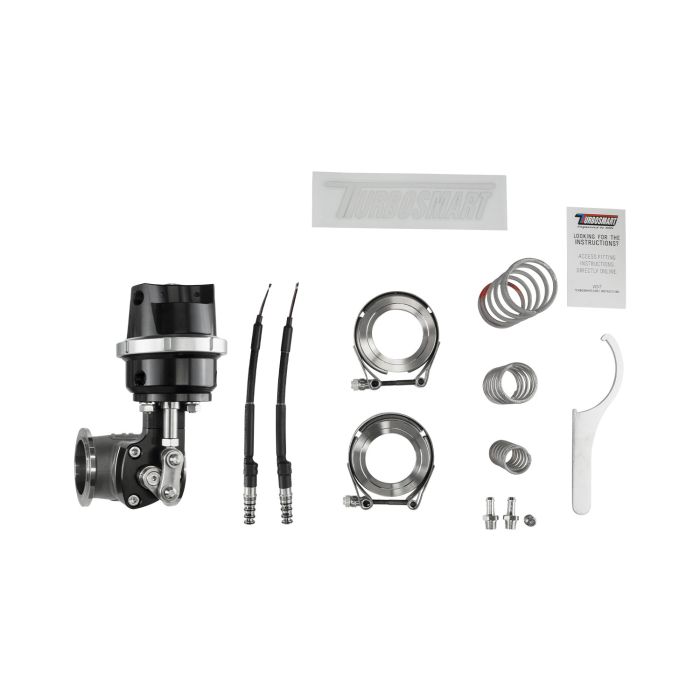

Turbosmart TS-0563-1252 Black StraightGate40 Integrated Solenoid Valve for Compressed Gas, 7 PSI

The StraightGate40 Compressed Gas (Solenoid) wastegate is the world's first external wastegate with integrated boost control, actuated by CO2. Turbosmart has simplified CO2 boost control by integrating the fill and exhaust control solenoids, as well as the dome pressure sensor, directly into the wastegate cap.

Combine this integrated control cap with Turbosmart's multi-award-winning range of StraightGate bodies, and you have the world's highest flowing and easiest-to-use CO2 external wastegates.

Turbosmart's StraightGate wastegate design incorporates a zero-offset, inline butterfly valve that allows for enormous flow and virtually linear control throughout the operating range. This translates into unprecedented boost control for your high-performance applications. The StraightGate compressed gas variants are specifically designed for wastegate control strategies that utilize an external pressure source, such as CO2 or compressed air, to vary the valve's open position. Durability and performance are ensured by a high-pressure, inverted Nomex diaphragm, specifically designed for the high-pressure differentials found in CO2/compressed air boost control strategies.

The integration of electronic control components into the cap is the icing on the cake, simplifying installation to a single regulated pressure line from the CO2 or compressed air source directly to the wastegate cap. This eliminates up to 8 pressure connections and potential failure points in the critical boost control system. Turbosmart's patented in-cap control technology is designed to reduce system errors and maximize response. The StraightGate for compressed gas is designed to win!

Features

Integrated in-cap control technology

Specifically designed for CO2 applications

40mm (1.57in) zero-offset butterfly valve

Flow rate of 217.4 CFM / 6.16 m³ per minute

Stainless steel (630) butterfly and shaft

Stainless steel (347) main body

Heat-treated stainless steel (431) V-band clamps

Aluminum (6262 T6 anodized) bracket and actuator

Exclusive Turbosmart locking collar

Base spring options from 6 psi to 42 psi

Stainless steel (N60) rods and control arm
