Forge Motorsport FMDVRTSI-N Recirculation Valve for Audi Seat Skoda VW VAG 1.4 TSI 180hp

This Forge black valve kit is designed for VAG vehicles equipped with 1.4 TSI twin-charged (supercharged and turbocharged) engines with electronically controlled bypass valves (2-bolt fitting). It is recommended for any vehicle whose boost pressure has been increased by an ECU remap and for un-modified vehicles operating in warmer climates, as a solution to the many failures of the original valve.

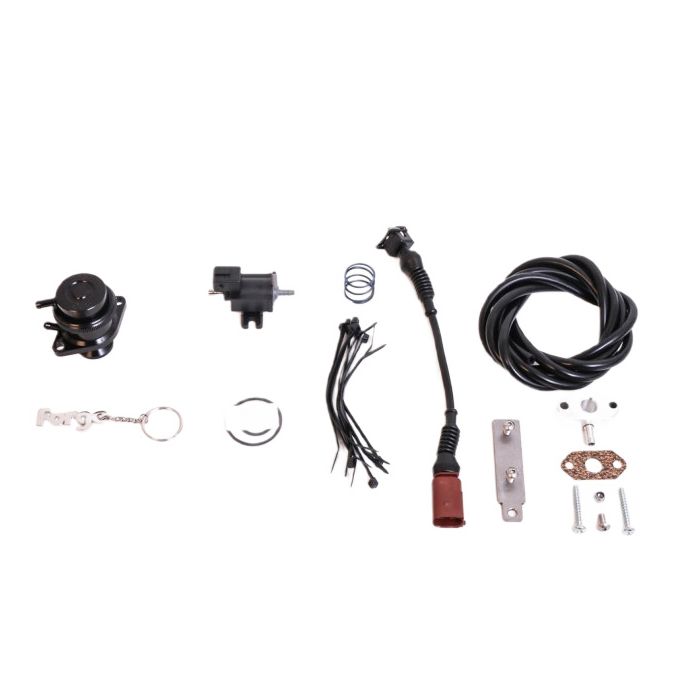

This alternative is an advanced engineered solution offering significantly improved reliability. The valve and installation kit replaces the original unit with a pressure/vacuum actuated piston valve, which also retains the original ECU control over valve actuation. This product has been thoroughly designed and tested with the express aim of offering improved valve response and maintaining ECU control, without generating fault codes, illuminating the check engine light, or producing any adverse effects. All necessary components and detailed instructions are included, and everything is designed to make installation as straightforward as possible. Contents of the box:

1x FMDVRTSI valve

1x Wiring Harness
1x Solenoid, bracket and screws

1x Skoda Vacuum Tap
2x M5 x 35 self-tapping screws
1x Uprated blue spring
10x Cable ties
1x 4mm Vacuum Hose (2000mm length)
1x M5 x 12 Cap Head Screw
1x M5 Nyloc Nut

1x Instruction Manual
1x Forge Keyring and Decal

Vehicle Compatibility:

Audi A1 (8X) (2010-2018) 1.4 Twincharged

Audi A3 1.4 Twincharged

Seat Ibiza Mk4 (6J) (2008-2015) 1.4 TSI

Skoda Fabia 1.4 TSI

Skoda Fabia VRS Petrol

Volkswagen Golf Mk5 1.4S/Charge

Volkswagen Golf Mk6 1.4 Twin Charged

Volkswagen Polo 1.4 TSI

Volkswagen Polo 1.4 Twin Charged

Volkswagen Scirocco 1.4 Twin Charged 160
