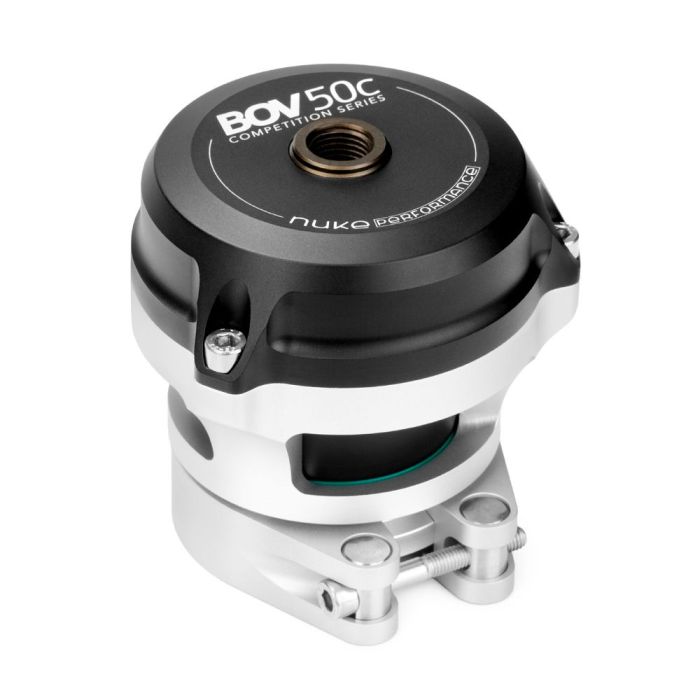

Nuke Performance BOV50c blow-off valve with V-band

The Nuke Performance second-generation blow-off valve, featuring cutting-edge functionality and even faster response. Maximum flow capacity and unmatched performance.

The BOV50c is the upgraded version of the classic Nuke Performance blow-off valves. It utilizes the same flange as its predecessor, allowing for a quick and simple swap without the need to modify intake piping. Its 50mm (1.97") valve and upgraded diaphragm ensure rapid response and precise pressure release.

- Improved reinforced diaphragm technology - Rapid response and precise pressure release - Includes machined aluminum V-Band clamp and flange - 1/4 BSPP top vacuum port - Interchangeable adjustment spring, compatible with power levels from 250 to 1600+ hp - Lightweight blow-off valve for motorsport installations

Equipped with a low-friction valve guide, the BOV50c V-Band blow-off valve offers extremely fast response and is ready to handle high boost and power. We believe this upgraded version of the popular first-generation blow-off valve has the highest flow capacity for an atmospheric blow-off valve.

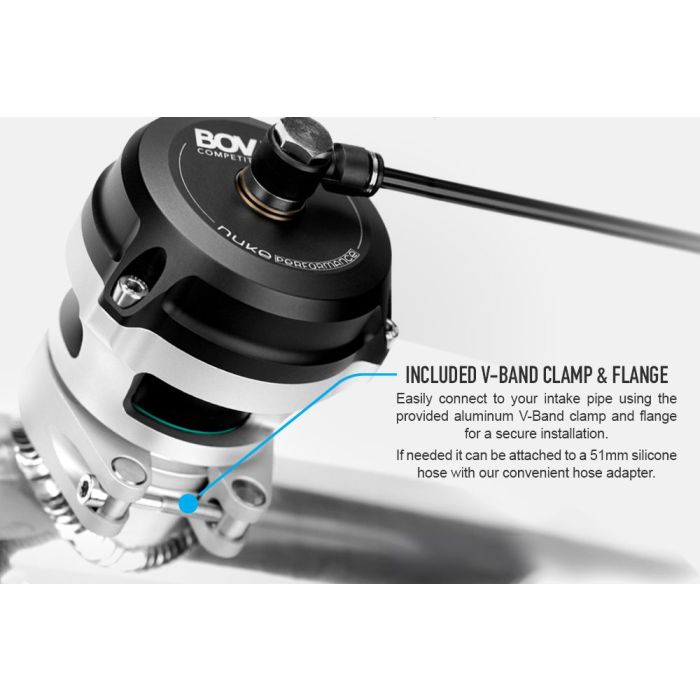

Easy to connect to the intake pipe with the included V-Band flange and clamp, ensuring a secure installation even when pushing the engine to the limit. The Nuke Performance BOV50c V-Band blow-off valve includes a machined aluminum V-Band clamp and a weldable aluminum flange. This ensures a secure installation, even when demanded to the limit.

The 60mm aluminum V-Band clamp and flange are included. Optional 51mm (2") hose connector available: adapt the V-Band to your silicone hose.

If needed, we have a stainless steel flange available, as well as a 51mm (2") hose adapter that allows the blow-off valve to be mounted to a silicone hose without the need for welding or custom fabrication. Spare aluminum V-Band flange: Part No: 910-02-101. Stainless steel V-Band flange: Part No: 910-02-102. Spare 60mm aluminum V-Band clamp: Part No: 910-02-101. 51mm hose adapter for BOV50c: Part No: 920-05-101.

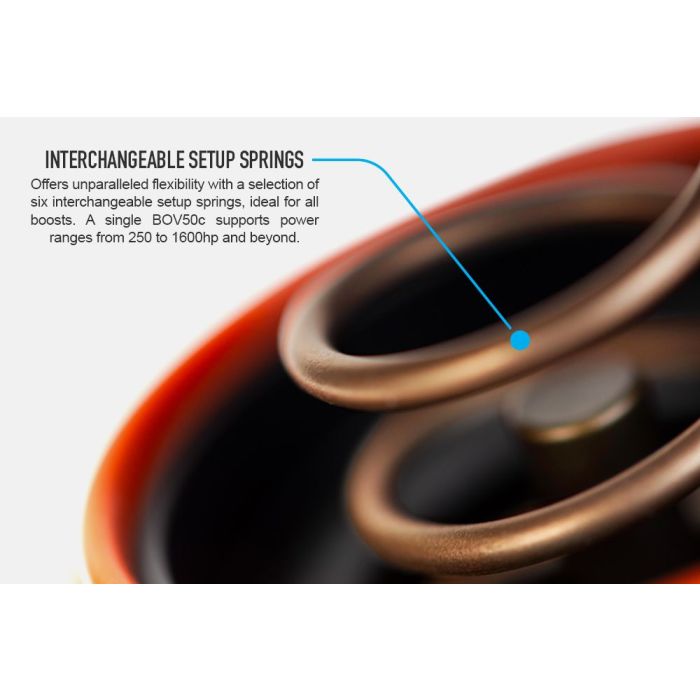

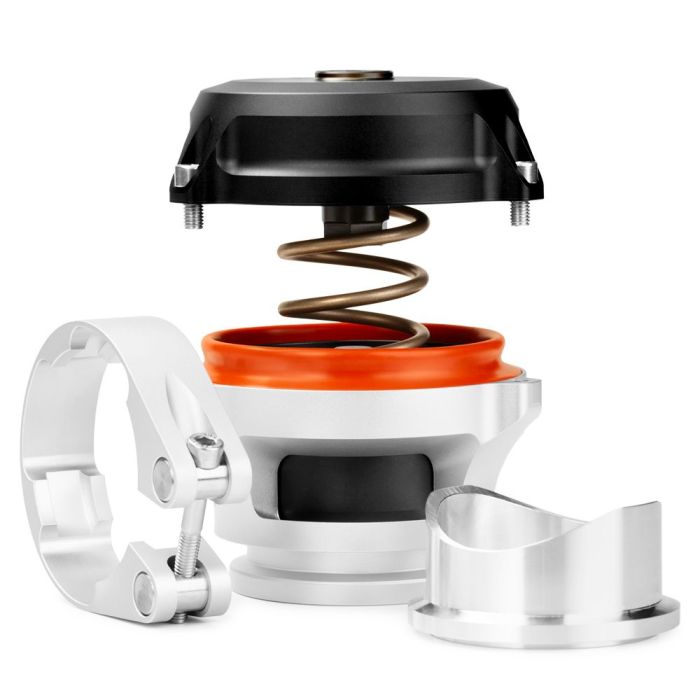

Ideal for any boost pressure level, thanks to its adaptability with a wide selection of interchangeable adjustment springs that suit your specific needs. The Nuke Performance BOV50c V-Band blow-off valve offers unmatched flexibility. A selection of six interchangeable adjustment springs, ideal for all boost pressures. The BOV50c includes a pre-installed blue spring, and changing to another spring is very simple thanks to its three-bolt design.

* The BOV50c comes equipped with a pre-installed blue spring.** Only for supercharger applications.

Select the BOV spring pressure based on the engine's vacuum reading at idle, once the engine has reached its ideal operating temperature. Boost pressure is not related to spring pressure; it depends solely on vacuum. The lowest stiffness spring (light grey) is designed specifically for superchargers and is not suitable for turbochargers. BOV50c Light Grey Spring Part No: 9200-01-016. BOV50c Green Spring Part No: 9200-01-017. BOV50c Magenta Spring Part No: 9200-01-018. BOV50c Blue Spring Part No: 9200-01-019. (Pre-installed) BOV50c Red Spring Part No: 9200-01-020 BOV50c Black Spring Part No: 9200-01-021

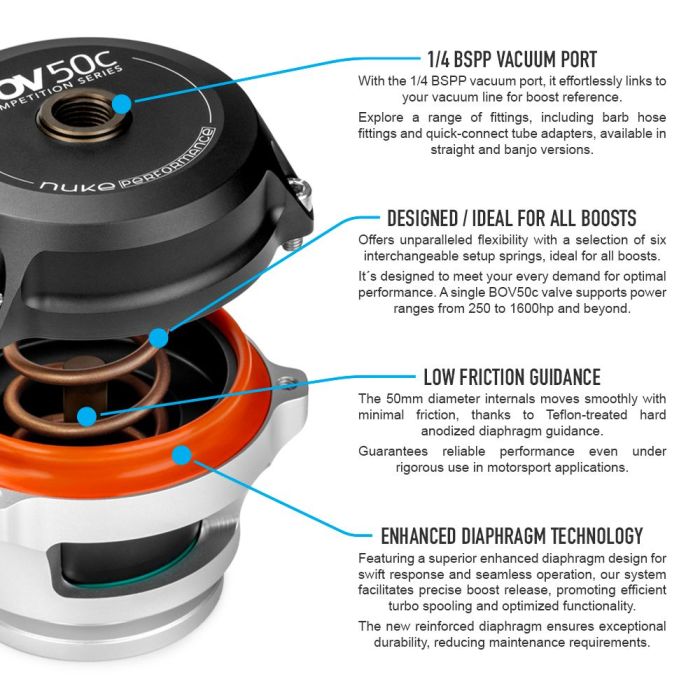

The BOV50c uses upgraded diaphragm technology and a low-friction valve guide to ensure rapid response and flawless operation for any requirement between 200 and 1600+ hp. The 50mm diameter valve moves smoothly with minimal friction, thanks to the hard-anodized, Teflon-treated diaphragm guide. This ensures reliable performance even under rigorous use in motorsport applications.

A single BOV50c supports between 200 and 1600+ hp.

The Viton seal, together with the new superior upgraded diaphragm of the Nuke Performance BOV50c V-Band blow-off valve, offers unmatched rapid response and flawless operation that promotes efficient turbo response and maximum performance. The new reinforced diaphragm ensures exceptional durability, reducing maintenance requirements.

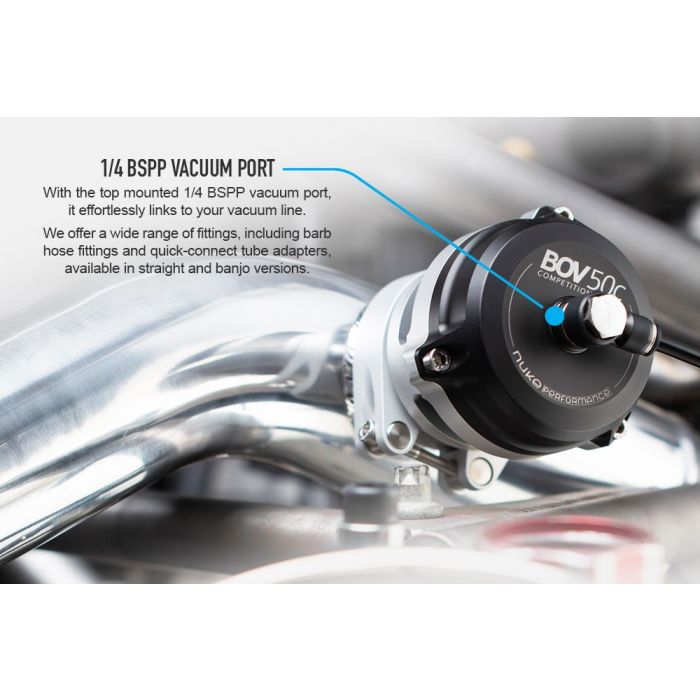

Top-mounted. The 1/4 BSPP vacuum port gives you endless possibilities for connecting the blow-off valve to your vacuum line. With the 1/4 BSPP vacuum port mounted on the top, it connects effortlessly to your vacuum line for pressure reference. We offer a wide range of fittings, including barbed hose fittings and quick-connect tube adapters, available in straight and banjo versions. To ensure precise functionality according to our specifications, we recommend using a 6mm inner diameter hose or tube. 1/4 BSPP Banjo quick-connector for 6mm tube Part No: 300-10-119 1/4 BSPP Banjo quick-connector for 8mm tube Part No: 590-10-104 1/4 BSPP Straight quick-connector for 6mm tube Part No: 300-10-103 1/4 BSPP Straight barbed connector for 4mm hose Part No: 300-10-113 1/4 BSPP Straight barbed connector for 6mm hose Part No: 300-10-1111 1/4 BSPP Straight barbed connector for 8mm hose Part No: 300-10-110

What is the function of a blow-off valve and how does it work? An atmospheric blow-off valve (like the Nuke Performance BOV50c) releases boost pressure into the atmosphere when the throttle is closed, preventing compressor surge and ensuring the longevity of the turbocharger. A blow-off valve is essential for the lifespan of the turbocharger, but it also plays an important role in improving performance. By releasing excess pressure, the blow-off valve prevents compressor surge and reduces lag by allowing the turbocharger to spin more quickly when the throttle is reopened.

The necessary vacuum reference "senses" the closing of the throttle, which causes the valve to open and release excess pressure. The Nuke Performance BOV50c uses an oversized 1/4" BSPP vacuum port, which ensures an accurate and rapid vacuum reading.

Designed and developed in Sweden, ensuring the highest possible precision. Quality and performance. Developed and designed in Sweden by Nuke Performance. The Nuke Performance BOV50c V-Band blow-off valve is of the highest quality and represents the exceptional standards characteristic of all Nuke Performance lightweight motorsport products. The BOV50c has been developed in collaboration with motorsport teams from around the world, ensuring that this second generation outperforms the first and meets the most demanding standards, and even sets a new standard.

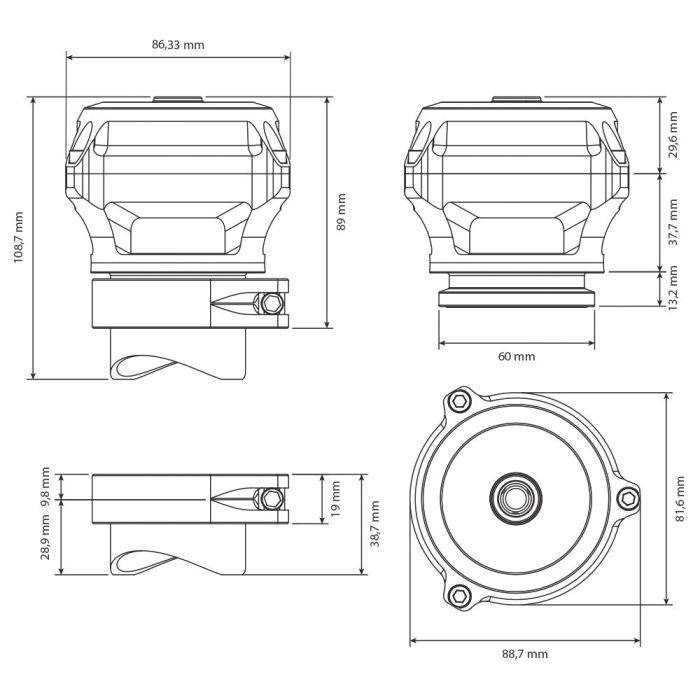

BOV50c V-Band blow-off valve specifications: For more information on specifications, please refer to the product sheet.

Connection:
V-Band (aluminum clamp and flange included)

Internal design:
50mm valve with reinforced diaphragm

Vacuum port thread:
1/4" BSPP

Pre-set installed spring:
-0.53 to -0.65 BAR (-16 to -19 inHg)

Height:
78.7 mm (3.09") *

Diameter:
81.6 mm (3.21") *

Weight

435 g (15.34 oz) *

For motorsport use
YES

Replaces old part no.

900-01-201 / 900-02-201 **

Part No

920-01-101

EAN
7340209507454

* All measurements without the included V-Band flange and clamp. ** First-generation BOV50, V-Band and hose connection versions.

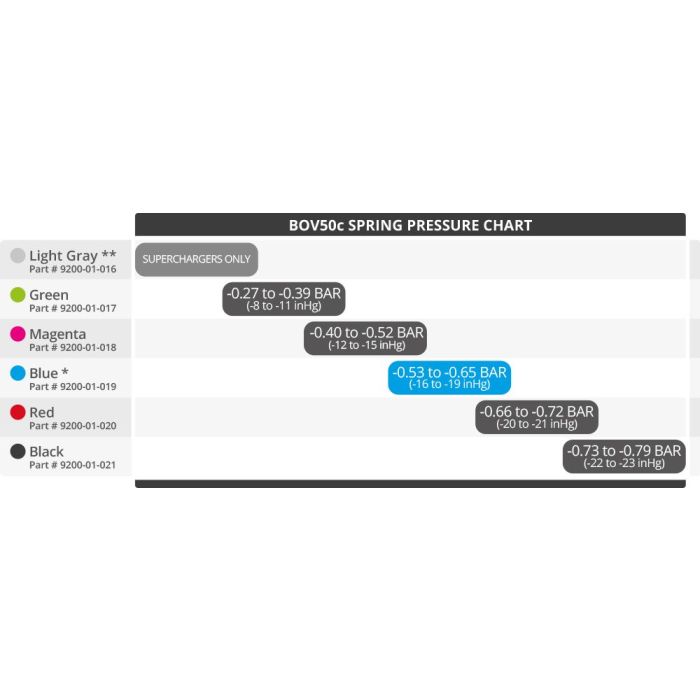

BOV50c spring pressure table: Measure engine vacuum at idle and with the engine at operating temperature.

Only for superchargers

Light grey spring no. 9200-01-016 **

-0.27 to -0.39 BAR (-8 to -11 inHg)

Green spring no. 9200-01-017

-0.40 to -0.52 BAR (-12 to -15 inHg)

Magenta spring no. 9200-01-018

-0.53 to -0.65 BAR (-16 to -19 inHg)

Blue spring no. 9200-01-019 *

-0.66 to -0.75 BAR (-20 to -21 inHg)

Red spring no. 9200-01-020

-0.73 to -0.79 BAR (-22 to -23 inHg)

Black spring no. 9200-01-021

* The BOV50c valve is delivered with a pre-installed Blue spring** used only for supercharger applications.
