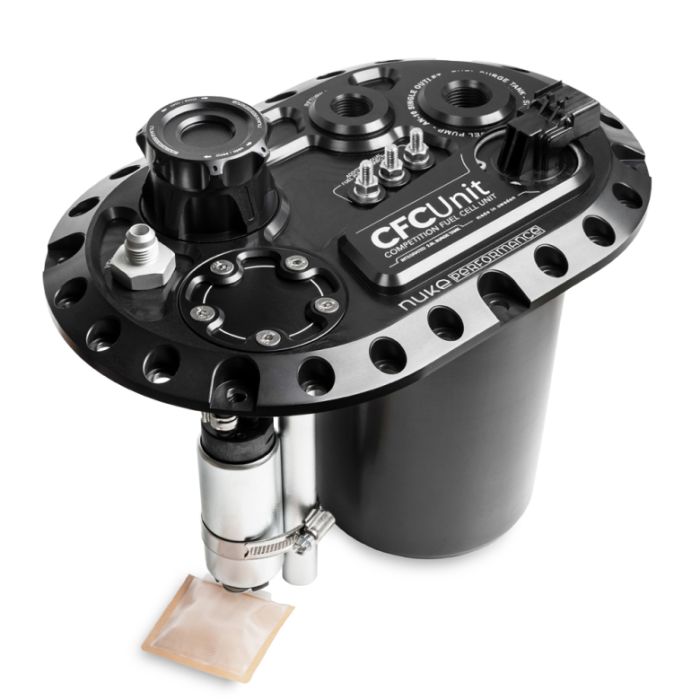

Nuke Performance CFC Unit for Brushless Fuel Pumps, Competition Fuel Cell Unit with Integrated Fuel Surge Tank.

The Nuke Performance CFC Unit, specially developed for use with brushless fuel pumps such as the Protec Cobra Compact and Deatschwerks DW440 Brushless. Includes integrated fuel surge tank and pump bracket.

The Nuke Performance CFC Unit, specially developed for use with brushless fuel pumps such as the Protec Cobra Compact and Deatschwerks DW440 Brushless. Includes integrated fuel surge tank and pump bracket.

Compatible with your standard aftermarket fuel cell.

For brushless fuel pumps with additional venturi pickup.

Lightweight and easy-to-install surge tank for your fuel cell.
Integrated 2.0-liter fuel surge tank functionality.
Single AN-10 ORB outlet for hassle-free installation.
100% compatible with all types of fuel, including ethanol.

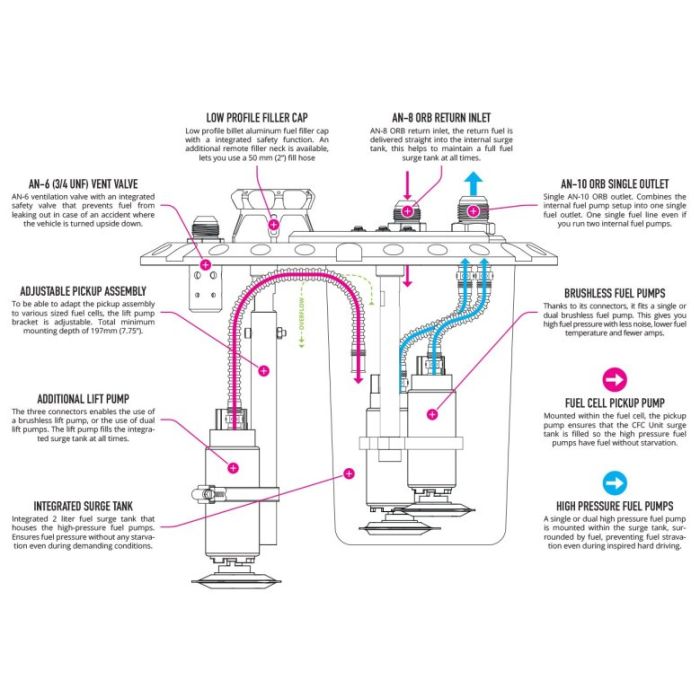

The Nuke Performance CFC Unit removes the need for an external surge tank, also necessary for fuel cell operation, making it the perfect solution for fuel injection systems. Used with PWM control in combination with the CFC unit, it prevents overheating when operating numerous fuel pumps. This is the best way to eliminate fuel starvation that might occur in motorsports. Also, thanks to the new design allowing for brushless fuel pump installation, it is also possible to mount Venturi pickup points ensuring a full surge tank even at extremely low fuel levels. Integrated 2-liter surge tank with machined fuel pump bracket for 1 or 2 brushless fuel pumps.

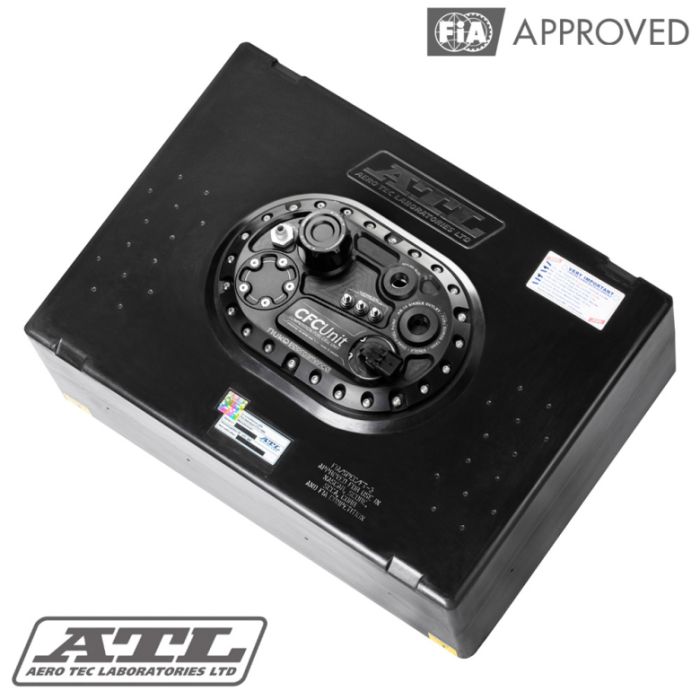

The unique Nuke Performance CFC Unit works as a fill plate replacement for fuel cells with standard 6x10" 24-bolt fill plates from manufacturers like ATL, Premier, Pyrotect, Fuel Safe, Radium, etc. The CFC Unit for brushless fuel pumps is the perfect solution for a high-performance, simplified, and efficient fuel system, where safety is paramount. Thanks to the integrated surge tank, this setup removes the need for a bulky external surge tank.

The lightest solution for your racing fuel system.

Compatible with most FIA-approved fuel cells.

With all necessary fuel pumps mounted inside the tank itself, this product is all you need. The simplicity of its design frees up space and weight, while also increasing safety as fewer fuel line connections are required and no external fuel pumps are used. With its unique machined low-profile design, it is the lightest solution. Market-leading solution saving crucial weight in your race car.

Nuke Performance CFC Unit specifications for brushless fuel pumps

High-profile CFC Unit Part Number:

150-05-204

Minimum mounting depth:

197 mm (7.75”)

Mounting bolt pattern:
6x10" (24 bolts)

High-pressure fuel pump connector:
6-pin bulkhead connector

- Connection points:
6 (max 30 amps each*)

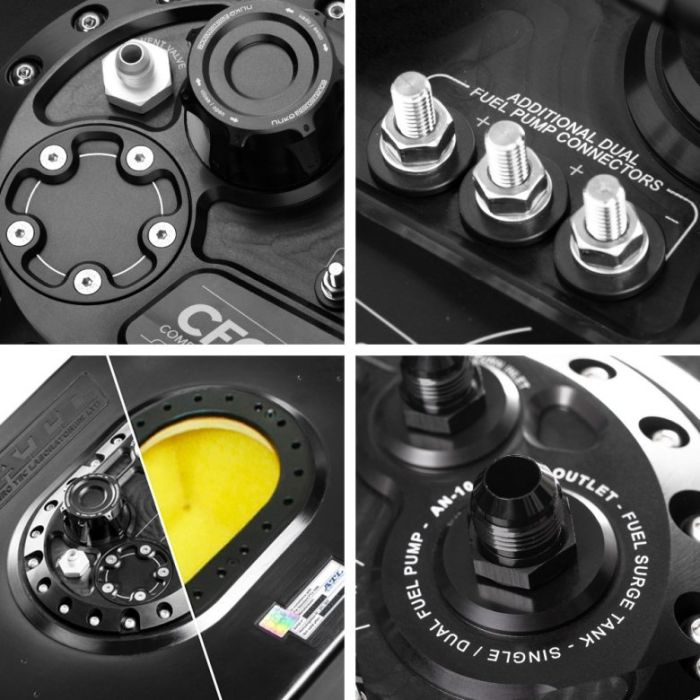

Pickup fuel pump connector:
6mm stud connector

- Connection points:
3 (max 125 amps each*)

Length:

295 mm (13.74”)

Width:

194 mm (9.88”)

Weight:

2254 g (4.96 lbs)

Compatible with lift fuel pumps:

1 brushless fuel pump (2 brushed)

Compatible with high-pressure pumps:
2 brushless fuel pumps

Fuel compatibility

Gasoline, Methanol, Ethanol, E85

Compatible with additional venturi lift kit

YES - compatible with 1 or 2 additional venturi kits

Internal surge tank volume

Approximately 2.0 liters (0.53 gallons)

Outlet port, thread

AN-10 ORB

Return port, thread

AN-8 ORB

Vent valve, thread

AN-8 (3/4 UNF)

Vent valve connector included

AN-8 (3/4 UNF) to AN-6 Male

For motorsports use

YES

* For reference only

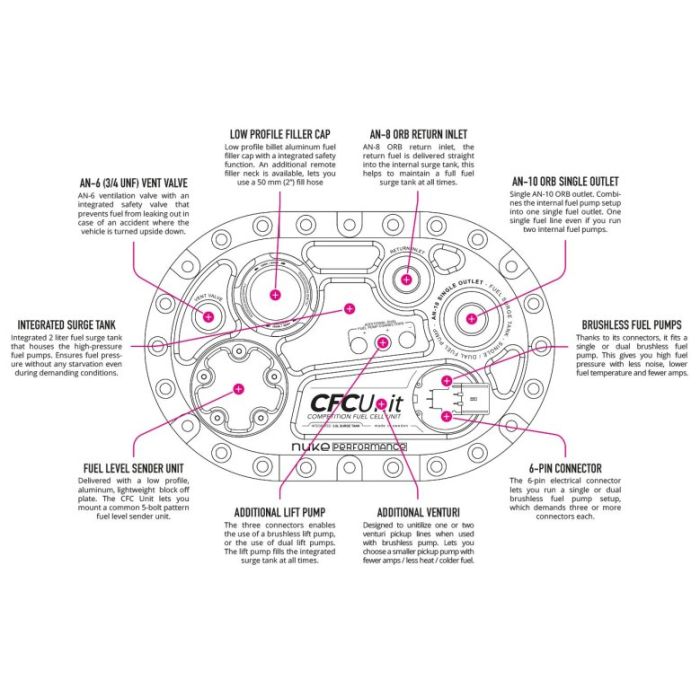

High-profile CFC Unit for brushless fuel pumps includes:

1 Nuke Performance CFC Unit - high-profile version for brushless fuel pumps

1 Delphi 6-pin bulkhead connector with Viton O-ring

2 female electrical connectors with 6 connection pins each

2 1/4" BSPP to male 8mm hose connectors

1 1/4" BSPP plug, for use with a single high-pressure fuel pump

2 39mm inserts for the high-pressure fuel pump bracket

2 42mm inserts for the high-pressure fuel pump bracket

1 Viton gasket for fuel cells with 24-bolt pattern (suitable for alcohol fuels)

1 low-profile filler cap (remote filler neck available as an accessory)

1 machined aluminum dual fuel pump bracket and adjustable pickup pump bracket

1 AN-8 (3/4 UNF) to AN-6 male vent safety valve

1 FLS spacer, for fuel level sensors with an asymmetrical bolt pattern

24 1/4-28 UNF x 1 screws with nylon washers

No modification required before installation

The new high-profile version of the Nuke Performance CFC unit requires no modification to an ATL or Fuel Safe fuel cell before installation.

CFC units do not include fuel pumps.
