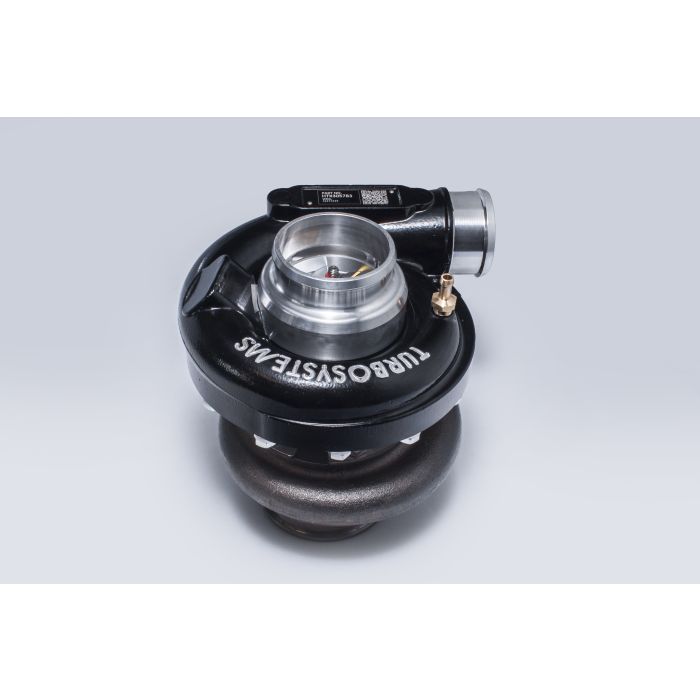

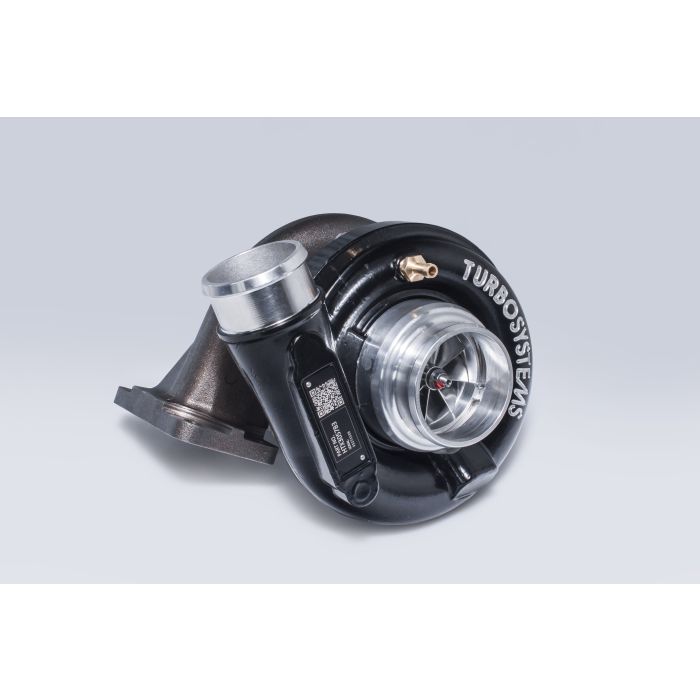

TurboSystems HTX3057B3 Turbocharger

High-performance turbocharger with twin-scroll 12 cm² turbine housing and 0.89 A/R, designed for heavy loads and high temperatures. Two air outlet options on the compressor side: 90° and straight for easier connection. Its ceramic dual ball bearing and compressor wheel machined from solid aluminum make it a durable and efficient solution for competition use.

Power range: 450-550 hp;

Compressor side:

Compressor housing with optimized cover;

Compressor wheel: internally manufactured, reinforced, 57/71 mm, with 9+0 blades machined from solid aluminum;

Intake:

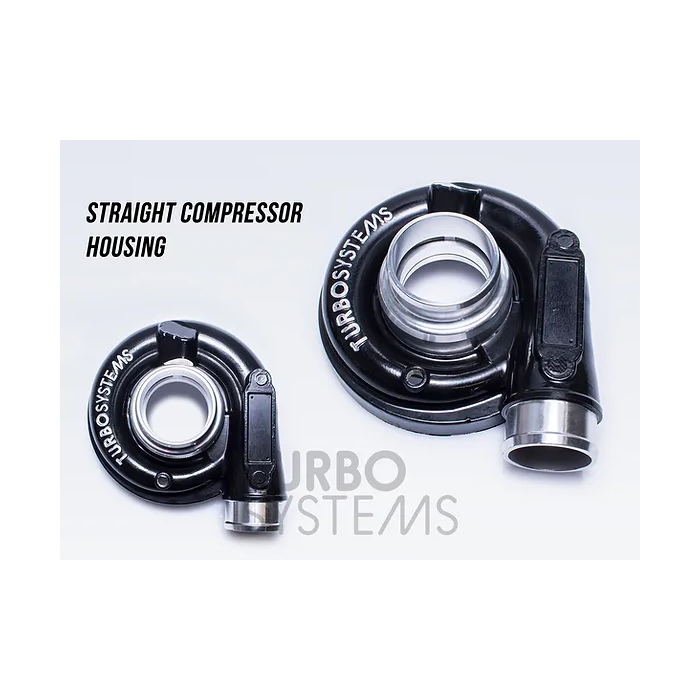

Straight compressor housing: 63 mm (2.5");

Compressor housing with 90° elbow: 76 mm (3");

Air outlet: 51 mm (2");

Core:

Bearings: dual ceramic ball bearings;

Cooling: water cooling with 2 M14x1.5 ports;

Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine side:

Housing: twin-scroll, 12 cm² A/R: 0.89;
Turbine wheel: custom 60/55 mm design with 9 blades;

Flange: 3" twin-scroll T3;
Exhaust connection: 3" V-band clamp;

Includes V-band clamp and oil drain flange
