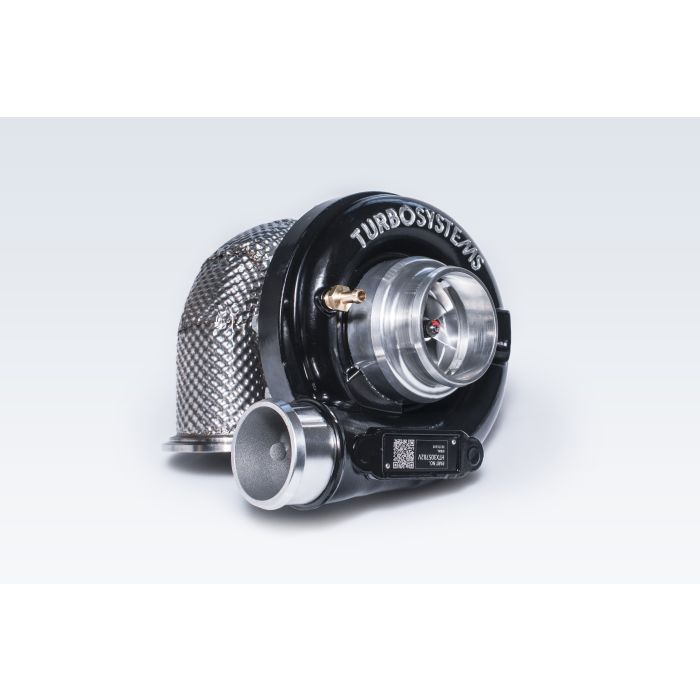

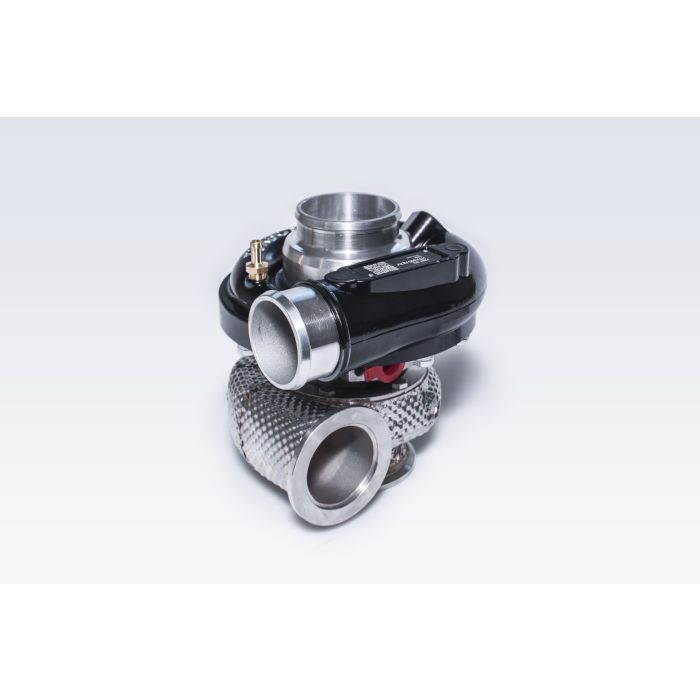

TurboSystems HTX3057B2V turbocharger, 90-degree air outlet.

Same specifications as the HTX3057B2, only the turbine flange is replaced with a 2.25" V-band connection.
High-performance turbocharger designed for heavy loads and high temperatures. Two compressor-side air outlet options: 90° and straight for easier connection. Double ceramic ball bearings and a solid billet aluminum compressor wheel, making it a durable and efficient solution for competition use.

Power Range: 400-500+ HP;

This turbocharger includes 2 sets of V-bands (for turbine flange and exhaust).

Compressor Side:

Optimized cover compressor housing;
Compressor wheel: In-house manufactured, reinforced, 57/71mm, 9+0 blade, solid billet aluminum;
Inlet:

Straight compressor housing: 63mm;

90° elbow compressor housing: 76mm (3");

Air outlet: 51mm (2");

Core:

Bearings: Dual ceramic ball bearings;
Cooling: Water-cooled with 2 M14x1.5 ports;

Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine Side:

Housing: Single scroll, 10cm² AR: 0.73;
Turbine wheel: Custom 60/55mm, 9-blade design

Flange: 25" single scroll V-band clamp;

Exhaust connection: 3" V-band clamp;

Includes oil drain flange
