PRODUCT DESCRIPTION
Product details

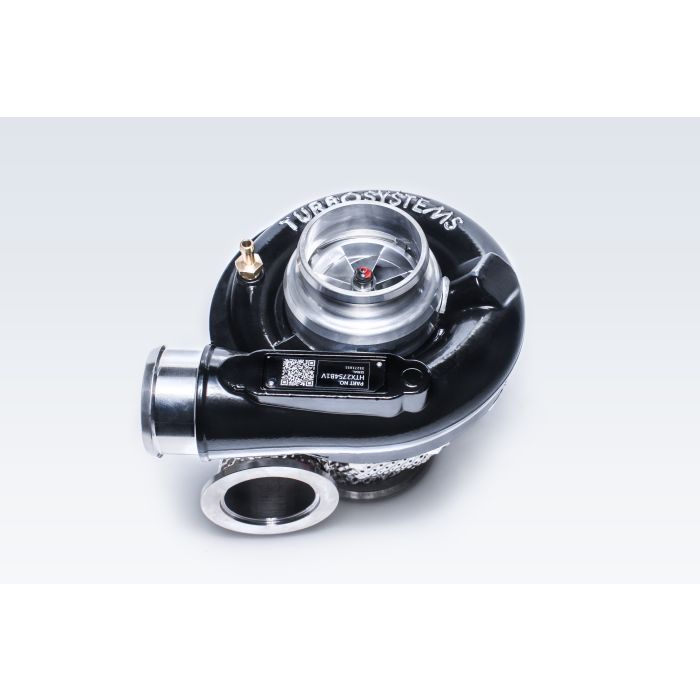

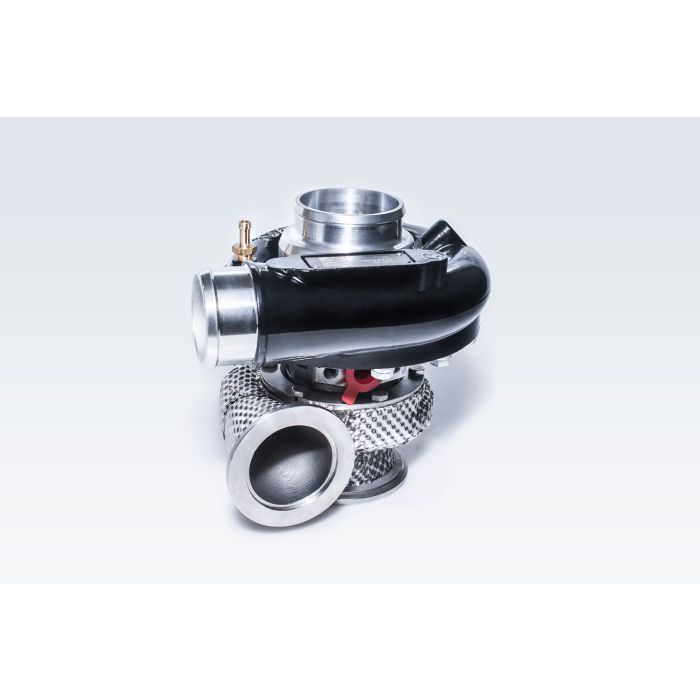

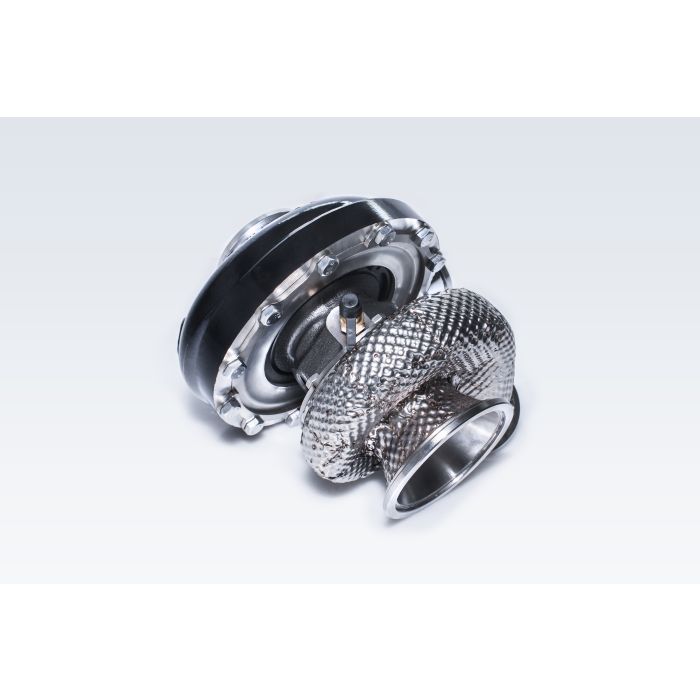

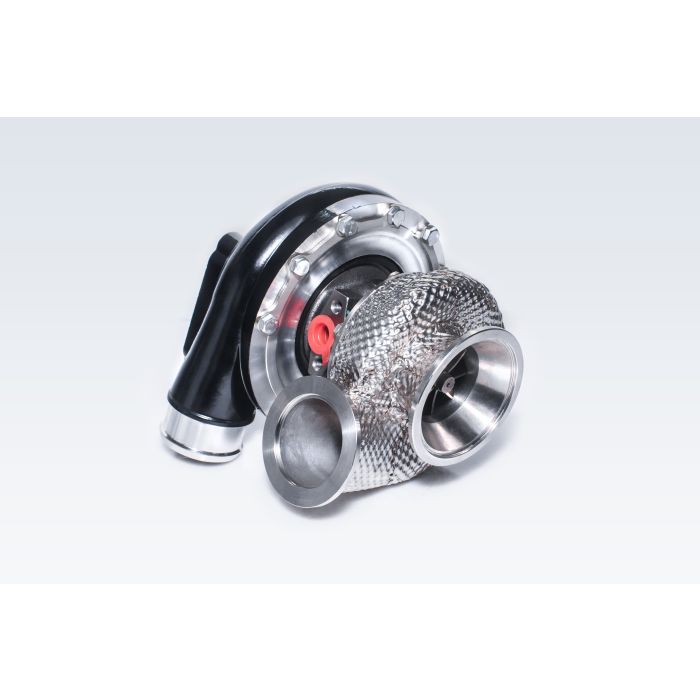

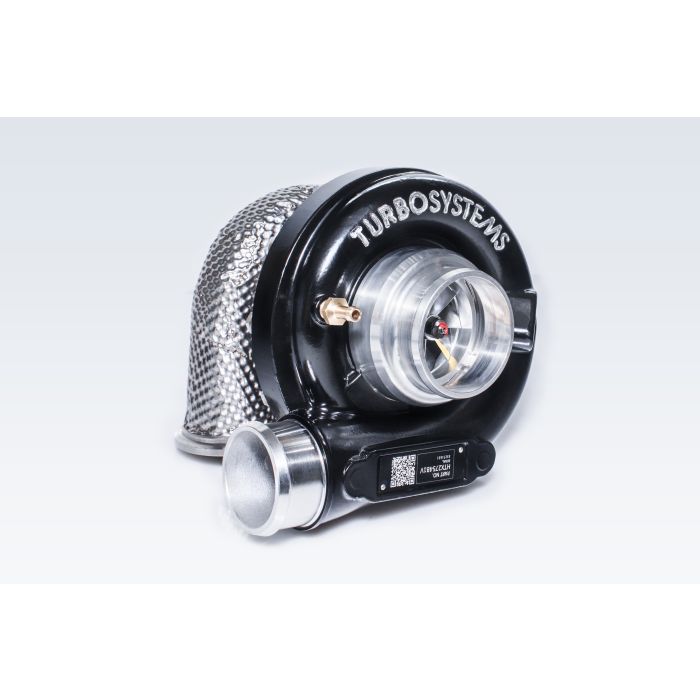

Same specifications as the HTX2754B1, only the turbine flange is replaced with a 8cm², 0.61 AR 2.25" V-band connection. High-performance turbocharger designed for heavy loads and high temperatures. Two compressor side air outlet options: 90° (as shown in pictures) and straight for easier connection. Ceramic dual ball bearing and billet compressor wheel make it a durable and efficient solution for competition use.
This turbocharger includes 2 sets of V-bands (for turbine flange and exhaust).
Compressor side:
Compressor housing with optimized cover;
Compressor wheel: in-house produced, reinforced, 54/67mm, 9+0 blade, billet;
Air inlet diameter:
Straight compressor housing: 63mm (2.5");
90° elbow compressor housing: 76mm (3");
Air outlet diameter: 51mm (2");
Core:
Bearings: ceramic dual ball bearings;
Cooling: water-cooled bearing housing with 2x M14x1.5 ports;
Lubrication: AN4 oil inlet with integrated oil restrictor;
Turbine side:
Housing: 8cm² / AR: 0.61 single scroll;
Turbine wheel: 56/53mm custom design 9-blade;
Flange: 2.25" V-band;
Exhaust connection: 3" V-band;
Oil drain flange included
