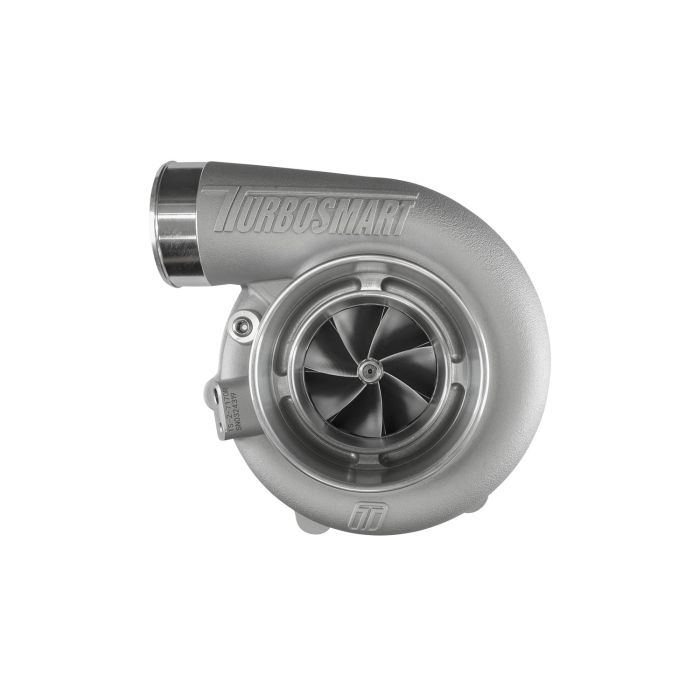

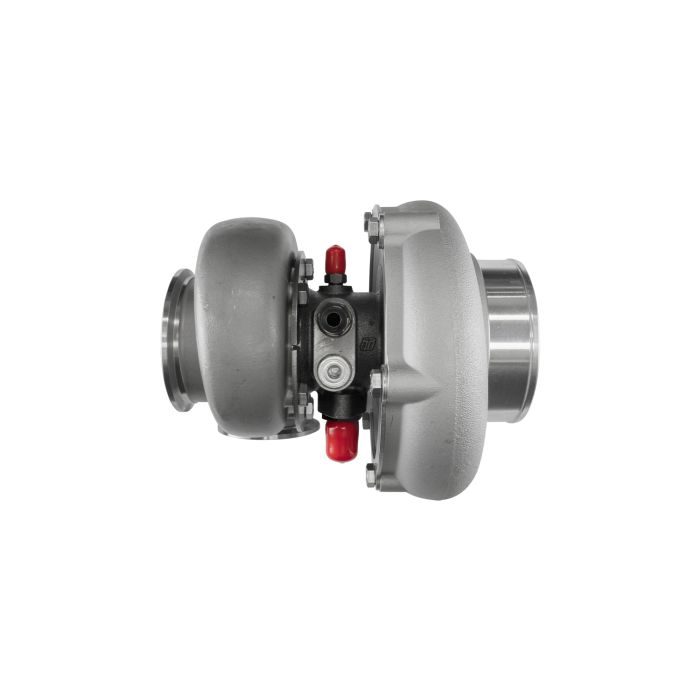

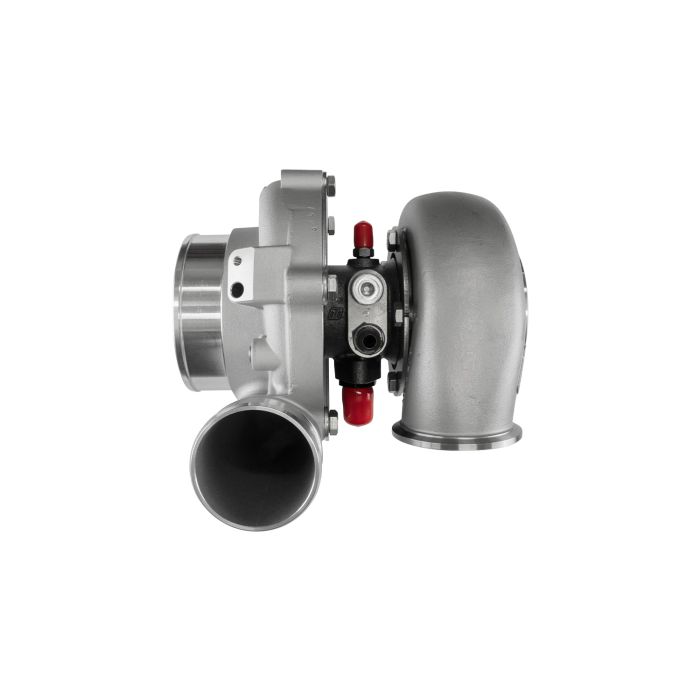

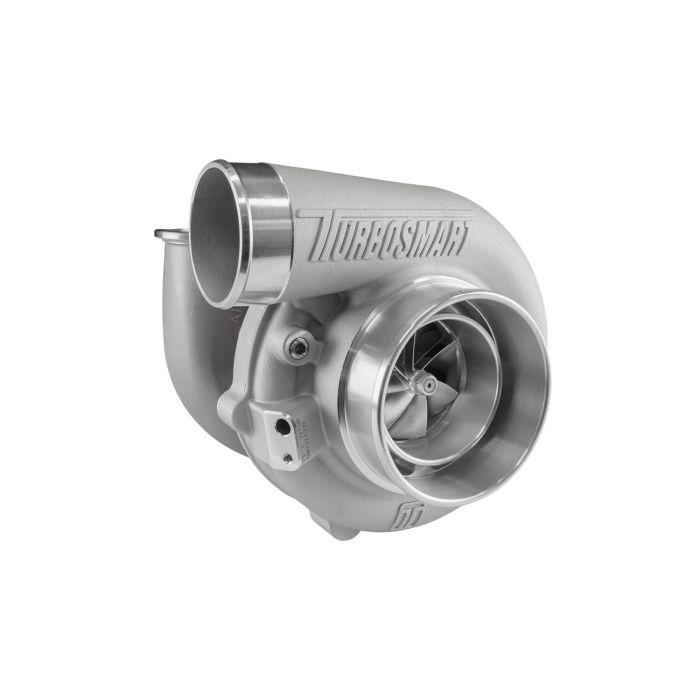

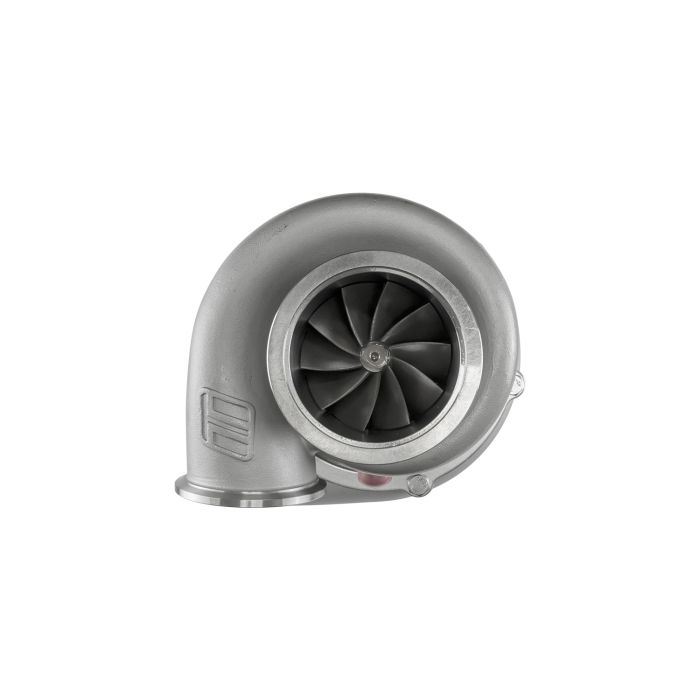

Turbocompresor Turbosmart TS-2 7170 Kompact V-Band Reverse Rotation 1.07AR External Wastegate

Smaller, lighter, and faster: The Turbosmart Turbocharger Series has been developed by leveraging modern materials, design, and manufacturing techniques to create a range that meets the demands of both motorsport and performance enthusiasts.

Every Turbosmart Turbocharger includes everything required for installation as standard: Weld Flanges, V-band clamps, Gaskets, Oil Feed and Drain Fittings, and Water Feed and Return Fittings.

The TS-2 series consists of oil and water-cooled turbochargers with lightweight precision-cast turbine housings, a proprietary bearing and main shaft combination providing unimaginable transient response, with the performance, quality, reliability, and support Turbosmart is known for.

The ultra-low rotating mass of our unique bearing and shaft assembly combines with aggressive compressor aerodynamics to ensure high levels of performance at low shaft speeds. In addition, an exclusive turbine ensures power is maintained at high loads and flow rates.
The TS-2 Turbocharger Series takes a holistic approach to the engine, aiming for power through lower back pressure and high-performance turbines while being smaller, lighter, and faster responding than other solutions on the market. Available in:

TS-1 Oil-Cooled Turbochargers

TS-2 Oil and Water-Cooled Turbochargers
V-Band, various T3 and T4 Flange options

Reverse Rotation (selected sizes)
Various A/R options
Internal and External Wastegate available

Features

Unmatched Transient Response
Aggressive aerodynamics with 7+7 2618 Billet Splitter wheels
Lightweight 310s Stainless Steel Investment Cast Turbine Housings
Lightweight Billet Aluminum Compressor Covers
CFD Designed Housings for optimal A/R and flow
Inconel 713C Turbine Wheel for extreme exhaust gas temperatures
VSR Speed Balanced
Proprietary Dual Ceramic Ball Bearing System
Integrated Iron Backplate into the Center Housing

Specifications

Compressor Inlet: 4″ / 101.6 mm
Compressor Inducer: 71 mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 70 mm
Turbine AR: 1.07
Turbine Outlet: V-Band (3.00″)

Weight: 6.06 kg / 13.3 lbs
Power: 875-1010 HP

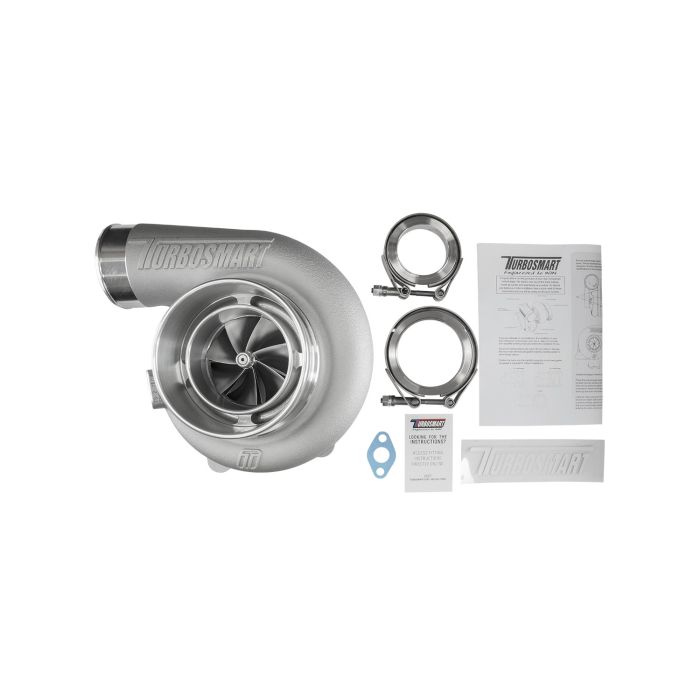

INCLUDES:

1 Turbosmart Performance Turbocharger

2 Weld Flanges (Turbine Inlet & Outlet)

2 V-Band Clamps (Turbine Inlet & Outlet)

1 Oil Drain Gasket

1 Water Line Fitting Kit
