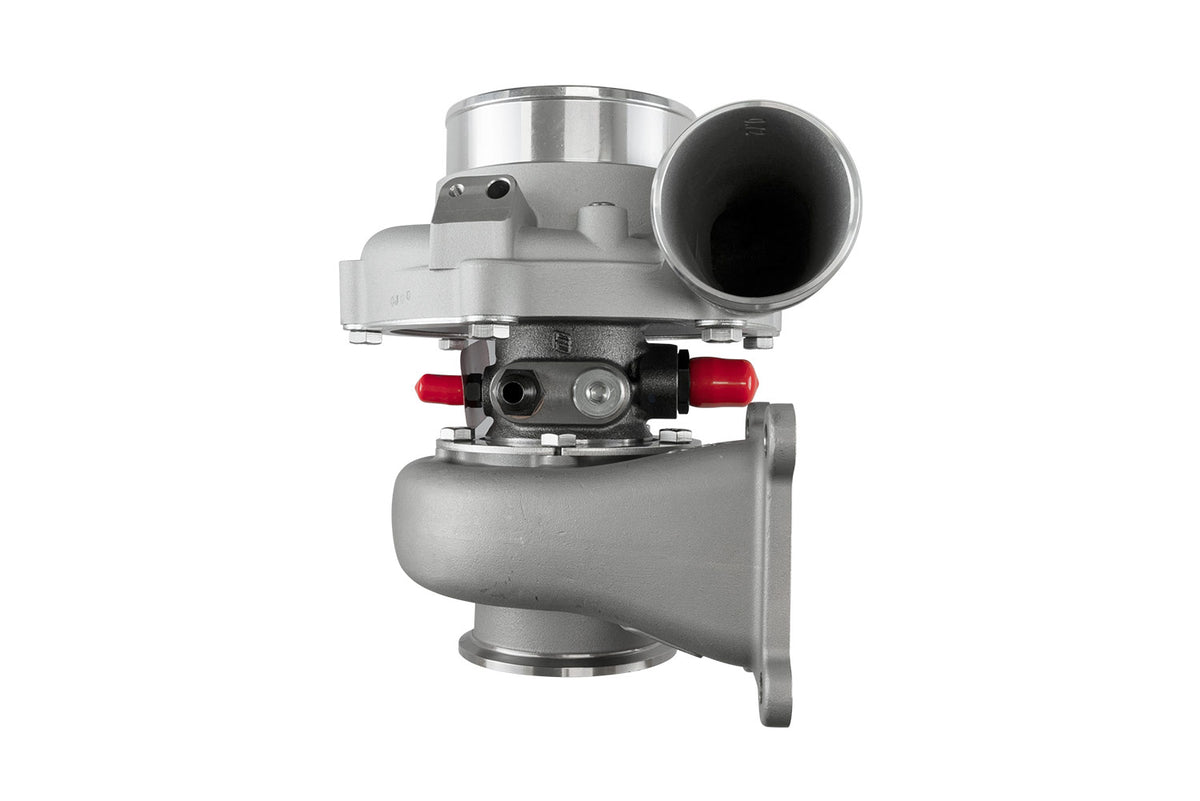

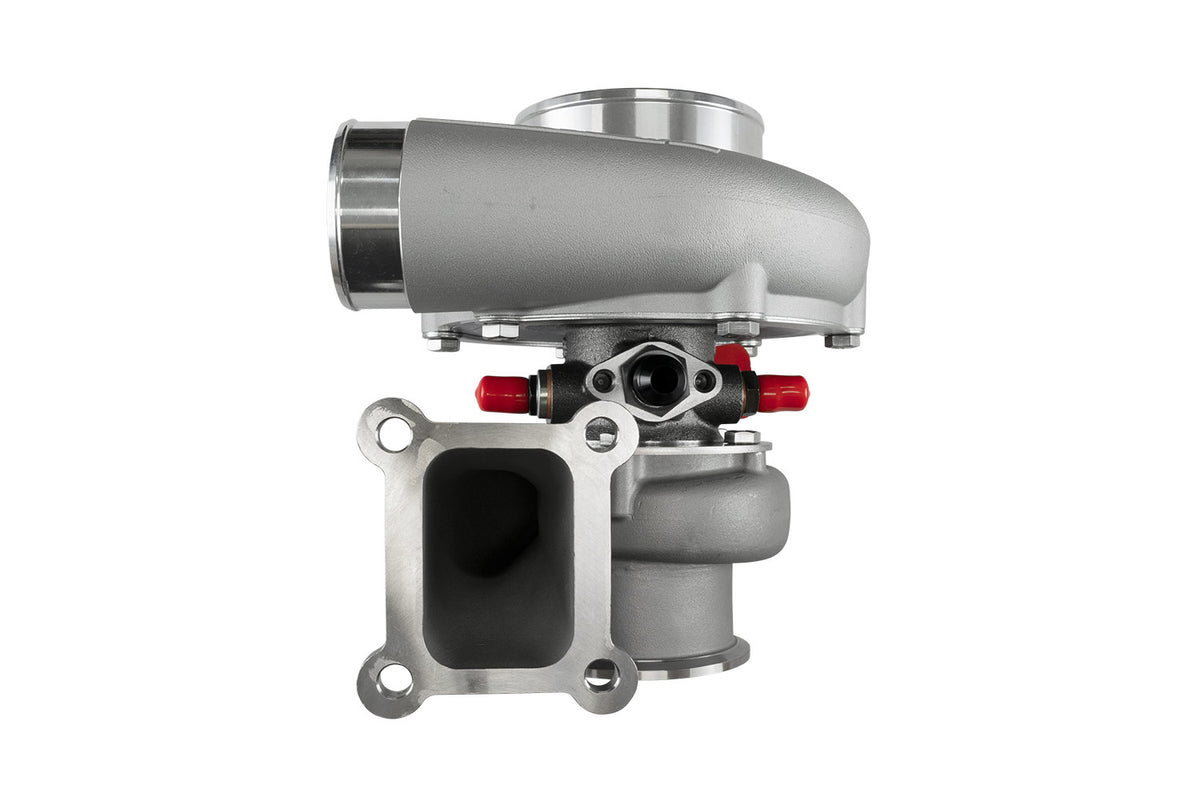

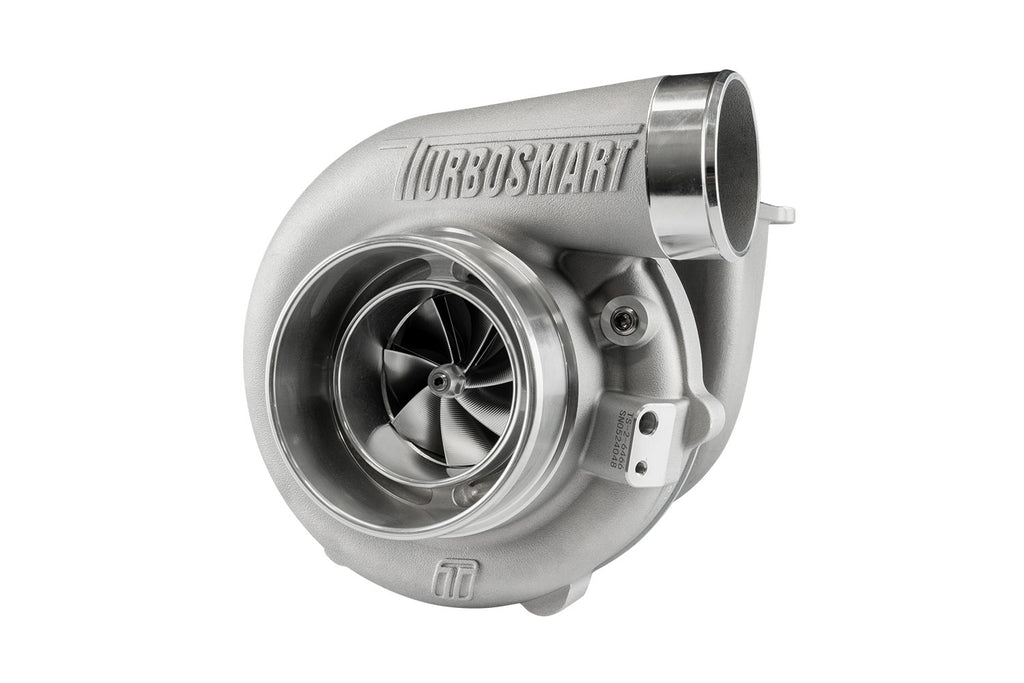

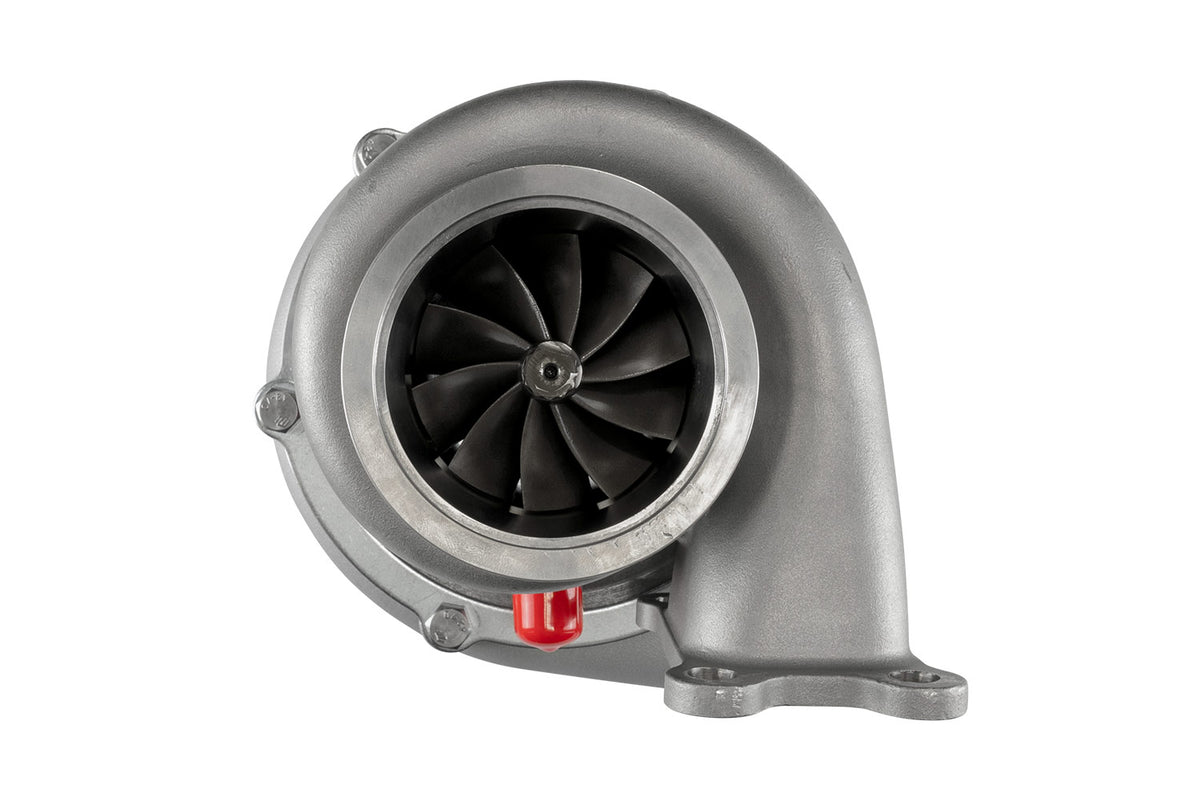

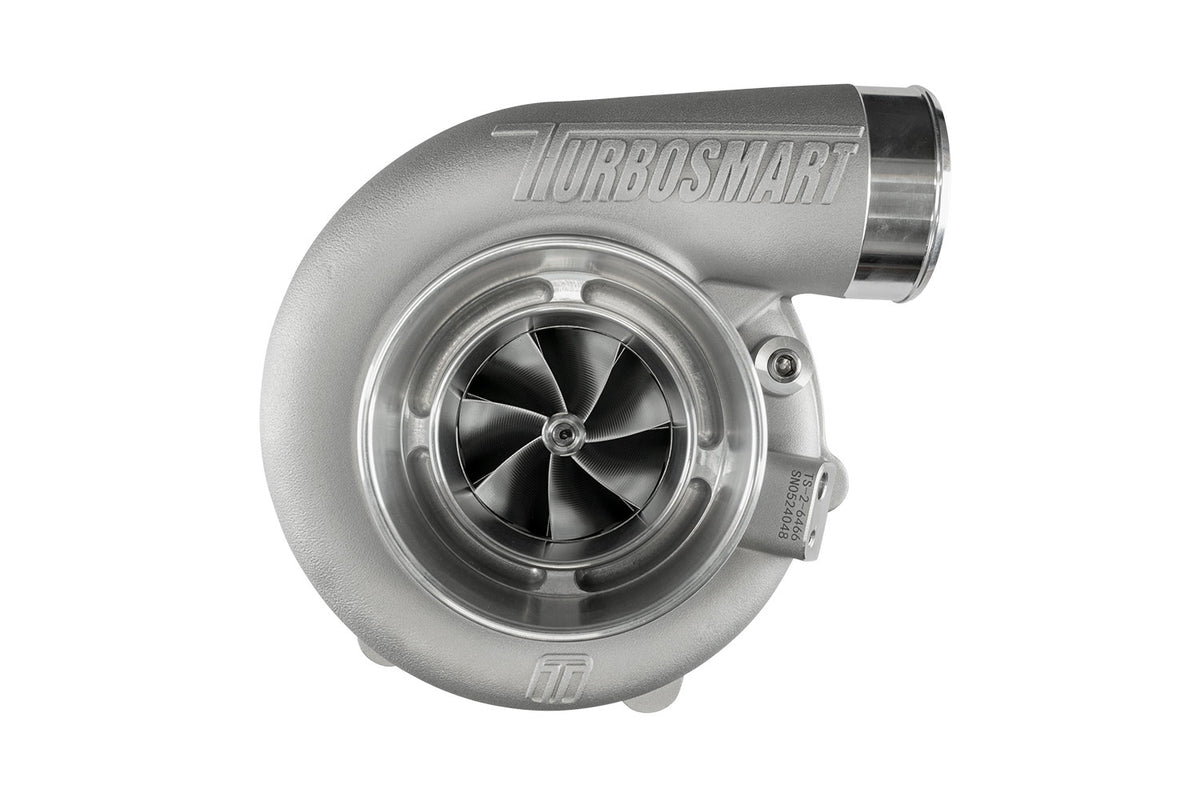

PRODUCT DESCRIPTION
Product details
Smaller, Lighter & Faster – The Turbosmart range of turbochargers have been developed by leveraging modern materials, design and manufacturing techniques to create a range that satisfies the demands of both motorsport and performance enthusiasts.

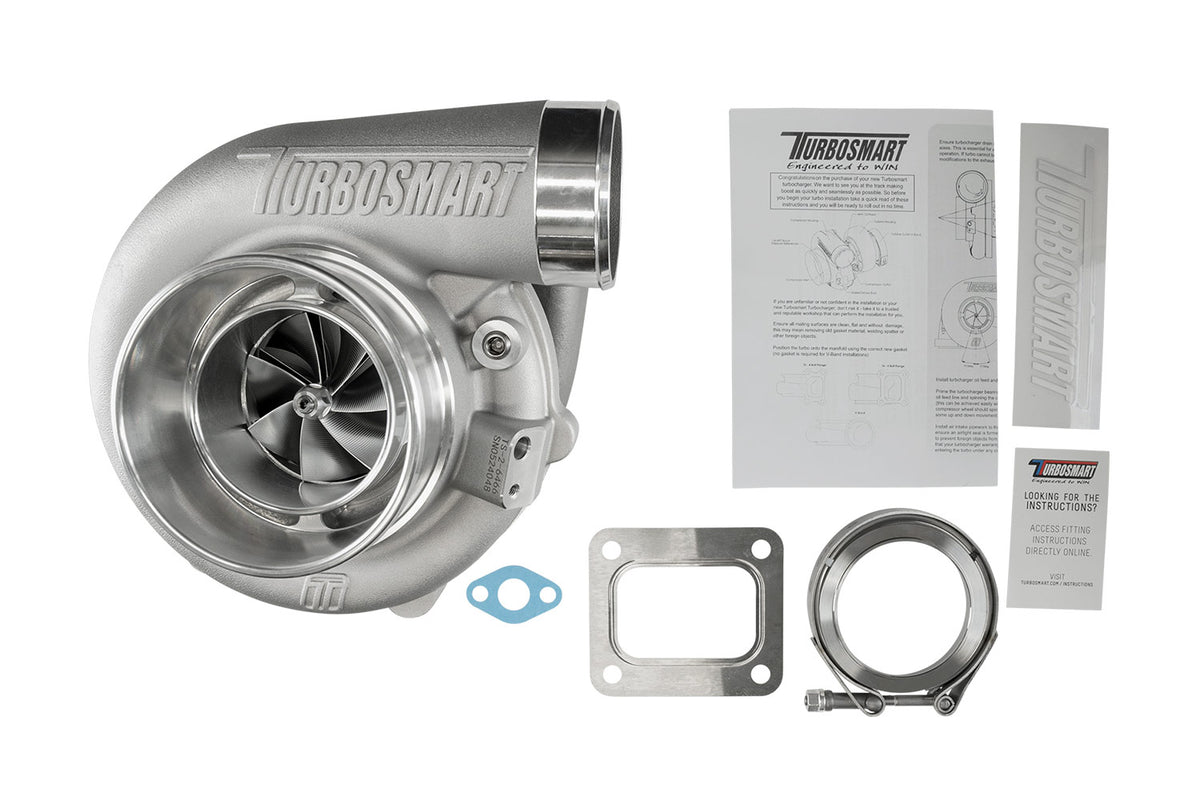

Each Turbosmart turbocharger includes everything required for installation as standard – Weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed & return fittings.
The TS-2 series consists of oil and water cooled turbochargers with light-weight investment cast turbine housings, a patented main shaft and bearing combination that provides unimaginable transient response, with the performance, quality, reliability and support you have come to expect from Turbosmart.
Our unique main shaft and bearing assembly’s ultra-low rotating mass is combined with aggressive compressor aerodynamics to ensure high levels of performance at low shaft speeds. Furthermore, a unique turbine ensures power is maintained at high loads and flow rates.
The TS-2 turbocharger series takes a holistic approach to the engine, aiming for power through lower back pressure and high-performance turbines, while being smaller, lighter, and quicker to respond than other solutions on the market. Available in:
Oil Cooled TS-1 Turbochargers
Oil and Water-Cooled TS-2 Turbochargers
V-Band, various T3 & T4 Flange options
Reverse Rotation (Selected sizes)
Various A/R options
Internal and External wastegate options available
Features
Unrivaled Transient Response
Aggressive 7+7 Split 2618 Billet Aluminium Compressor Wheel Aerodynamics
Lightweight Investment Cast 310s Stainless Steel Turbine Housings
Lightweight Billet Aluminium Compressor Cover
CFD Designed Housings for optimal A/R and flow
Inconel 713C Turbine Wheel for extreme exhaust gas temperatures
VSR Speed Balanced
Patented Ceramic Dual Ball Bearing System
Integrated Iron Backplate in the Centre Housing
Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 64mm
Turbine Inlet: T4 Flange
Turbine Exducer: 66mm
Turbine A/R: 0.82
Turbine Outlet: V-Band Clamp (3.00″)
