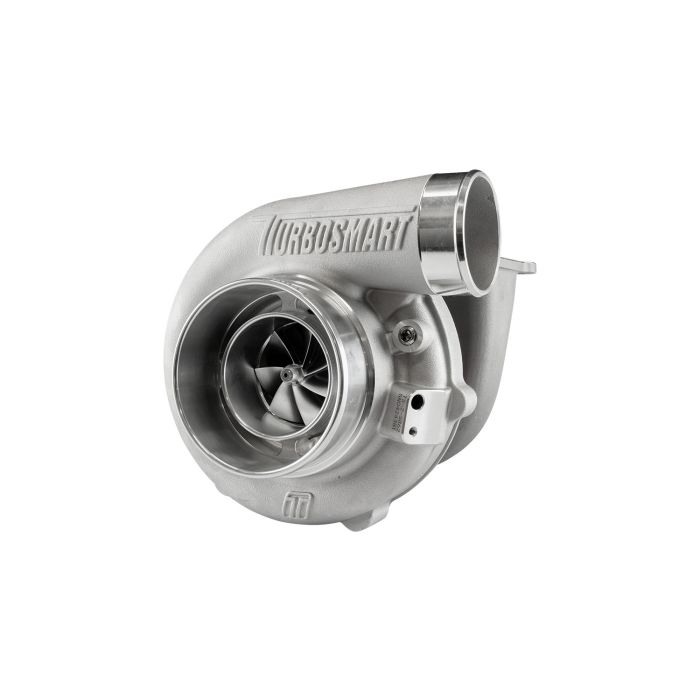

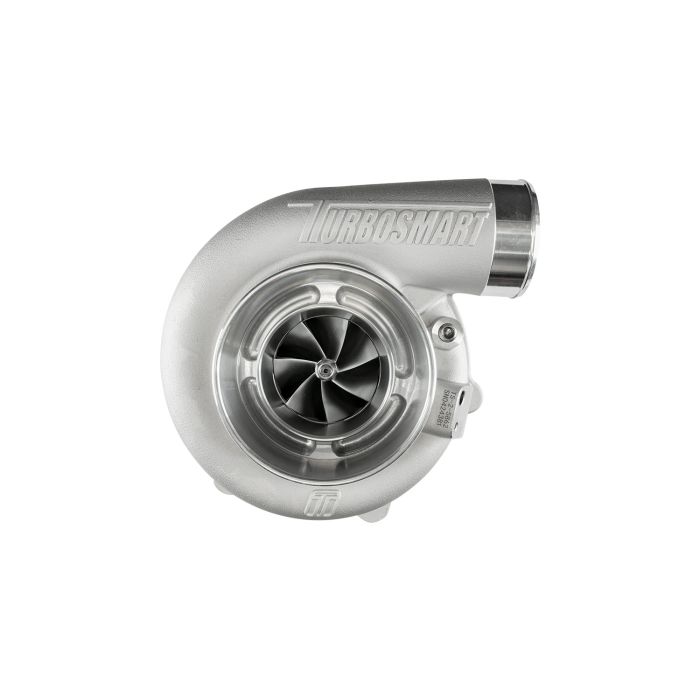

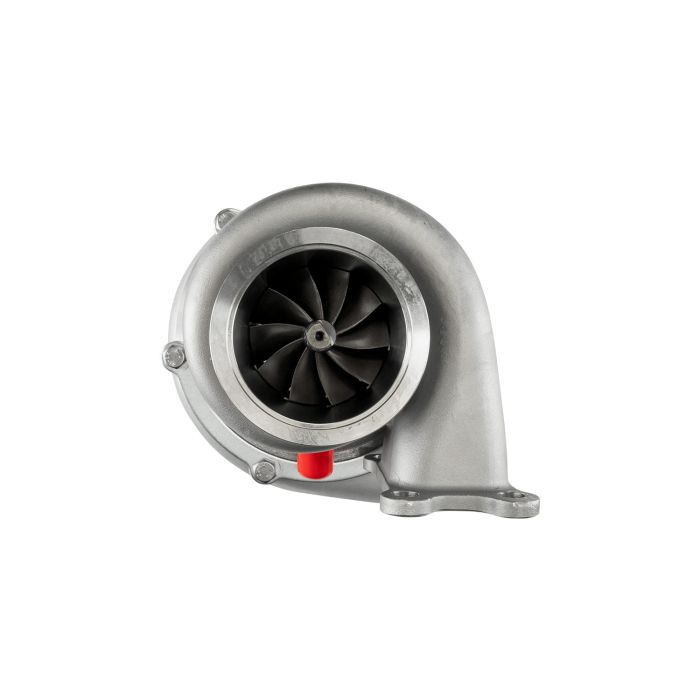

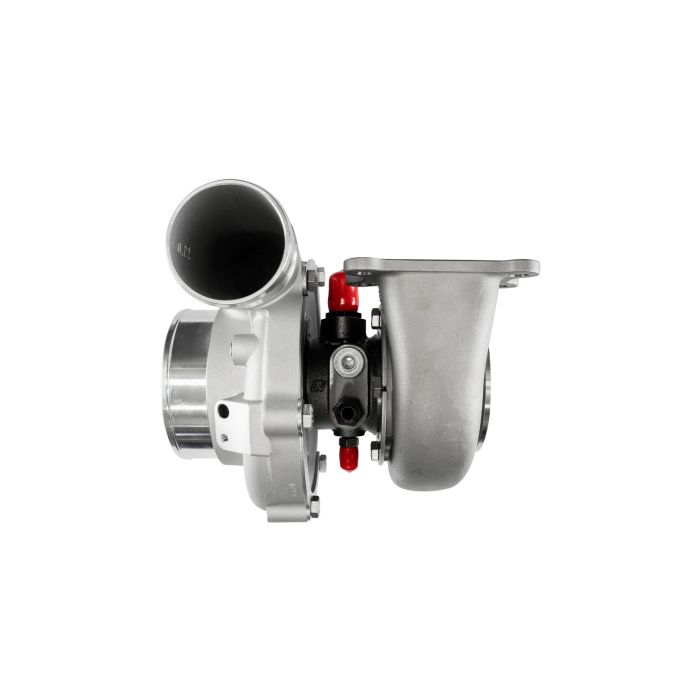

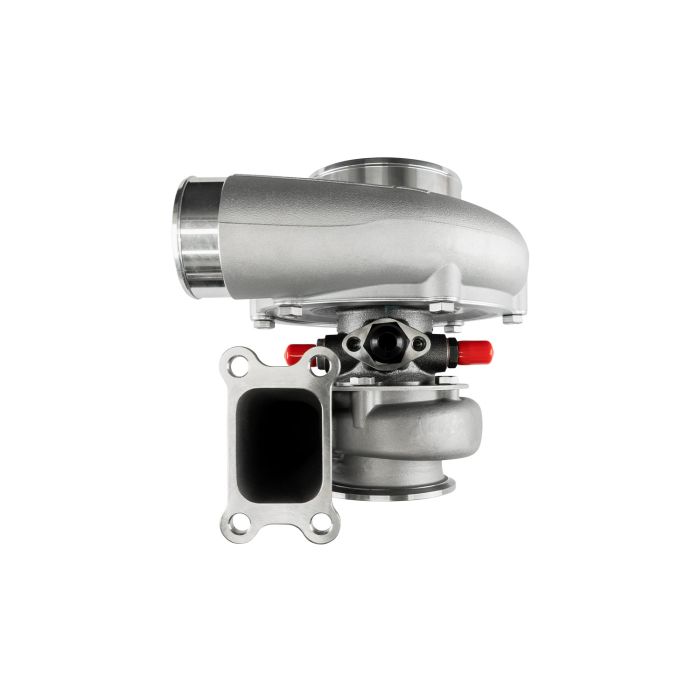

Turbosmart Water-Cooled TS-2 Performance 5862 T3 0.82AR Turbocharger with External Wastegate

Smaller, Lighter, Faster - Turbosmart’s range of turbochargers has been developed leveraging modern materials, design and manufacturing techniques to create a range that satisfies the demands of both motorsport and performance enthusiasts.

Each Turbosmart turbocharger includes everything needed for installation as standard - Weld Flanges, V-band clamps, Gaskets, oil feed and drain fittings, and water feed and return fittings.

The TS-2 series comprises of Oil & Water Cooled Turbochargers with lightweight precision cast turbine housings, a proprietary bearing and shaft mainline combination which delivers unimaginable transient response, with the performance, quality, reliability and support that Turbosmart is renowned for.

The ultra-low rotational mass of our unique bearing and shaft assembly combines with aggressive compressor aero to ensure high levels of performance at low shaft speeds. Furthermore, a unique turbine ensures power is retained at high loads and flow rates.
The TS-2 series of turbochargers takes a holistic approach to the engine, aiming to achieve power through lower back pressure and high-performance turbines while being smaller, lighter, and faster responding than other solutions on the market. Available in:

TS-1 Oil Cooled Turbochargers

TS-2 Oil & Water Cooled Turbochargers

V-Band, various T3 & T4 Flange options

Reverse Rotation (selected sizes)

Various A/R options
Internal and External Wastegate options available

Features

Unparalleled Transient Response

Aggressive Aero with 7+7 2618 Billet Splitter wheels
Lightweight 310s Stainless Steel Lost Wax Cast Turbine Housings
Lightweight Billet Aluminium Compressor Covers
CFD Designed Housings for Optimal A/R & Flow
Inconel 713C Turbine Wheel for Extreme Exhaust Gas Temperatures
VSR Speed Balanced
Proprietary Dual Ceramic Ball Bearing System
Integrated Backplate Into Centre Housing Iron

Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 58mm
Turbine Inlet: T3 Flange
Turbine Exducer: 62mm
Turbine A/R: 0.82
Turbine Outlet: V-Band Clamp (3.00″)

Weight: 6.06kg / 13.3lb

Power: 725-835hp

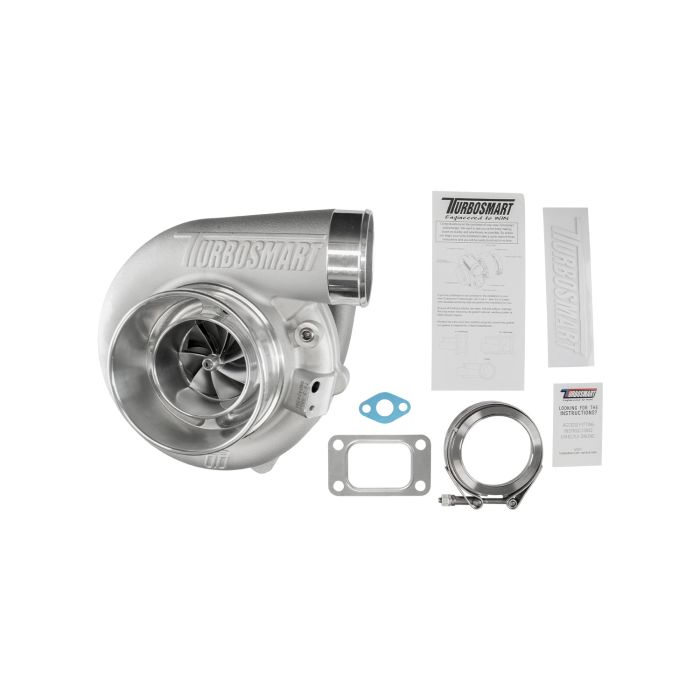

Includes:

1x Turbosmart Performance Turbocharger

1x Weld Flange (Turbine Outlet)

1x V-Band Clamp (Turbine Outlet)

1x Turbine Inlet Gasket

1x Water Line Fitting Kit

1x Oil Drain Gasket
