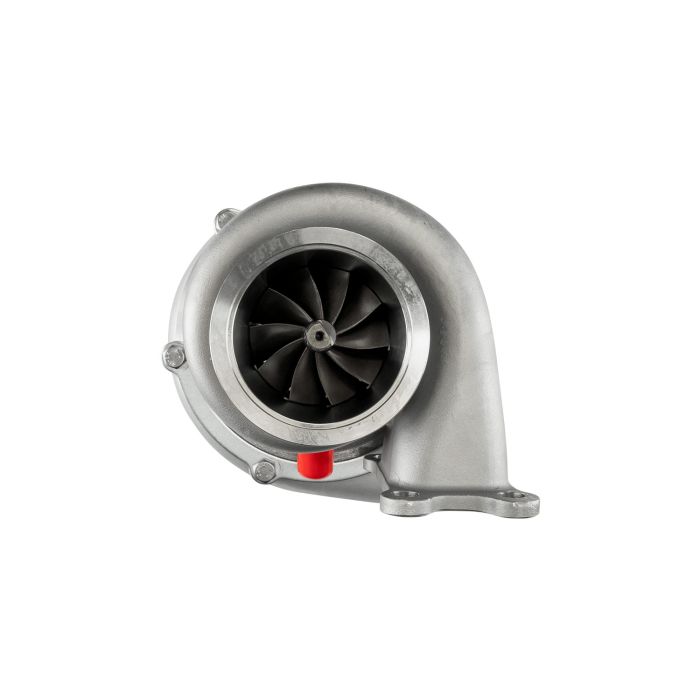

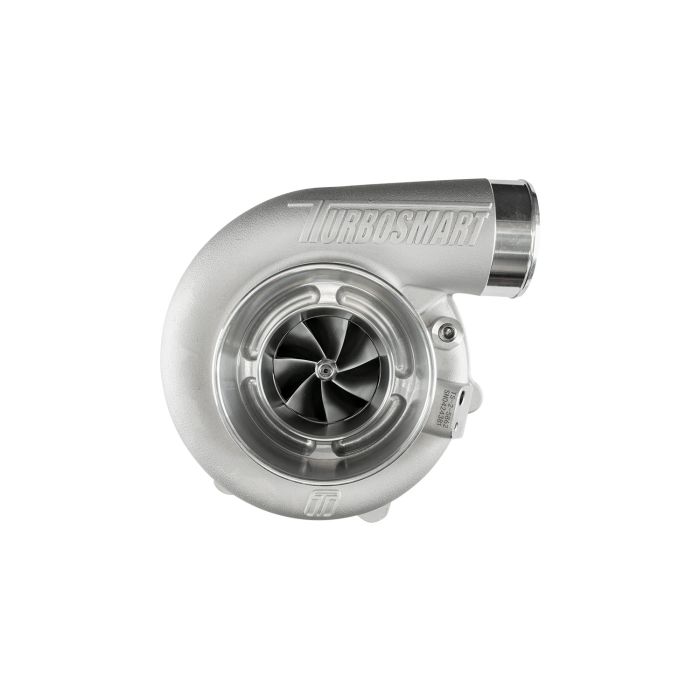

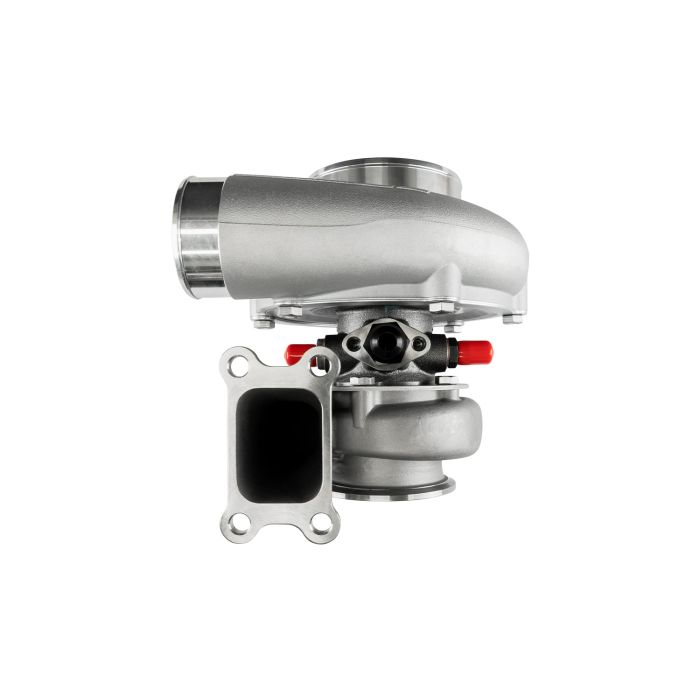

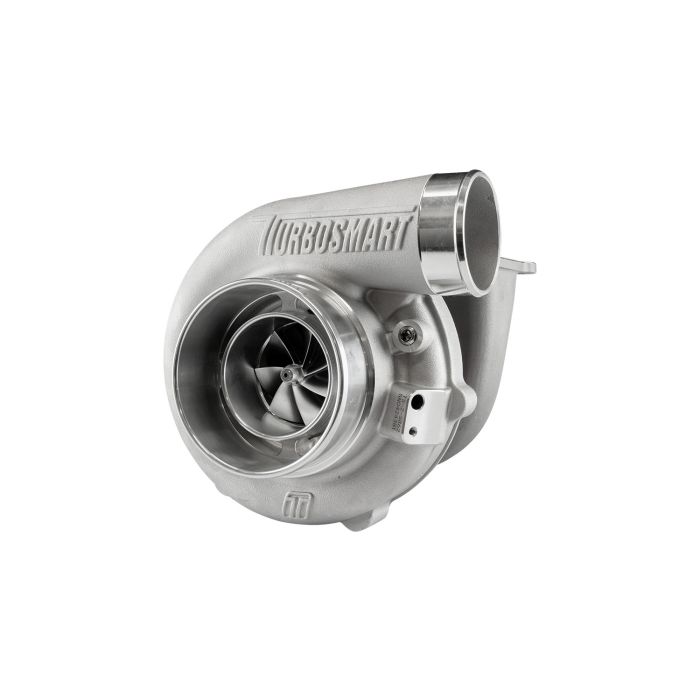

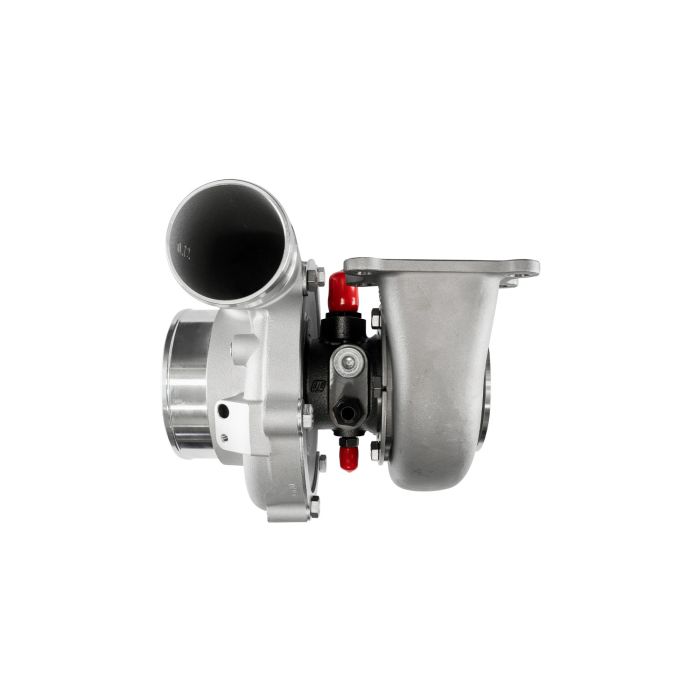

Turbosmart Water-Cooled TS-2 Performance 5862 T3 0.63AR Turbocharger with External Wastegate

Smaller, Lighter, Faster – Turbosmart’s range of turbochargers have been developed utilising modern materials, design and manufacturing techniques to create a range that meets the demands of both motorsport and performance enthusiasts.

Each Turbosmart turbocharger includes everything required for installation as standard: weld-on flanges, V-band clamps, gaskets, oil feed & drain fittings and water feed & return fittings.

The TS-2 series consists of oil & water cooled turbochargers with lightweight precision cast turbine housings, a patented bearing & shaft main assembly providing unimaginable transient response, with the performance, quality, reliability and support that Turbosmart are known for.

The ultra-low rotating mass of our unique bearing and shaft assembly combines with aggressive compressor aerodynamics to ensure high levels of performance at low shaft speeds. In addition, a unique turbine ensures that power is maintained at high loads and flow rates.
The TS-2 turbocharger series takes a holistic approach to the engine, aiming for power through lower back pressure and high-performance turbines, while being smaller, lighter, and quicker to respond than other solutions on the market. Available in:

TS-1 Oil Cooled Turbochargers

TS-2 Oil & Water Cooled Turbochargers
V-Band, various T3 & T4 Flange options

Reverse Rotation (selected sizes)

Various A/R Options
Internal & External Wastegate Options Available

Features

Unrivalled Transient Response
Aggressive 7+7 Split Billet 2618 Aluminium Compressor Wheel Aerodynamics
Lightweight Lost Wax Cast 310s Stainless Steel Turbine Housings
Lightweight Billet Aluminium Compressor Cover
CFD Designed Housings for optimal A/R & Flow
Inconel 713C Turbine Wheel for extreme exhaust gas temperatures
VSR Speed Balanced
Patented Dual Ceramic Ball Bearing System
Integrated Iron Backplate into the Centre Housing

Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 58mm
Turbine Inlet: T3 Flange
Turbine Exducer: 62mm
Turbine A/R: 0.63
Turbine Outlet: V-Band Clamp (3.00″)

Weight: 6.06kg / 13.3lb

Power: 725-835hp

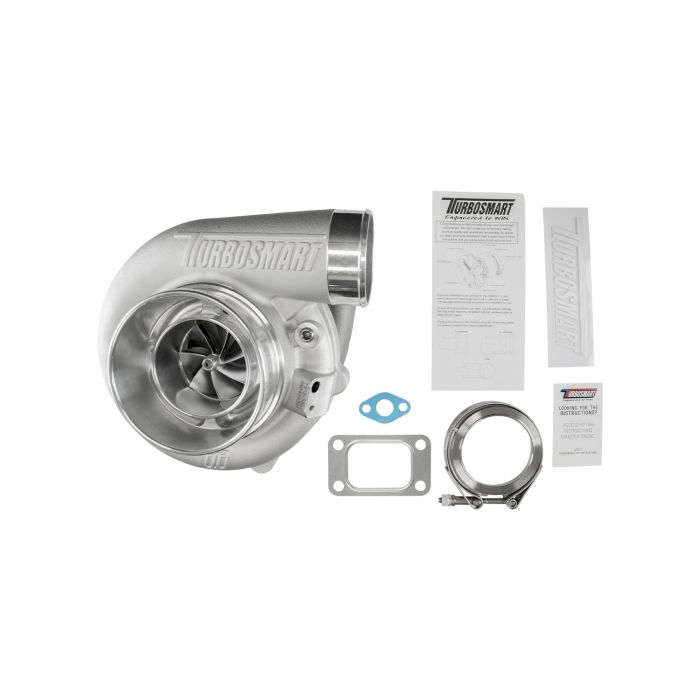

Includes:

1x Turbosmart Performance Turbocharger

1x Weld-on Flange (Turbine Outlet)

1x V-Band Clamp (Turbine Outlet)

1x Oil Drain Gasket
