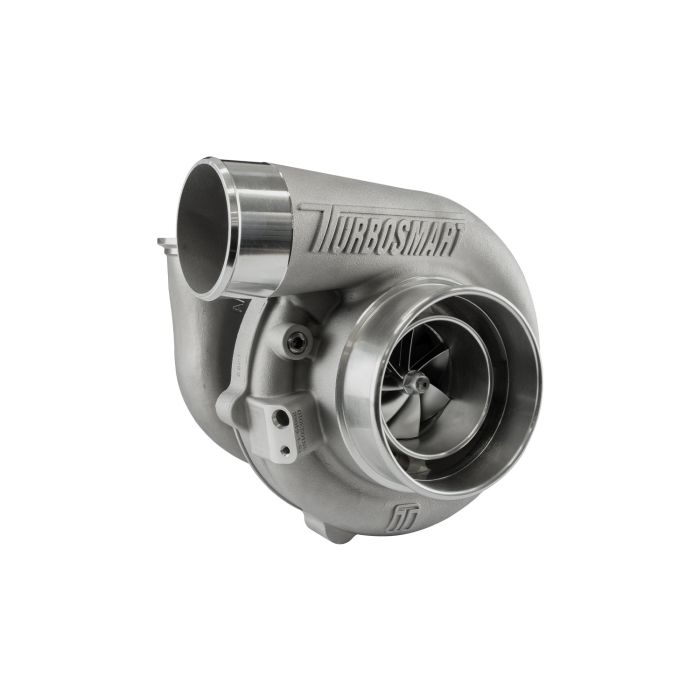

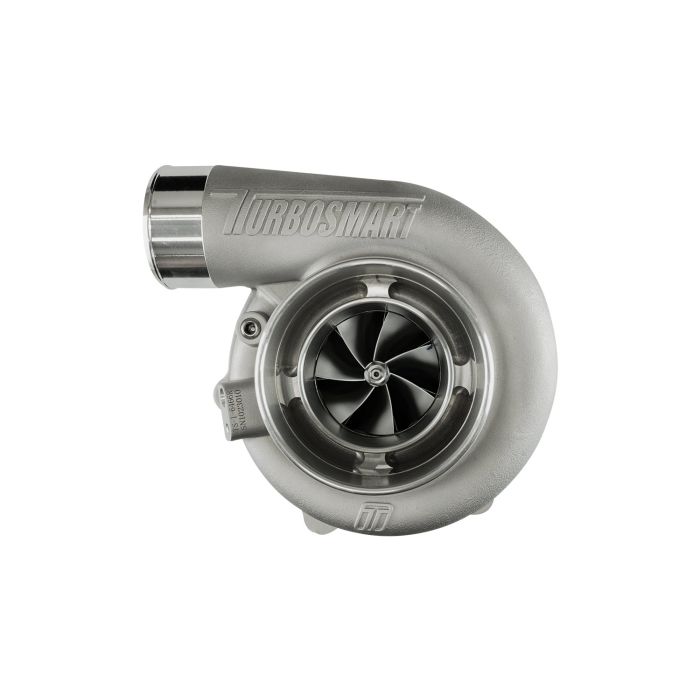

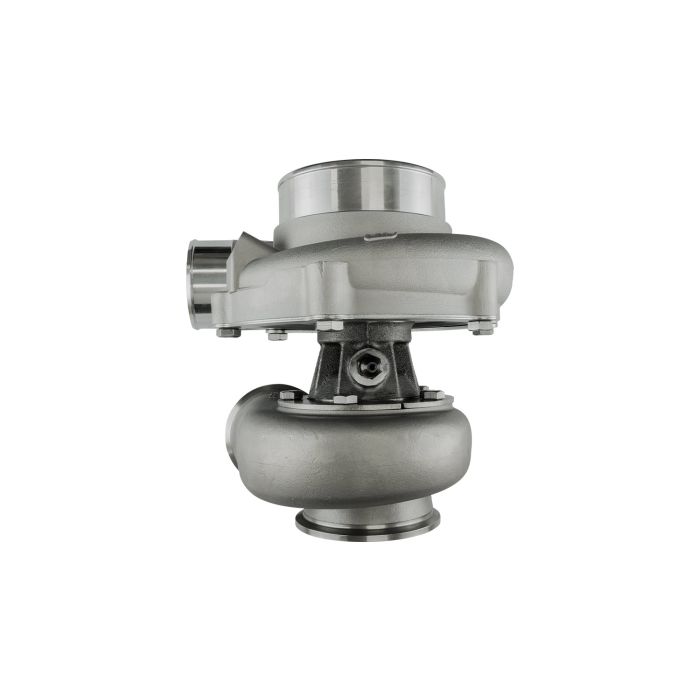

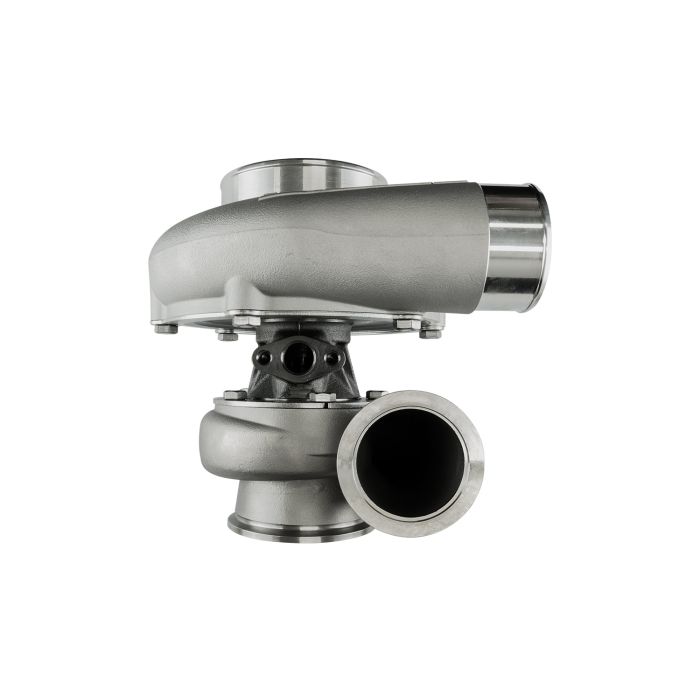

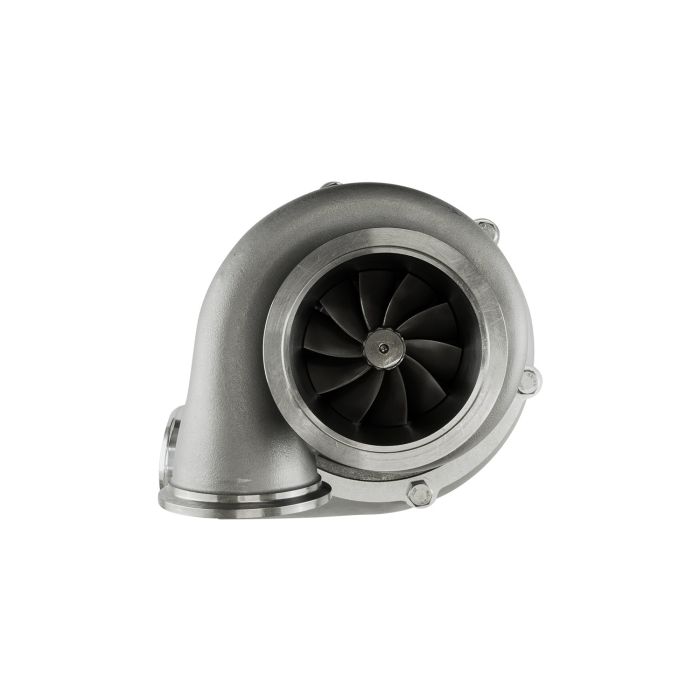

TS-1 Performance Turbosmart 6466 V-Band 1.07AR Turbocharger with External Wastegate and Reverse Rotation.

Smaller, Lighter, Faster – Turbosmart’s range of turbochargers has been developed by leveraging modern materials, design and manufacturing techniques to create a range that meets the demands of both motorsport and performance enthusiasts.

Each Turbosmart turbocharger includes everything required for installation as standard; weld-on flanges, V-Band clamps, gaskets, and oil feed & drain fittings.

The TS-1 Series consists of oil-cooled turbochargers with investment cast lightweight turbine housings, a proprietary journal bearing & main shaft combination that delivers unimaginable transient response, with the performance, quality, reliability, and support you’ve come to expect from Turbosmart.

The ultra-low rotating mass of our unique journal bearing and shaft assembly combines with aggressive compressor aerodynamics to ensure high performance at low shaft speeds. In addition, an exclusive turbine ensures power is maintained even at high load and flow.
All Turbosmart turbochargers have been designed with an all-encompassing approach to the engine, aiming to achieve power through reduced backpressure and high-performance turbines while being smaller, lighter, and offering faster response than other solutions on the market. Available in:

TS-1 Oil Cooled Turbochargers

TS-2 Oil & Water Cooled Turbochargers
V-Band, T3 & T4 Connections
Reverse Rotation (selected sizes)
Various Aspect Ratio (AR) Options
Internal & External Wastegate Options Available

Features

Unrivalled Transient Response
Aggressive Aerodynamics with 7+7 Split 2618 Billet Compressor Wheels
Investment Cast 310s Stainless Steel Lightweight Turbine Housings
Billet Aluminium Lightweight Compressor Covers
CFD Designed Housings for Optimised Aspect Ratio & Flow
Inconel 713C Turbine Wheel for Extreme EGTs
VSR Speed Balanced
Proprietary Dual Ceramic Ball Bearing System
Integrated Back Plate into the Centre Housing

Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 64mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 66mm
Turbine Aspect Ratio (AR): 1.07

Turbine Outlet: V-Band (3.00″)

Weight: 6.06kg / 13.3lb

Power: 825-955hp

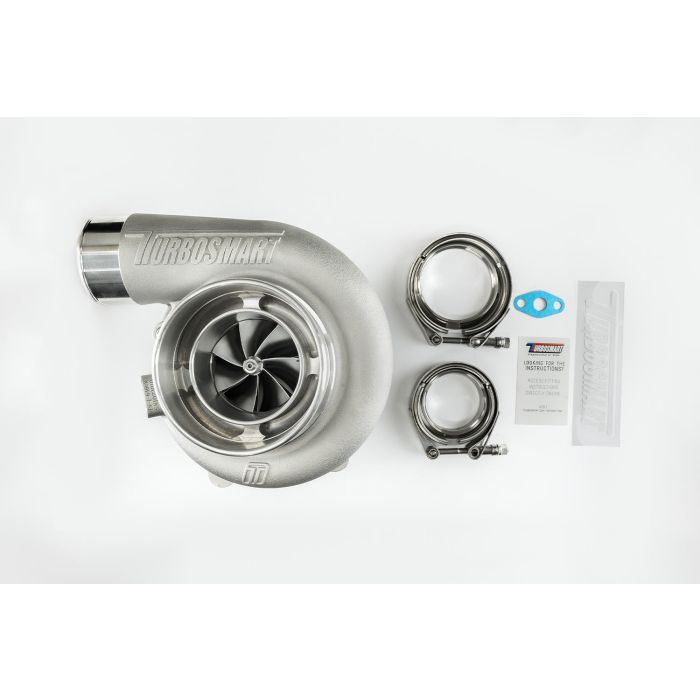

INCLUDES:

1x Turbosmart Performance Turbocharger

2x Weld-On Flanges (Turbine Inlet & Outlet)

2x V-Band Clamps (Turbine Inlet & Outlet)

1x Oil Drain Gasket
