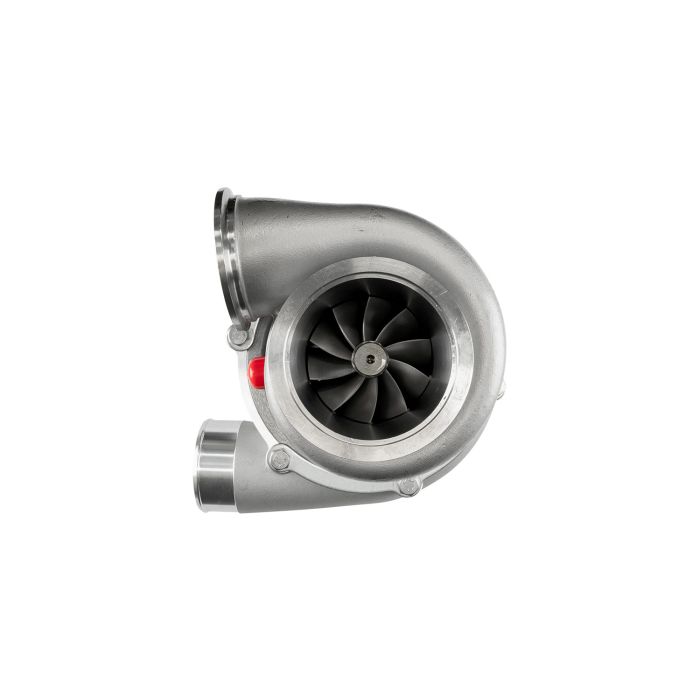

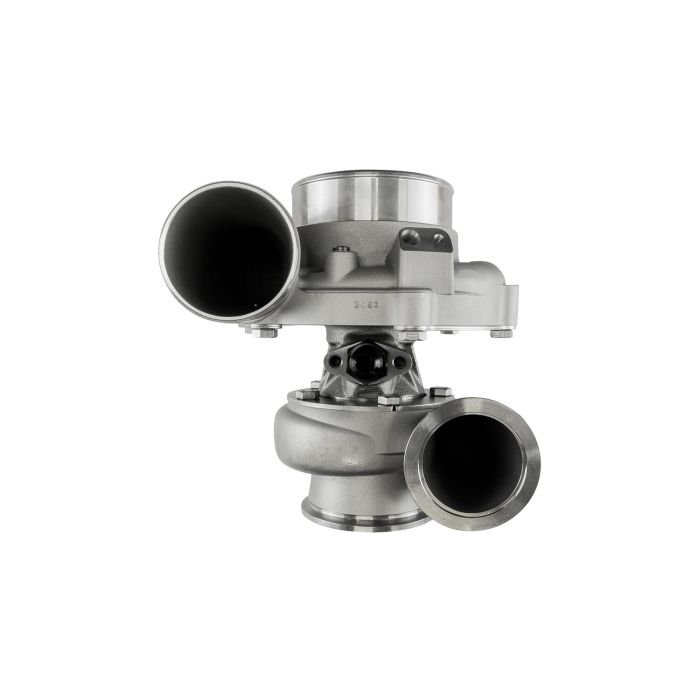

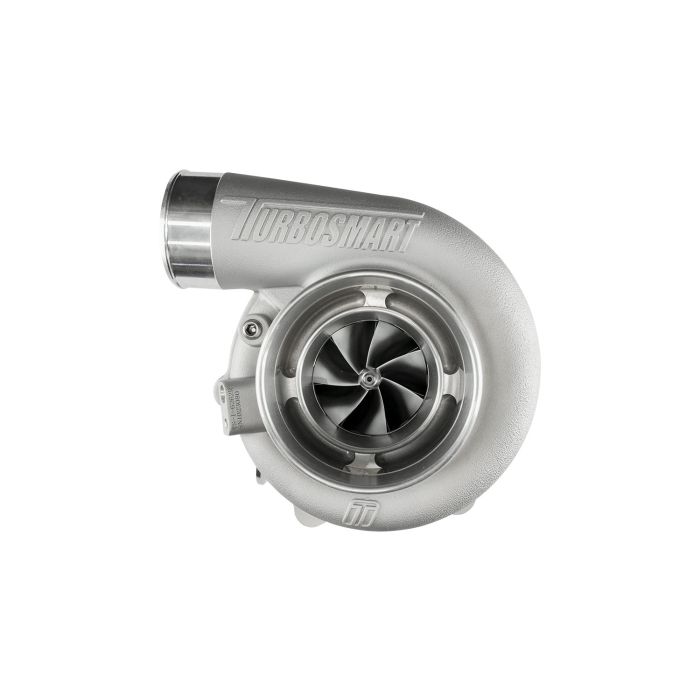

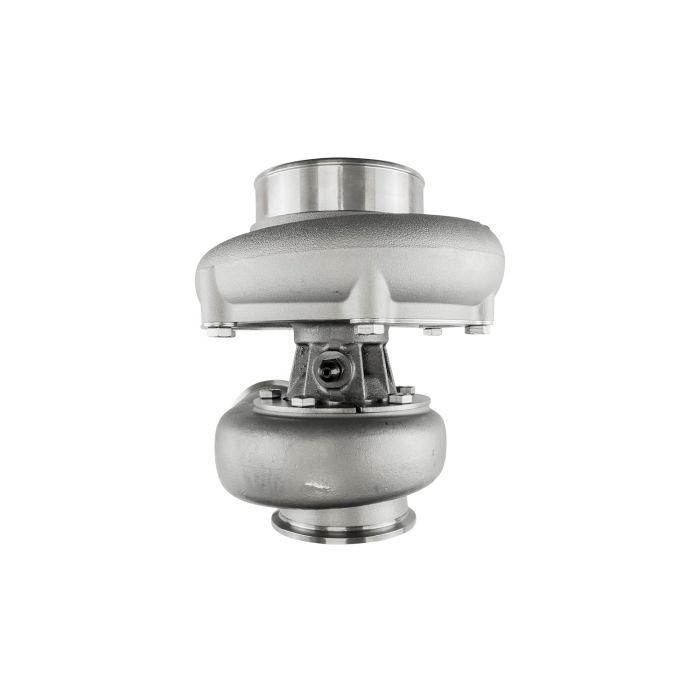

Turbocompresor TS-1 Performance Turbosmart 6262 V-Band 0.82AR with External Wastegate and Reverse Rotation.

Smaller, Lighter & Faster – The Turbosmart Turbocharger series has been developed by leveraging modern materials, design & manufacturing techniques to create a range that satisfies the demands of both motorsport and performance enthusiasts.

Each Turbosmart turbocharger includes everything needed for installation as standard; weld flanges, V-band clamps, gaskets and oil feed & drain fittings.

The TS-1 Series consists of oil-cooled turbochargers featuring lightweight lost-wax investment cast turbine housings, a patented bearing and main shaft combination provides unimaginable transient response with the performance, quality, reliability, and support you have come to expect from Turbosmart.

The ultra-low rotating mass of our unique bearing and shaft assembly combines with aggressive compressor aerodynamics to ensure high performance at low shaft speeds. In addition, an exclusive turbine ensures that power is maintained even at high loads and flow rates.
All Turbosmart turbochargers have been designed with a holistic approach to the engine, aiming to achieve power through reduced backpressure and high-performance turbines, while being smaller, lighter, and offering faster response than other solutions on the market. Available in:

TS-1 Oil Cooled Turbochargers

TS-2 Oil & Water Cooled Turbochargers
V-Band connections, multiple T3 & T4 flange options

Reverse Rotation (selected sizes)
Various A/R Options
Internal and External Wastegate options available

Features

Unrivalled Transient Response
Aggressive aerodynamics featuring 7+7 Splitter 2618 Billet Aluminum Wheels
Lost-wax Investment Cast 310s Stainless Steel Lightweight Turbine Housings
Lightweight Billet Aluminum Compressor Covers
CFD Designed Housings for Optimal A/R and Flow
Inconel 713C Turbine Wheel for Extreme EGTs
VSR Speed Balanced
Patented Dual Ceramic Ball Bearing System
Integrated Iron Backplate in Centre Housing

Specifications

Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 62mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 62mm
Turbine A/R: 0.82

Turbine Outlet: V-Band (3.00″)

Weight: 6.06kg / 13.3lbs

Horsepower: 760-880HP

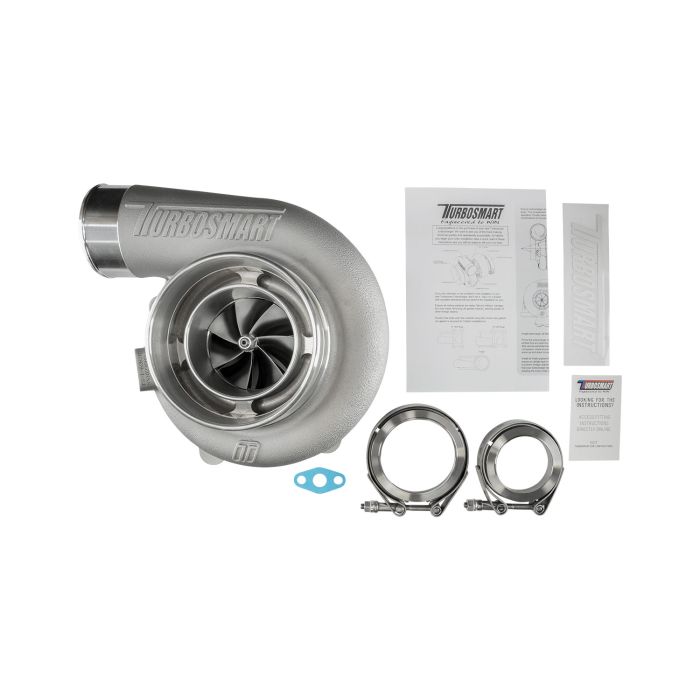

Includes:

1x Turbosmart Performance Turbocharger

2x Weld Flanges (Turbine Inlet & Outlet)

2x V-Band Clamps (Turbine Inlet & Outlet)

1x Oil Drain Gasket
