PRODUCT DESCRIPTION
Product details

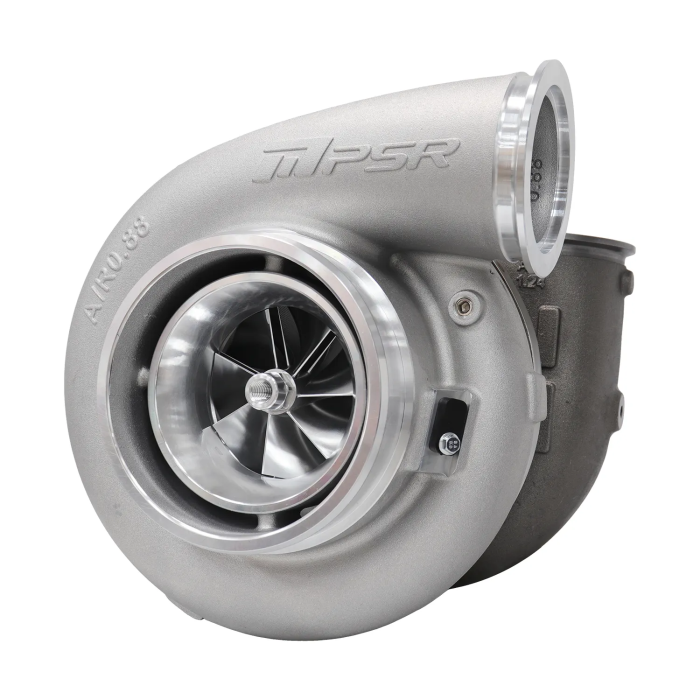

Pulsar PSR 8806GR Turbocharger with Dual Ball Bearing, Standard Compressor Housing, Dual V-Band Flange, 1.24 A/R Ratio, up to 2350 HP
High-performance PSR 8806GR turbocharger from the Pulsar GR series, designed for extreme airflow and maximum power in sanctioned competition applications. This version features a standard compressor housing and a turbine housing with a dual V-Band flange and a 1.24 A/R ratio.
The dual ceramic ball bearing system provides optimal turbo response and increased durability by reducing shaft movement.
The 7+7 blade GR compressor wheel is designed for increased airflow and maximum efficiency.
The 9-blade PTG Aero Inconel 713C turbine wheel is designed to withstand extreme temperatures and high-horsepower applications.
The compressor inlet features a 0.25" MWE slot anti-surge cover for improved compressor stability.
The compressor cover includes an integrated speed sensor and pressure ports.
The 1.24 A/R dual V-Band turbine housing offers maximum exhaust flow and high power potential.
Oil fittings included.
Installation accessories included.
4.0" flange kit for compressor outlet.
3.5" V-Band flange kit for turbine inlet.
5.0" flange kit for turbine outlet.
Oil drain fitting kit.
Technical Specifications.
Max engine power: up to 2350 HP.
Compressor wheel: 88.9 × 133 mm, 7+7 blades.
Turbine wheel: 112 × 106 mm.
Compressor housing: Standard.
Compressor Inlet: 6.0″ Hose
Compressor Outlet: 4.0″ V-band
Turbine Housing: Dual V-band 1.24 A/R
Turbine Inlet: V-band compatible with 3.5″ OD piping
Turbine Outlet: V-band compatible with 5.0″ OD piping
Lubrication System
Oil Feed: Includes -4AN fitting with 1.65 mm (0.065″) restrictor
Oil Feed Flange: Included
Oil Drain: According to turbocharger specifications
Additional Information
Weight: 16 kg
Dimensions: 34 × 34 × 39 cm
