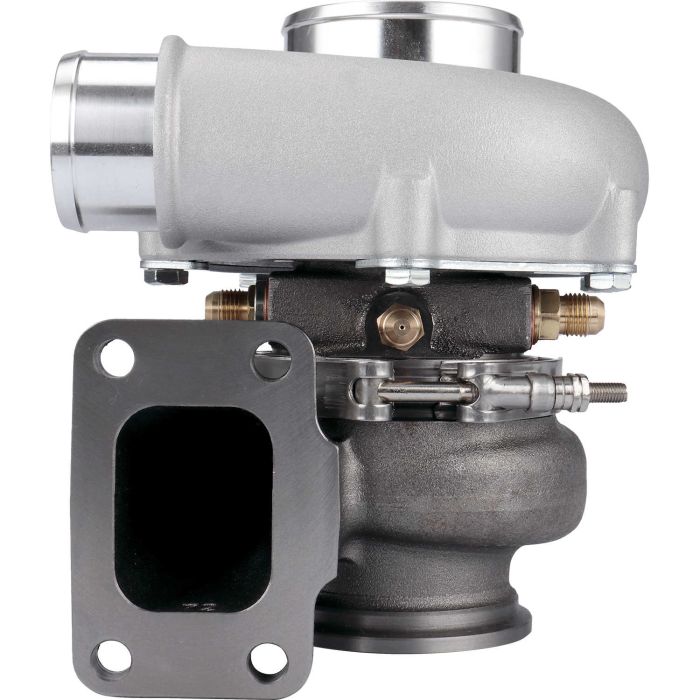

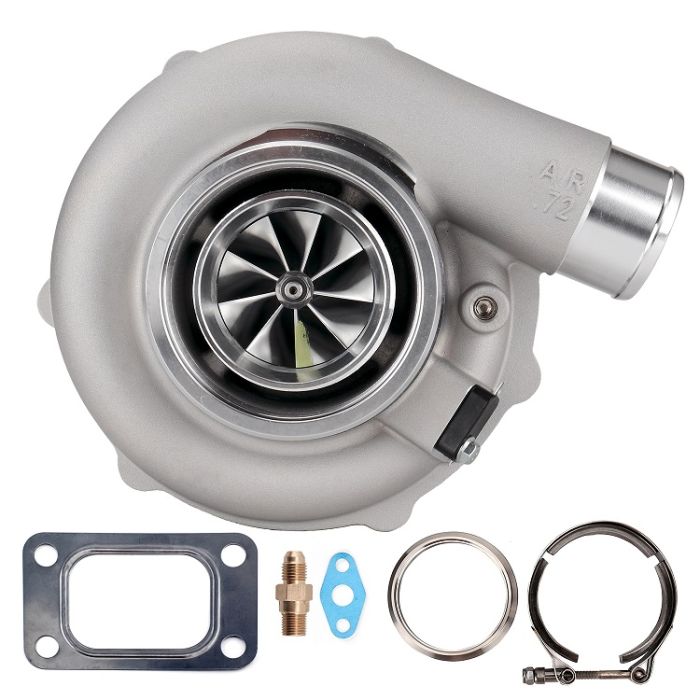

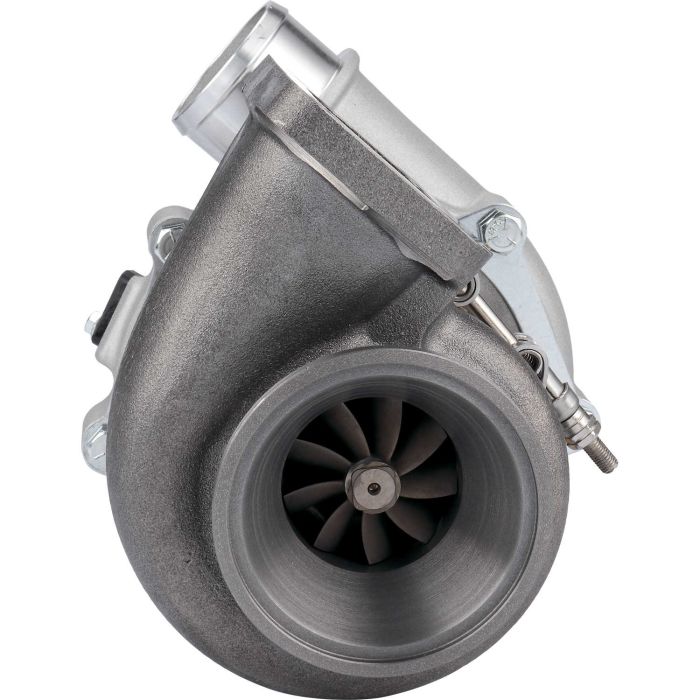

Pulsar PSR 6255G 900HP Turbocharger T3 0.83 Inlet 3" V-Band Outlet Ball Bearing

FMIC.EU High-Performance Cylinder Heads for LS3 Engines

The FMIC.EU high-performance cylinder head was designed specifically for LS3 engines, offering optimal performance on both track and road. Made from 6061-T6 aluminum, it stands out for its high mechanical strength, resistance to high temperatures, and precision CNC machining. The T6 heat treatment increases the hardness and dimensional stability of the material, ensuring durability and reliability in extreme operating conditions. The optimized shapes of the intake runners and combustion chambers provide excellent flow. The enlarged design of the intake and exhaust runners allows for more efficient cylinder filling, which translates into increased airflow efficiency and improved performance across the entire RPM range, without loss of torque at low and medium RPMs. The exhaust port outlet is centered with respect to the valve, allowing for more uniform flow and greater efficiency of the exhaust system.

Material: 6061-T6 aluminum, heat-treated (T6) • Combustion chamber volume: 70 cc • Intake port volume: 273 cc • Intake port dimensions: 31.5 x 67 mm • Exhaust port volume: 94 cc • Exhaust port dimensions: 45.5 x 43 mm • Spark plug position: same as original • Intake valve diameter: 48.5 mm • Exhaust valve diameter: 35 mm • Valve stem diameter: 7.7 mm • Valve spring seat diameter: 40 mm • Valve guide material: manganese bronze • Valve guide outer diameter: 12.50 mm - 14 mm at the base

Design Advantages: • High strength and stability due to the use of 6061-T6 aluminum • Improved flow thanks to optimized port geometry • Better engine response at high RPMs • Durable and wear-resistant manganese bronze guides • Ideal fit with OEM LS3 components

Application: Designed for LS3 engines used in Chevrolet. Pontiac and GM Performance vehicles. Ideal for users seeking high durability, precise workmanship, and a power increase without loss of reliability.
