PRODUCT DESCRIPTION
Product details

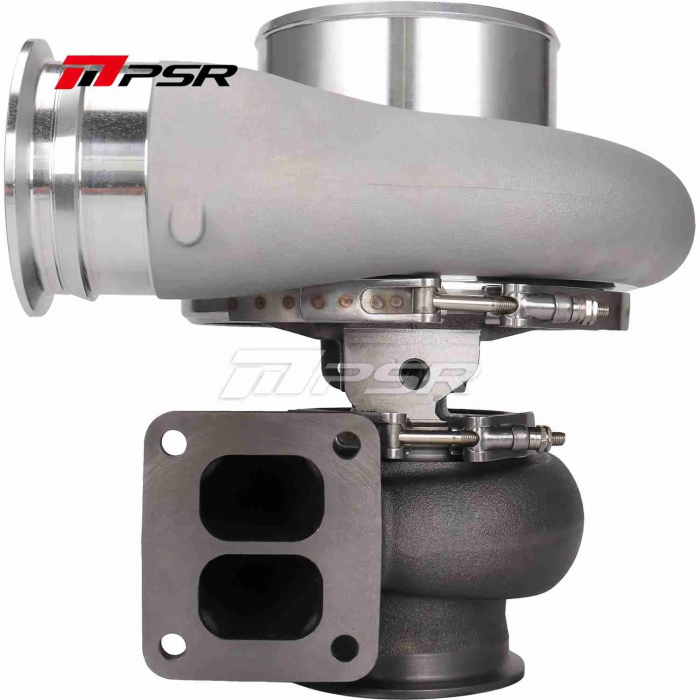

PSR 488 Turbocharger with Billet Compressor Wheel and Journal Bearings
Billet Compressor Wheel with Extended Tip Technology for optimal aerodynamics
Inconel 713 Turbine Wheel for high temperature operation
T6 Divided Turbine Housings in 1.15 A/R, 1.32 A/R, 1.45 A/R, or 1.58 A/R with 5" V-band outlet and 5.75" O.D. Marmon flange
T4 Divided Turbine Housing in 1.10 A/R and 1.25 A/R with 4" V-band outlet
Compressor Housing: Standard
Turbine Housing: 1.25" T4 Divided
Turbine Wheel: 87.4/81.7 mm
Recommended Displacement: 3.0-8.0 L
Horsepower: 750-1550 HP
Features:
Compressor Wheel: 88*116 mm, 7+7 Blades
Billet compressor wheels with extended tip technology
Turbine wheel options: 87.4/81.7 mm, 96/88 mm, 101/91.3 mm, 110/99 mm
STD and T51R MOD options for compressor cover with integrated speed sensor port
-12AN oil drain flange and TRB inlet gasket included in box
Details:
Compressor Inlet: 5.5” slip-fit
Compressor Outlet: V-band
