PRODUCT DESCRIPTION
Product details

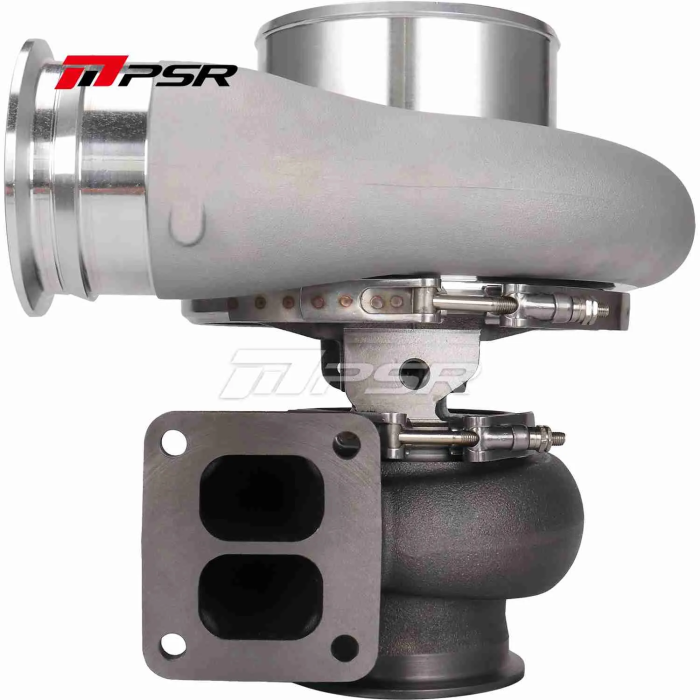

PSR 485G Turbocharger with Billet Compressor Wheel and Journal Bearings
Billet compressor wheel with extended tip technology for optimal aerodynamics
Inconel 713 turbine wheel for high-temperature operation
T6 divided turbine housings in 1.15 A/R, 1.32 A/R, 1.45 A/R, or 1.58 A/R with 5" V-band outlet and 5.75" OD Marmon flange
T4 divided turbine housing in 1.10 A/R, 1.25 A/R with 4" V-band outlet
Compressor Housing: Standard
Turbine Housing: T6 Divided 1.45 A/R
Turbine Wheel: 96/88mm
Recommended Displacement: 3.0-8.0L
Horsepower: 750-1350hp
Features:
Compressor Wheel: 85 x 115mm, 6+6 blades
Billet compressor wheels with extended tip technology
Turbine Wheel: 96x88mm 9+0
STD and T51R MOD available for compressor cover with integrated speed sensor port
-12AN oil drain flange and TRB inlet gasket included in box
Details:
Compressor Inlet: 5.5 inches, slip fit
Compressor Outlet: V-band
Turbine Housing A/R: 1.25, 1.15, 1.32, 1.45, and 1.58 inches (optional)
Turbine Housing Inlet: T4 Divided and T6 Divided (optional)
* V-band flange kits available:
4-inch TRB outlet flange and clamp kit (164340001)
5-inch TRB outlet flange and clamp kit (164340002)
3-inch COMP outlet flange and clamp kit (164340003)
