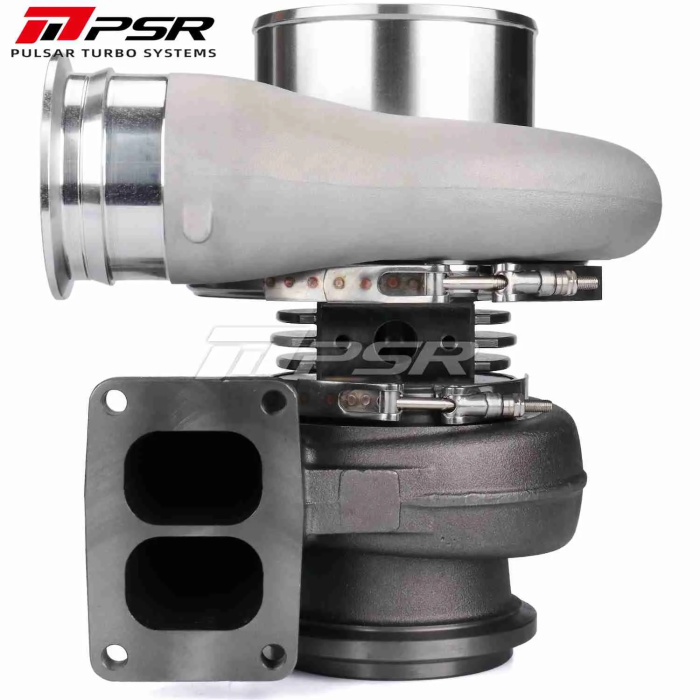

Pulsar PSR 485DG 1.45 T6 Turbocharger with Split Entry and 3/4" Marmon Outlet with Ball Bearing.

ZRP "Heavy Duty" I-Beam series connecting rods for the Ford 2.0L EcoBoost are designed for high power applications. Made from the highest quality 4340 high tensile steel, they feature a shape specially optimized for high performance and extreme durability. They feature a straight cut pin end for increased durability, so they should only be used with aftermarket pistons. The bushings are made from AMPCO 18 material, which offers excellent wear and fatigue resistance, and have a radial groove that acts as an oil reservoir. They are shot peened to relieve material stress and multi-stage heat treated to increase their rigidity. Strict tolerances in the production process ensure a perfect fit and optimize oil clearances. Flex and twist are strictly controlled. Each connecting rod includes ARP 2000 head bolts with a strength of 220,000 psi; optionally, ARP L19 material of 260,000 psi can be purchased as an upgrade. The complete kit is supplied with ARP moly lubricant and full assembly instructions. Additional machining processes

Straight cut pin end: suitable for aftermarket pistons

Dowel sleeves for perfect fit and precise reassembly

Flange cap relief for increased rod end integrity in extreme applications

Grooves on the thrust face for reduced weight

ZRP connecting rod technical features

I-beam shape for increased rigidity

Two-piece forging for high strength

Shot peened for increased fatigue strength

Magnaflux inspection ensures that the consistency of the forged material meets our high quality standards

Double ribbed caps for increased support

Multi-stage heat treatment for maximum strength, dimensional stability and fatigue resistance

CNC machined for superior tolerances, with accuracy up to 0.0002″

Center-to-center distance is maintained below 0.001″ tolerance

Finite Element Analysis (FEA): computer-generated stress analysis of connecting rods

Optimal balancing for weight-matched sets of ± 1 gram
