PRODUCT DESCRIPTION
Product details

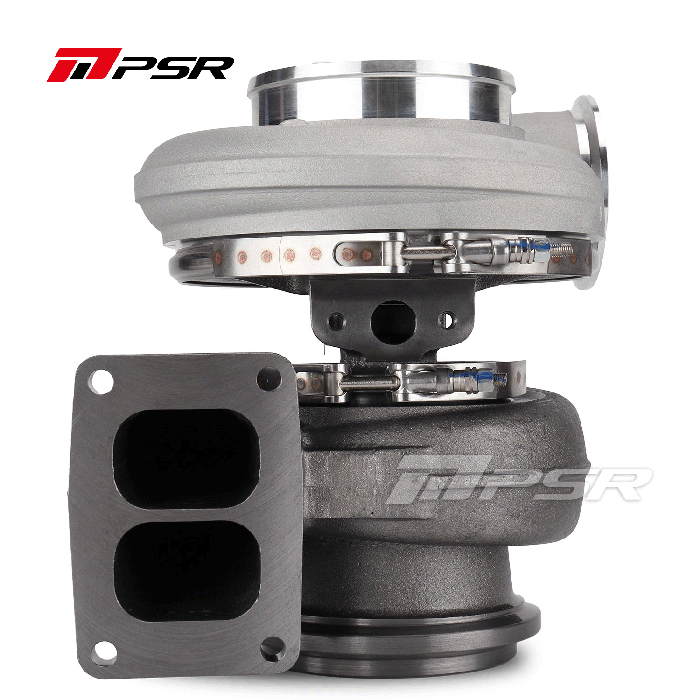

PSR 480G Turbocharger with Machined Compressor Wheel and Journal Bearings
Machined compressor wheel with extended tip technology for optimal aerodynamics
Inconel 713 turbine wheel for high-temperature operation
T6 split turbine housings in 1.15 A/R, 1.32 A/R, 1.45 A/R, or 1.58 A/R with 5" V-band outlet and 5.75" OD Marmon flange
T4 split turbine housing in 0.9 A/R, 1.10 A/R, 1.25 A/R with 4" V-band outlet
Compressor Housing: Standard
Turbine Housing: T6 Split 1.15 A/R
Turbine Wheel: 96/88 mm
Recommended Displacement: 3.0-8.0 L
Horsepower: 750-1250 HP
Features:
Compressor Wheel: 80 x 113 mm, 7+7 blades
Machined compressor wheels with extended tip technology
Turbine Wheel: 96x88 mm 9+0
STD and T51R MOD available for compressor cover
Oil drain flange -12AN and TRB inlet gasket included in box
Details:
Compressor Inlet: 5 inch, slip fit
Compressor Outlet: V-band
Turbine Housing A/R: 1.25A/R, 1.15A/R, 1.32A/R, 1.45A/R, and 1.58A/R available
Turbine Housing Inlet: T4 split and T6 split available
* V-band flange kits available:
TRB 4 inch outlet V-band flange and clamp kit (164340001)
TRB 5 inch outlet V-band flange and clamp kit (164340002)
COMP 3 inch outlet V-band flange and clamp kit (164340003)
