PRODUCT DESCRIPTION
Product details

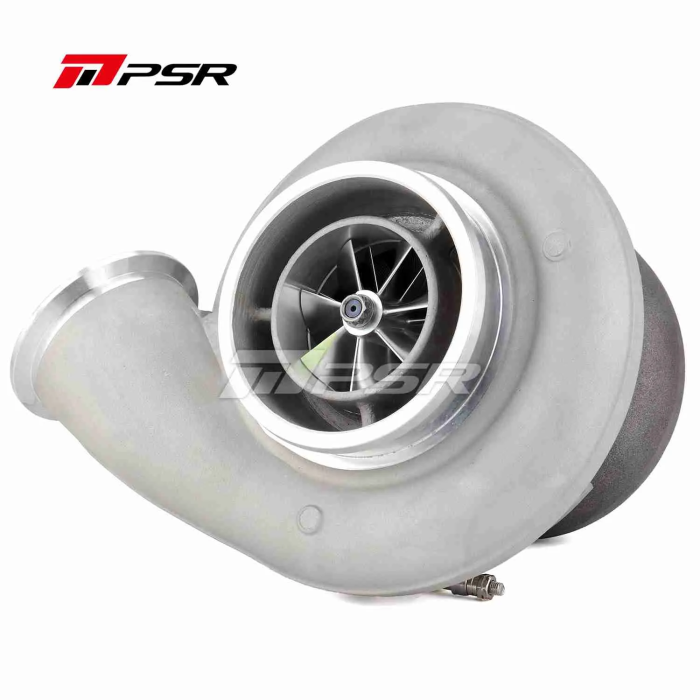

PSR 480D Turbine with double ball bearing and machined compressor wheel in forged aluminum
CNC machined bearing housing with finned cooling design
Dual ceramic ball bearing systems
80mm compressor wheel options
Machined compressor wheels in forged aluminum with extended tip technology
102/91mm turbine with 10+0 blades and 109/99mm with 10+0 blades
Standard cover and T51R MOD available with integrated speed sensor port
-12AN oil drain flange and TRB inlet gasket included
It is strictly forbidden to turn off the engine when hot
Compressor housing: Standard
Turbine housing: T6 divided 1.45 A/R
Turbine wheel: 102/91 mm
Recommended displacement: 3.0-8.0 L
Power: 750-1250 HP
Features:
CNC machined bearing housing with finned cooling design
Dual ceramic ball bearing systems
80mm compressor wheel options
Machined aluminum compressor wheels with extended tip technology
102/91mm and 109/99mm turbine wheel options
Standard cover and T51R MOD available for compressor cover
-12AN oil drain flange and TRB inlet gasket included
Review: 480D, 1115 hp at 57 psi, fuel: M1 alcohol
Details:
Compressor Inlet: 5” Slip-Fit
Compressor Outlet: V-band
Turbine Housing A/R: 1.15, 1.32, 1.45, and 1.58 inch (optional)
Turbine Housing Inlet: Open T6 and Divided T6 (optional)
Turbine Housing Outlet: 3/4" Marmon V-band
Oil Feed Port: 1/4 NPT
Oil Drain: Standard T6 drain flange
*? V-band flange kits available:
4" TRB outlet flange and clamp kit (164340001)
5" TRB outlet flange and clamp kit (164340002)
3" COMP outlet flange and clamp kit (164340003)
3.5" COMP outlet flange and clamp kit (164340004)
4" COMP outlet flange and clamp kit (164340005)
