PRODUCT DESCRIPTION
Product details

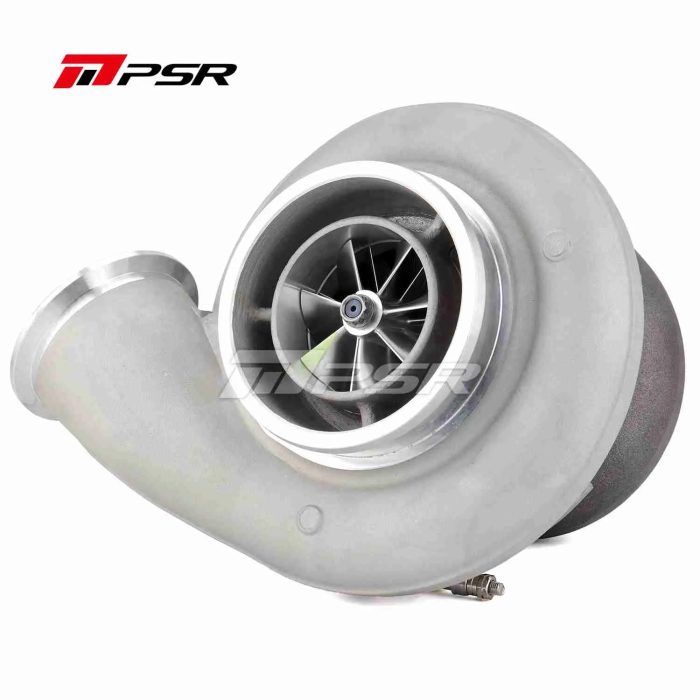

PSR 480D compressor turbine with dual ball bearing and fin design
CNC machined bearing housing with finned cooling design
Ceramic dual ball bearing systems
80mm compressor turbine options
Finned compressor turbines with extended tip technology
102/91 mm turbine wheels with 10+0 blades and 109/99 mm with 10+0 blades
Standard and T51R MOD maps available with integrated speed sensor port
-12AN oil drain flange and TRB. Inlet gasket included in box
It is strictly forbidden to shut down the engine when hot
Compressor housing: Standard
Turbine housing: T6 split 1.15 A/R
Turbine wheel: 102/91 mm
Recommended displacement: 3.0-8.0 L
Power: 750-1250 HP
Features:
CNC machined bearing housing with finned cooling design
Ceramic dual ball bearing systems
80mm compressor wheel options
Billet compressor wheels with extended tip technology
102/91mm and 109/99mm turbine wheel options
Compressor cover options: STD and T51R MOD
-12AN oil drain flange and TRB. Inlet gasket included in box
Review: 480D, 1115 HP @ 57 psi, Fuel: M1 Alcohol
Details:
Compressor Inlet: 5” Slip-Fit
Compressor Outlet: V-band
Turbine Housing A/R: 1.15, 1.32, 1.45, & 1.58 in (optional)
Turbine Housing Inlet: T6 Open & T6 Split (optional)
Turbine Housing Outlet: 3/4" Marmon V-band
Oil Feed Port: 1/4 NPT
Oil Drain: Standard T6 Drain Flange
* V-band flange kits available:
4" TRB Outlet Flange & Clamp Kit (164340001)
5" TRB Outlet Flange & Clamp Kit (164340002)
3" COMP Outlet Flange & Clamp Kit (164340003)
3.5" COMP Outlet Flange & Clamp Kit (164340004)
4" COMP Outlet Flange & Clamp Kit (164340005)
