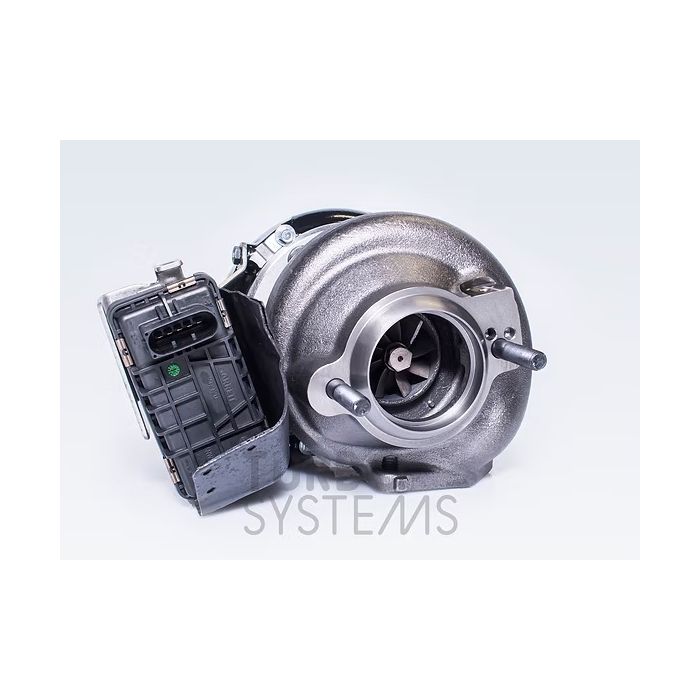

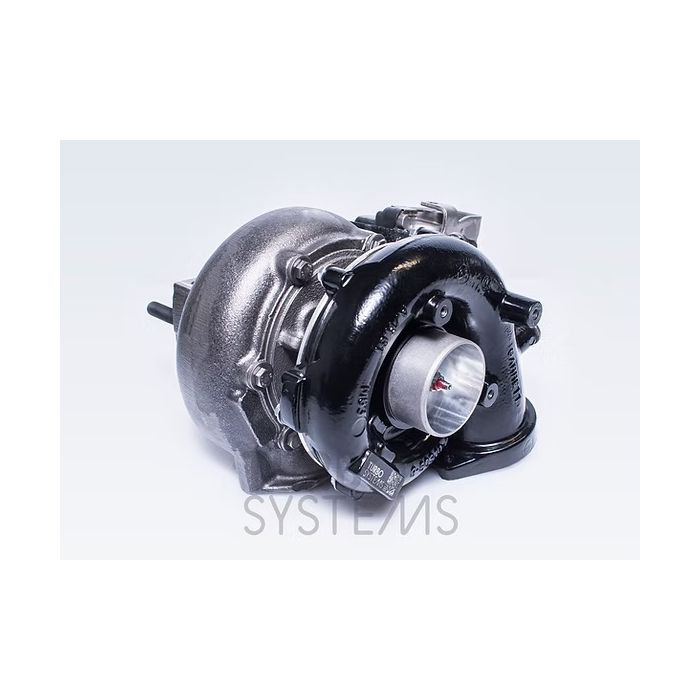

TurboSystems HTD2872 350HP Electronic Turbocharger for BMW E60 E61 E65

Easy-to-install BMW turbocharger for older models with M57N diesel engines: E60, E61, E65, and E53 models with vacuum control, and E60 and E61 with electronic actuator. Increased power thanks to the improved compressor and variable geometry. Designed to work with the original exhaust manifold and other engine units.

Features of Turbosystems turbocharger for BMW M57N (HTD2872):

Improved bearing system;

CNC-machined compressor housing;

CNC-machined turbine housing;

OEM variable geometry nozzle;

Reinforced compressor wheel machined from a solid piece (50/72 mm);

Larger turbine wheel (51/49 mm);

Refurbished housings;

Flow bench tested;

VSR balanced;

Power range: up to 350+ hp

Features of Turbosystems turbocharger for BMW M57N (HTD3073NG):

Twin ceramic ball bearing;
New generation reinforced compressor wheel, machined from a solid 50/73 mm piece with 6+6 blades;

Enlarged 9-blade turbine wheel (58/54 mm);

New generation enlarged variable geometry;

New special cast turbine housing;

VSR balanced CHRA;

Power range: 400+ hp

Option with vacuum boost control compatible with:

Model
Year
Engine Code
Power (kW / hp)
Garrett No.
OEM No.

BMW 530 d (E60 / E61)

2002 - 2005

M57N

160 / 218

1165778908377890837789081

725364-9022S725364-5022S725364-5021S725364-5018S725364-5012S725364-0009725364-0007725364-0004/5/6

BMW 730 d (E65)

2002 - 2005

M57N

160 / 218

1165778908377890837789081

725364-9022S725364-5022S725364-5021S725364-5018S725364-5012S725364-0009725364-0007725364-0004/5/6

Option with vacuum boost control for E53, compatible with:

Model
Year
Engine Code
Power (kW / hp)
Garrett No.
OEM No.

X5 3.0 d (E53)

2003 - 2007

M57N

160 / 218

753392-5019S753392-9019S753392-5018S753392-5015S753392-0018742417-0001

1165779104611657791044

Option with electronic boost control compatible with:

Model
Year
Engine Code
Power (kW / hp)
Garrett No.
OEM Part No.

BMW 530 d (E60 / E61)
2002 - 2005
M57N
160 / 218
116524143301165241433211657790308
742730-5019S742730-9019S742730-5018S742730-5015S742730-5003S742730-0001
