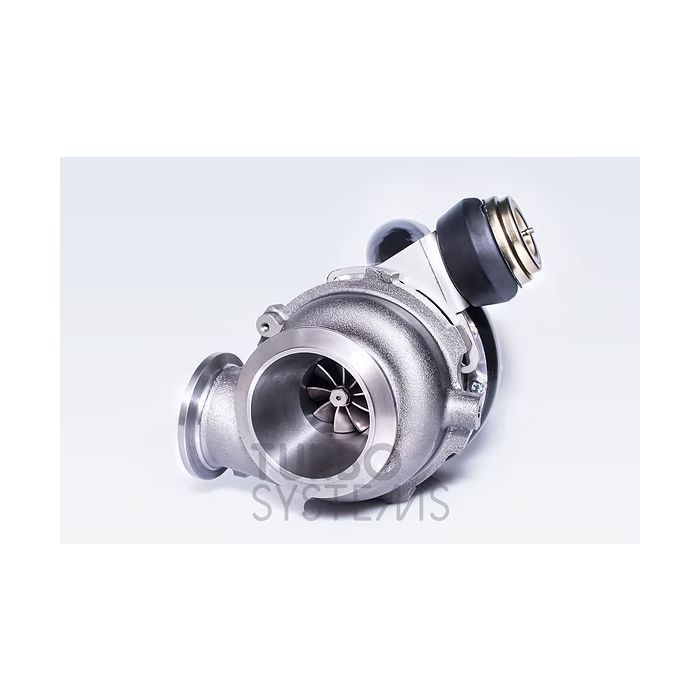

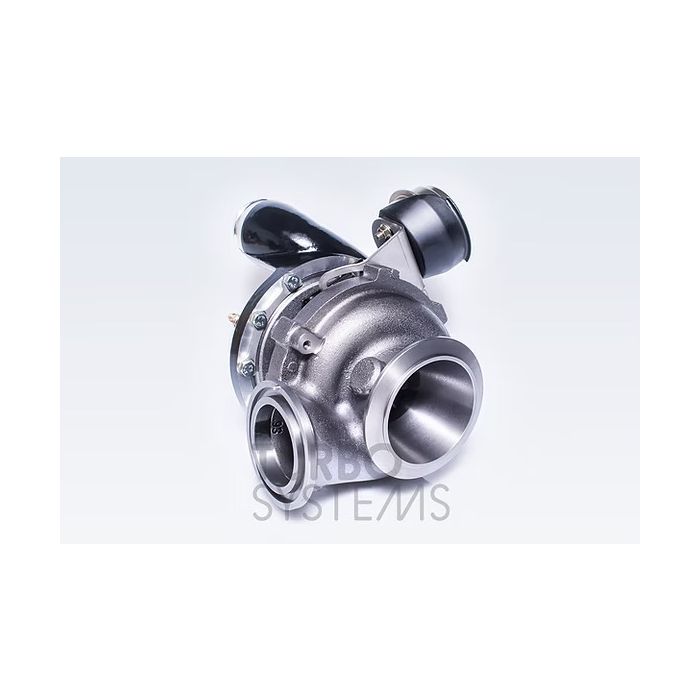

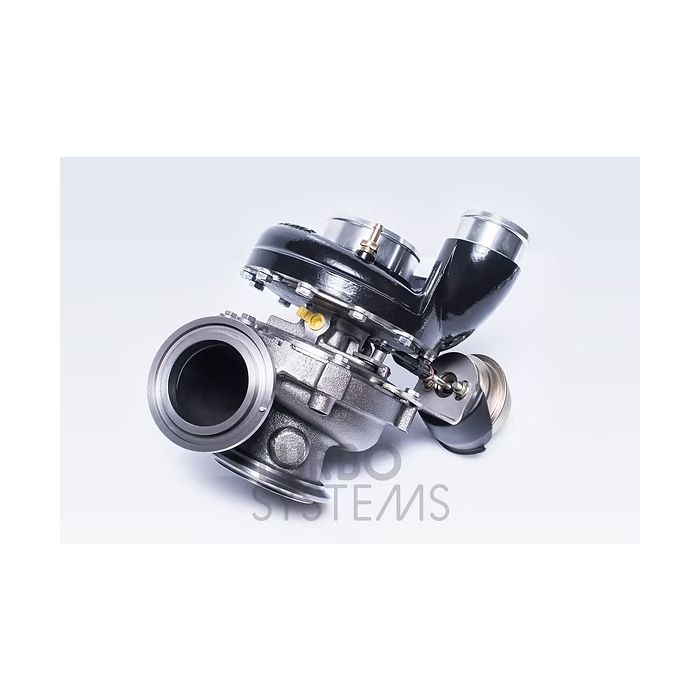

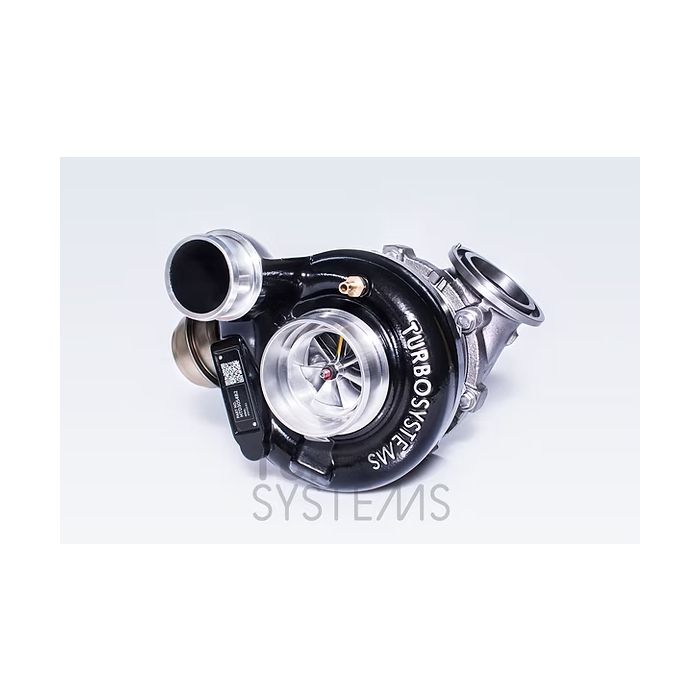

TurboSystems HTD305XB2 universal diesel turbocharger

Created by TurboSystems from our BMW diesel engine turbocharger base, the HTD3054B2 is designed for universal fitment and efficient power gains. It incorporates the most common V-band exhaust and manifold connections, a custom-reinforced compressor wheel, a durable dual ceramic ball-bearing core, and a vacuum-controlled actuator. This combination ensures rapid response, high reliability, and excellent performance under demanding conditions. Thanks to the state-of-the-art variable geometry system, the turbo offers improved response across the entire rev range and robust power delivery.

HTD3054B2 Specifications

Compressor side:

Compressor wheel: 7+7 blades, custom reinforced;

Inducer: 54 mm;

Exducer: 73 mm;

Air inlet: 76 mm / 2";

Air outlet: 90° 51 mm / 2";

Core:

custom dual ceramic ball bearing;

state-of-the-art variable geometry;

Turbine side:

Turbine housing based on BMW F10 3.0d turbocharger;

Turbine wheel: 9 blades;

Inducer: 58 mm;

Exducer: 54 mm;

Flange: V-band flange for BMW manifold;

Exhaust connection: V-band flange;
