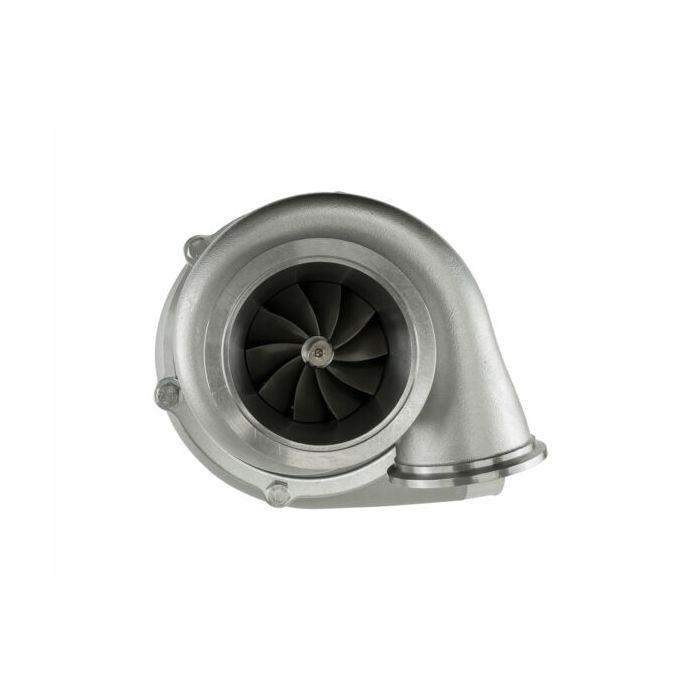

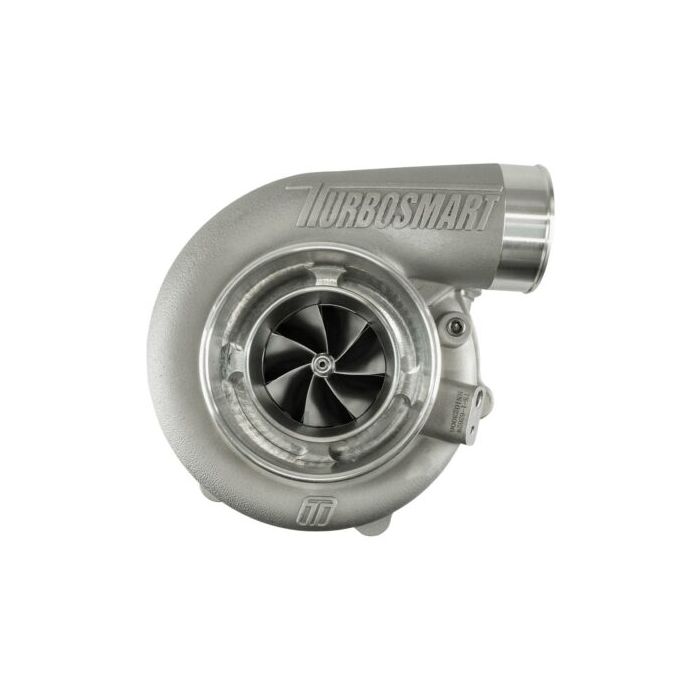

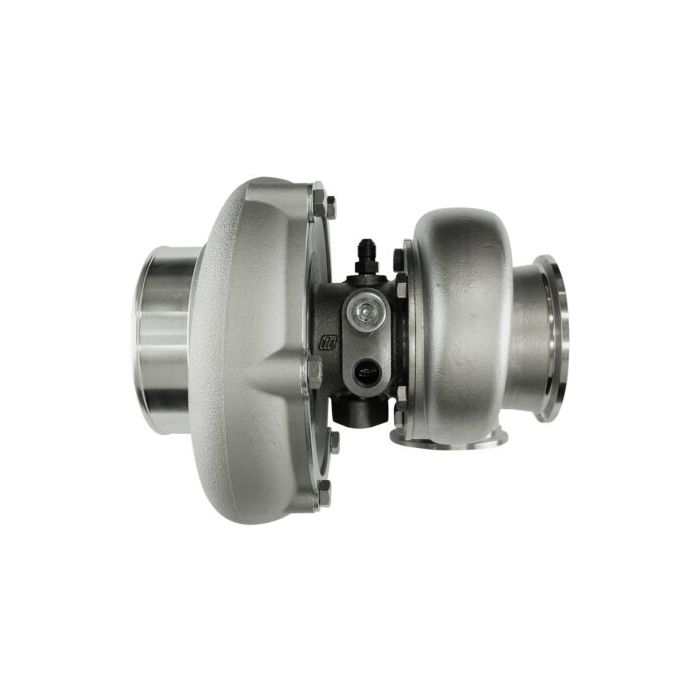

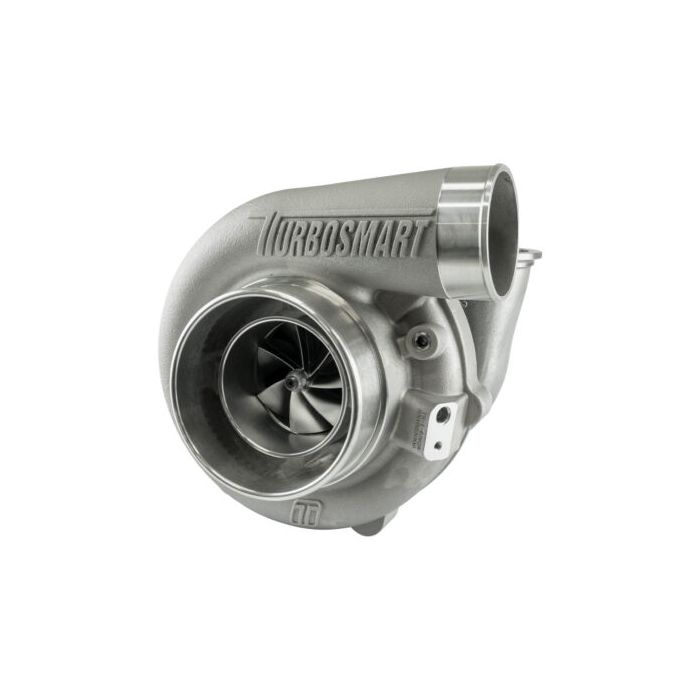

Turbosmart TS-2 High Performance Turbocharger TS-2-7170VB096E Water Cooled 7170 V-Band 0.96AR with External Wastegate

Smaller, Lighter, Faster - The Turbosmart TS-2 Turbocharger series has been developed leveraging modern materials, design and manufacturing techniques to create a range of turbochargers that meets the demands of both motorsport enthusiasts and high-performance seekers alike.

The TS-2 series oil & water cooled turbochargers feature lightweight investment cast turbine housings, a proprietary bearing & main shaft combination delivering unimaginable transient response with the performance, quality, reliability and support you expect from Turbosmart.

The ultra-low rotating mass of our unique bearing & shaft assembly combines with aggressive compressor aerodynamics to ensure high performance at low shaft speeds. Furthermore, a unique turbine ensures power is maintained even at high loads and flow rates.

The TS-2 turbocharger series takes a holistic approach to the engine, looking to achieve power through lower back pressure and high-performance turbines, while being smaller, lighter, and quicker to respond than other solutions on the market.
Oil Cooled InTS-1 Turbochargers, Oil & Water Cooled TS-2 Turbochargers, V-Band Flange, Various T3 & T4 Flange Options, Reverse Rotation (Select Sizes), Various AR Options, Internal & External Wastegate Options Available.

Features: Unrivalled Transient Response, Aggressive Aerodynamics with 7+7 Split Wheels, Lightweight Lost Wax Cast 310s Stainless Steel Turbine Housings, Lightweight Aluminium Compressor Covers, CFD Designed Housings for Optimal AR & Flow, Inconel T14 Turbine Wheel for Extreme Exhaust Gas Temperatures, VSR Speed Balanced, Proprietary Ceramic Dual Ball Bearing System, Integrated Iron Backplate to Center Housing.

Specifications:

Power Rating: 1025HP

Compressor Inlet: 4" / 101.6mm
Compressor Inducer: 71mm
Turbine Inlet: V-Band (2.25")
Turbine Exducer: 70mm
Turbine AR: 0.96
Turbine Outlet: V-Band (3.00″) Weight: 6.06kg / 13.3lbs
