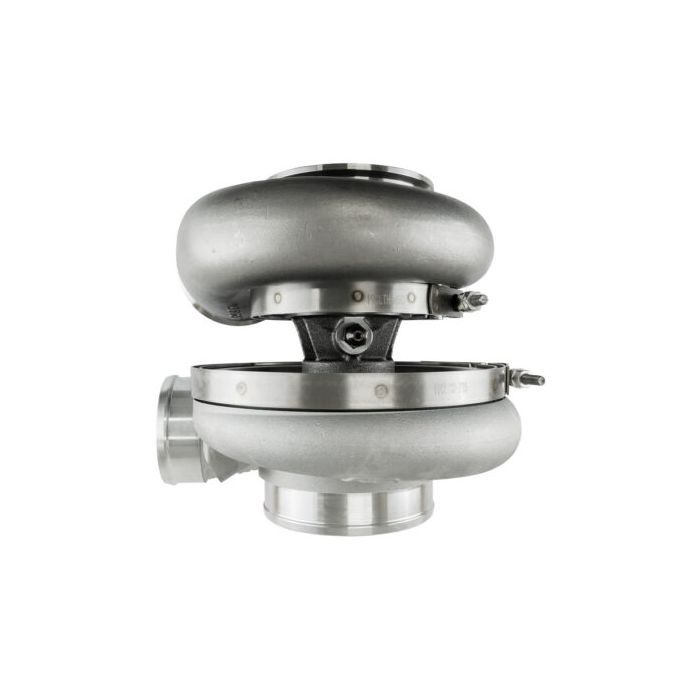

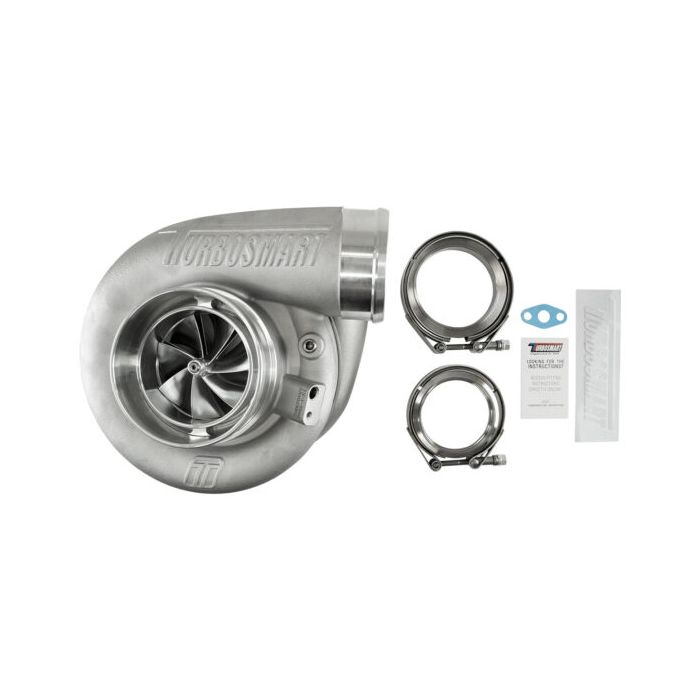

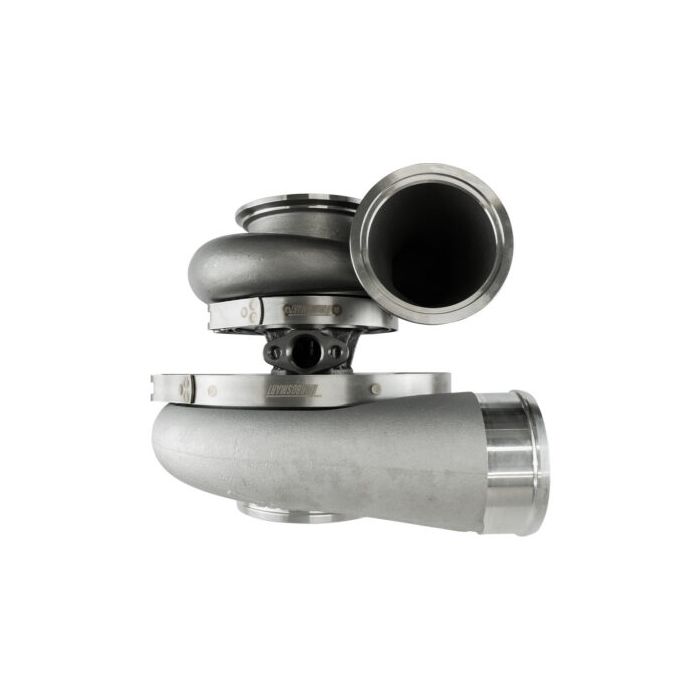

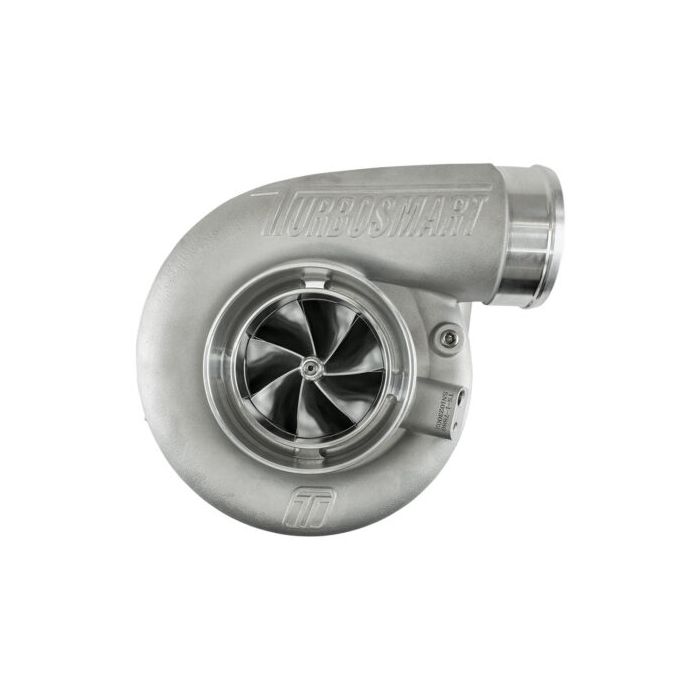

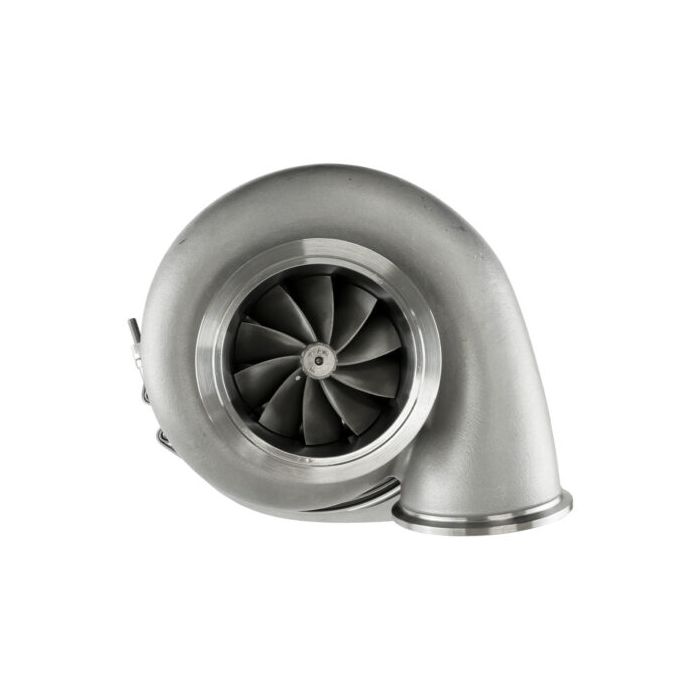

Turbosmart TS-1 High Performance Turbocharger TS-1-7880VB096E 7880 V-Band 0.96AR with External Wastegate

Smaller, lighter, and faster: The Turbosmart TS-1 series of turbochargers has been developed by leveraging modern materials, design, and manufacturing techniques to create a range of turbochargers that meets the demands of both competition drivers and performance enthusiasts.

The oil-cooled TS-1 series turbochargers feature lightweight investment-cast stainless steel turbine housings and a proprietary bearing and main shaft combination that provides unimaginable transient response, with the performance, quality, reliability, and support that are hallmarks of Turbosmart.

The ultra-low rotational mass of our unique bearing and shaft assembly is combined with aggressive compressor aerodynamics to ensure high levels of performance at low shaft speeds. Additionally, it incorporates a unique Inconel T14 turbine wheel to ensure power is maintained at high loads and flow rates.

The TS-1 series of turbochargers takes a comprehensive approach to increasing engine performance, aiming to achieve power through lower backpressure and high-performance turbines while offering a faster, lighter, and more compact response than other solutions on the market. Oil-cooled InTS-1 turbochargers, oil and water-cooled TS-2 turbochargers, V-Band, T3, and T4 flanges (various options), reverse rotation (selected sizes), various aspect ratio (AR) options, internal and external wastegate options available.

Features: Unmatched transient response, aggressive aerodynamics with 7+7 split wheels, lightweight 310s stainless steel turbine housings, lightweight aluminum compressor covers, CFD-designed housings for optimal aspect ratio and flow, Inconel T14 turbine wheel for extreme exhaust gas temperatures, VSR speed balancing, patented dual ceramic bearing system, integrated iron backplate in the center housing.

Specifications:

Rated Power: 1425 HP

Compressor Inlet: 4" / 101.6 mm
Compressor Inducer: 78 mm
Turbine Inlet: V-Band (3.00")
Turbine Exducer: 80 mm
Turbine Aspect Ratio (AR): 0.96
Turbine Outlet: V-Band (3.50″) Weight: 6.43 kg / 14.17 lbs
