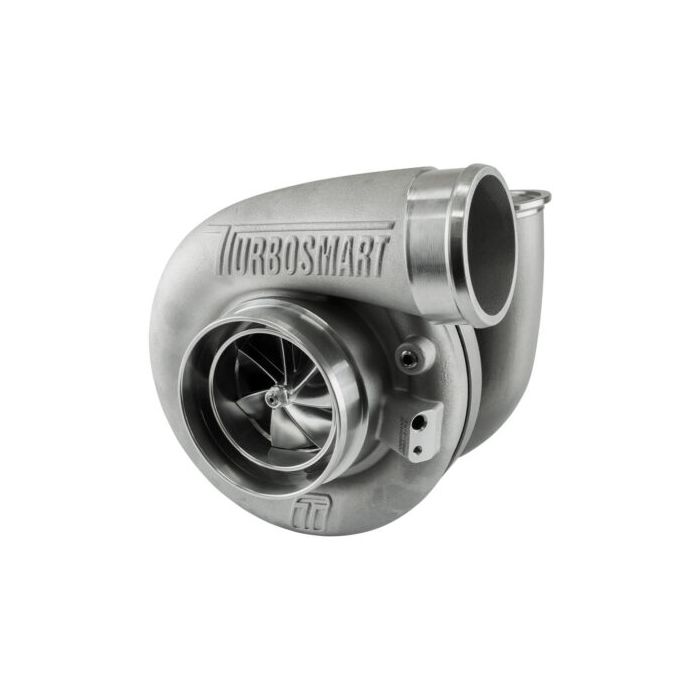

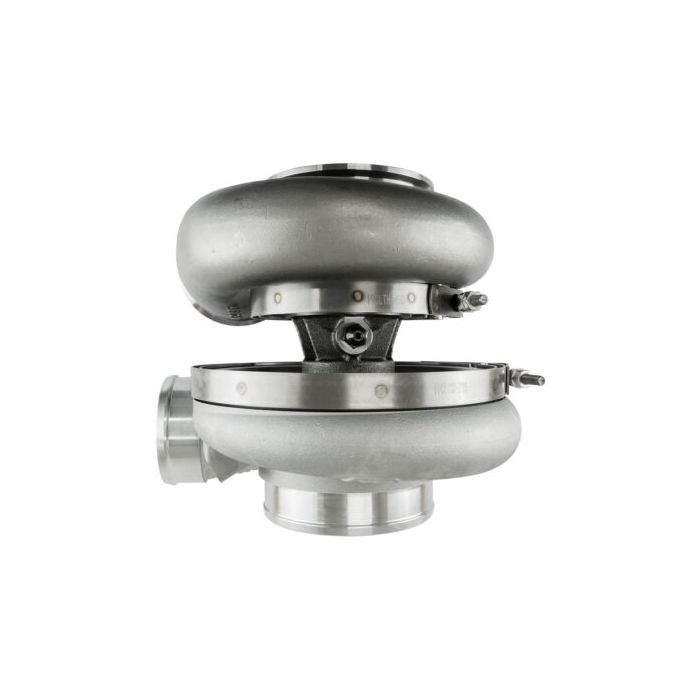

Turbosmart TS-1 High-Performance Turbocharger TS-1-7675VB096E 7675 V-Band 0.96AR with External Wastegate

Smaller, Lighter & Faster – The Turbosmart TS-1 series turbocharger range has been developed by harnessing modern materials, design, and manufacturing techniques to create a range of turbochargers that meets the demands of both motorsport competitors and performance enthusiasts.

TS-1 Series oil-cooled turbochargers feature lightweight investment cast stainless steel turbine housings, a proprietary bearing and main shaft combination that provides unimaginable transient response, all while delivering the performance, quality, reliability, and support Turbosmart is renowned for.

Our unique bearing and shaft assembly’s ultra-low rotating mass combine with aggressive compressor aerodynamics to ensure high levels of performance at low shaft speeds. Furthermore, a unique Inconel T14 turbine wheel is incorporated to ensure power is maintained at high loads and flow rates.

The TS-1 turbocharger series takes a holistic approach to increasing engine performance, seeking to achieve power through lower back pressure and high performing turbines, while also delivering a faster, lighter and more compact response than other solutions on the market. InTS-1 oil-cooled turbochargers, TS-2 oil and water cooled turbochargers, V-Band flange, various T3 & T4 flange options, reverse rotation (selected sizes), various AR options, internal and external wastegate options available.

Features: Unrivaled Transient Response, Aggressive Aerodynamics with 7+7 Splitter Wheels, Lightweight Investment Cast 310s Stainless Steel Turbine Housings, Lightweight Billet Aluminum Compressor Covers, CFD Designed Housings for Optimal Aspect Ratio & Flow, Inconel T14 Turbine Wheel for Extreme EGT’s, VSR Speed Balanced, Proprietary Dual Ceramic Ball Bearing System, Integrated Iron Back Plate in Centre Housing.

Specifications:

Power Rating: 1350HP

Compressor Inlet: 4" / 101.6mm
Compressor Inducer: 76mm
Turbine Inlet: V-Band (3.00")
Turbine Exducer: 70mm
Turbine AR: 0.96
Turbine Outlet: V-Band (3.50″) Weight: 6.43kg / 14.17lb
