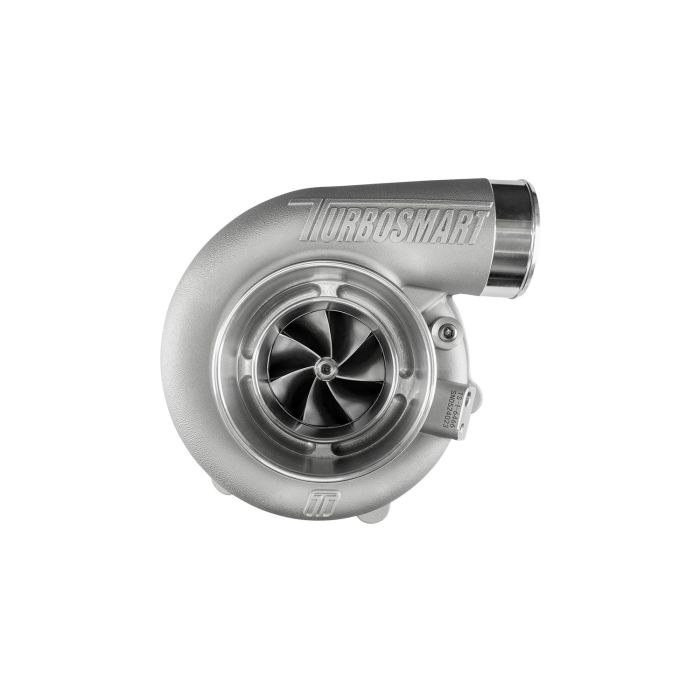

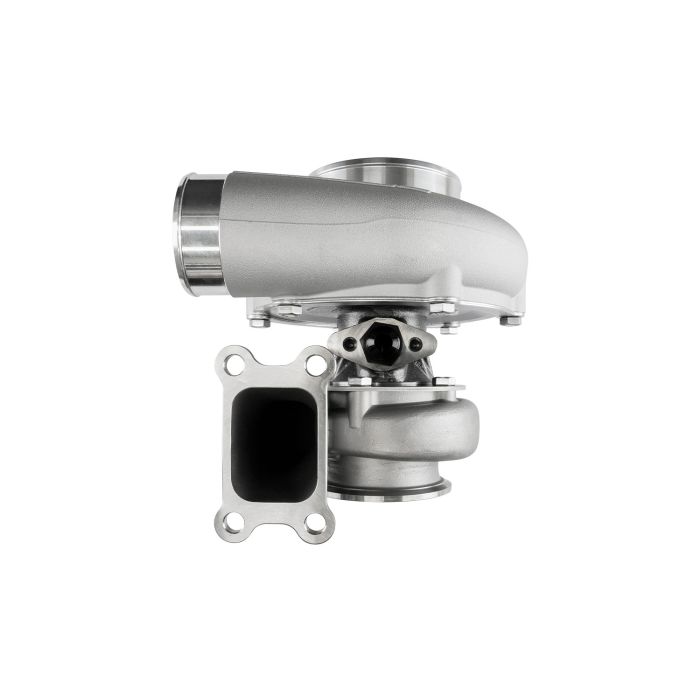

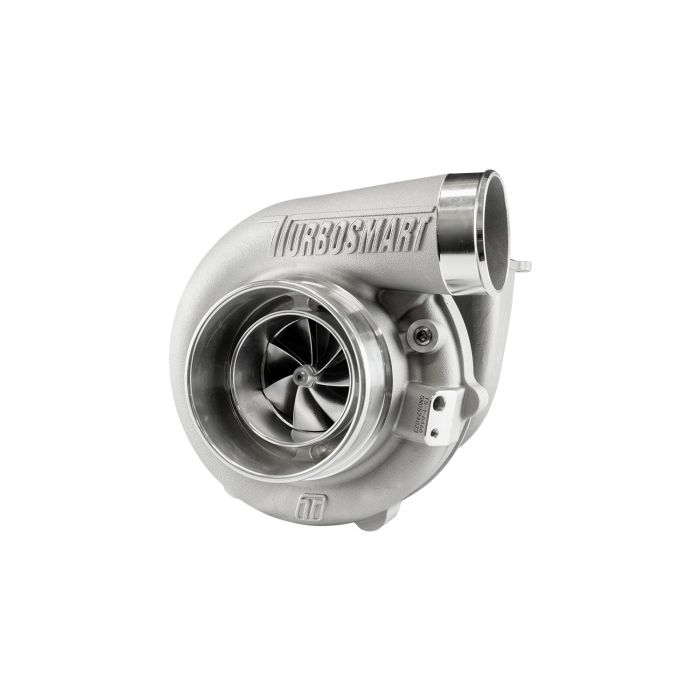

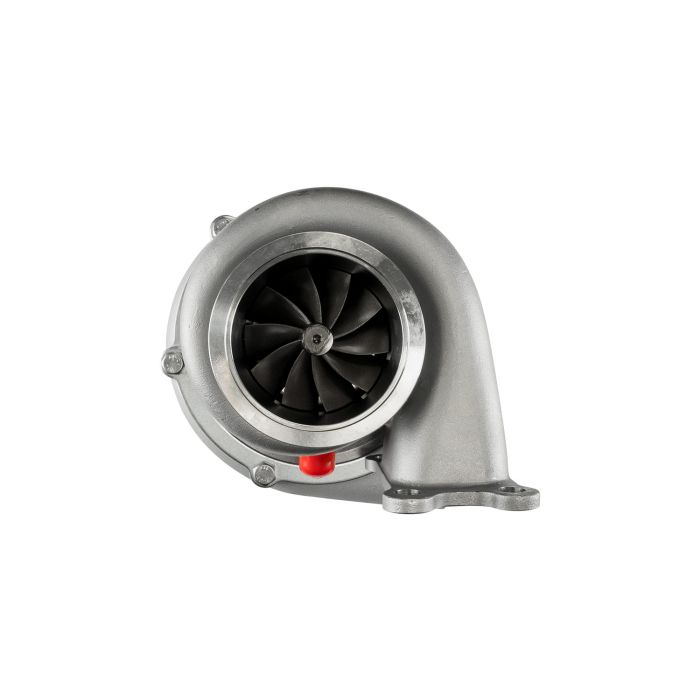

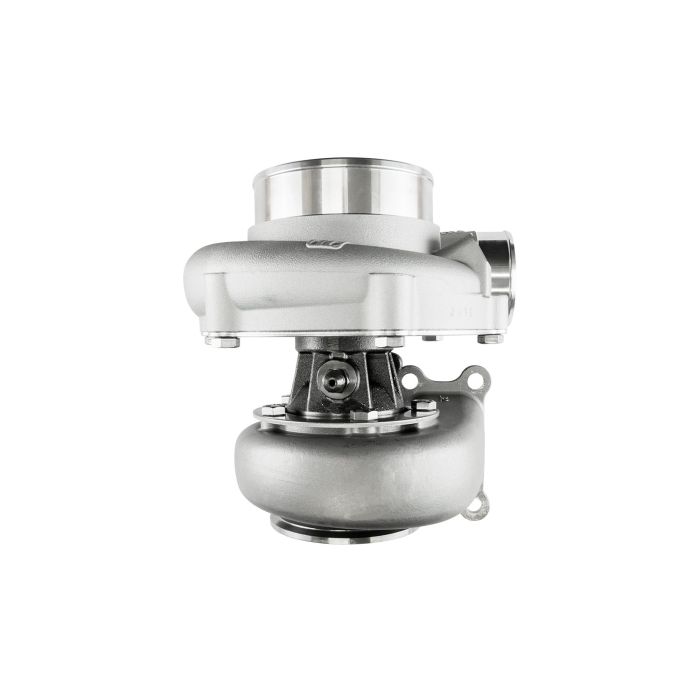

Turbosmart TS-1 6466 T3 1.01AR High-Performance Turbocharger with external wastegate

Smaller, lighter, and faster: the Turbosmart turbocharger series has been developed using modern materials, design, and manufacturing techniques to create a range that meets the demands of both motorsport and performance enthusiasts.

Each Turbosmart turbocharger includes everything needed for installation as standard: weld flanges, V-band clamps, gaskets, and oil feed and drain fittings.

The TS-1 series consists of oil-cooled turbochargers with lightweight, investment-cast turbine housings, and a proprietary bearing and shaft combination that provides unimaginable transient response, with the performance, quality, reliability, and support that characterize Turbosmart.

The ultra-low rotating mass of our unique bearing and shaft assembly is paired with aggressive compressor aerodynamics to ensure high performance at low shaft speeds. Additionally, a unique turbine ensures that power is maintained even at high loads and flow rates.
All Turbosmart turbochargers have been designed with a holistic engine approach, aiming to achieve power through lower backpressure and high-performance turbines, while being smaller, lighter, and offering faster response than other solutions on the market. Available in:

TS-1 Oil-cooled turbochargers

TS-2 Oil and water-cooled turbochargers
V-Band, various T3 and T4 flange options

Reverse rotation (select sizes)
Various A/R (Air/Fuel Ratio) options
Internal and external wastegate options available

Features

Unrivaled transient response
Aggressive aerodynamics with 7+7 2618 aluminum splitter wheels
Lightweight investment-cast 310s stainless steel turbine housings
Lightweight aluminum compressor cover
CFD-designed housings for optimal A/R and flow
Inconel 713C turbine wheel for extreme exhaust gas temperatures
VSR speed balanced
Patented dual ceramic ball bearing system
Integrated iron backplate in the center housing

Specifications

Compressor inlet: 4″ / 101.6 mm
Compressor inducer: 64 mm
Turbine inlet: T3 flange
Turbine exducer: 66 mm
Turbine A/R: 1.10
Turbine outlet: V-Band clamp (3.00″)

Weight: 6.06 kg / 13.3 lb

Power: 825-955 HP

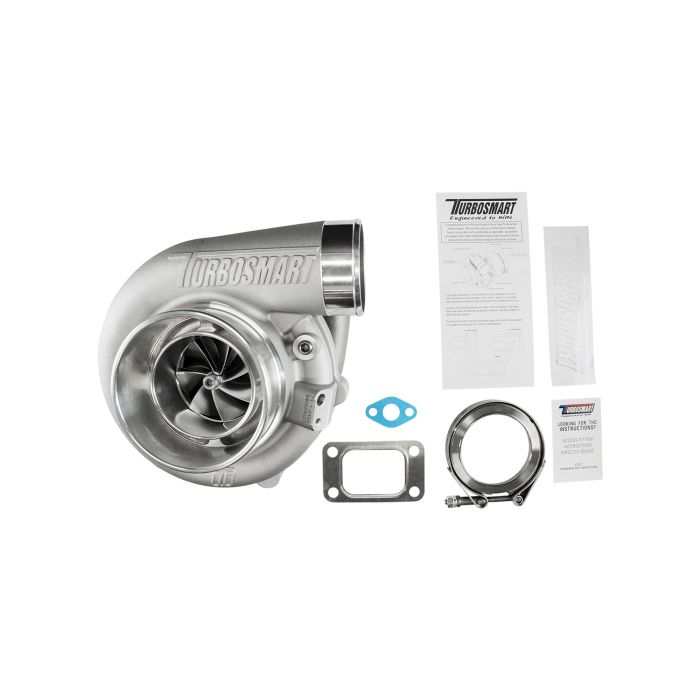

Includes:

1 Turbosmart Performance turbocharger

1 Weld flange (turbine outlet)

1 V-Band clamp (turbine outlet)

1 Oil drain gasket
