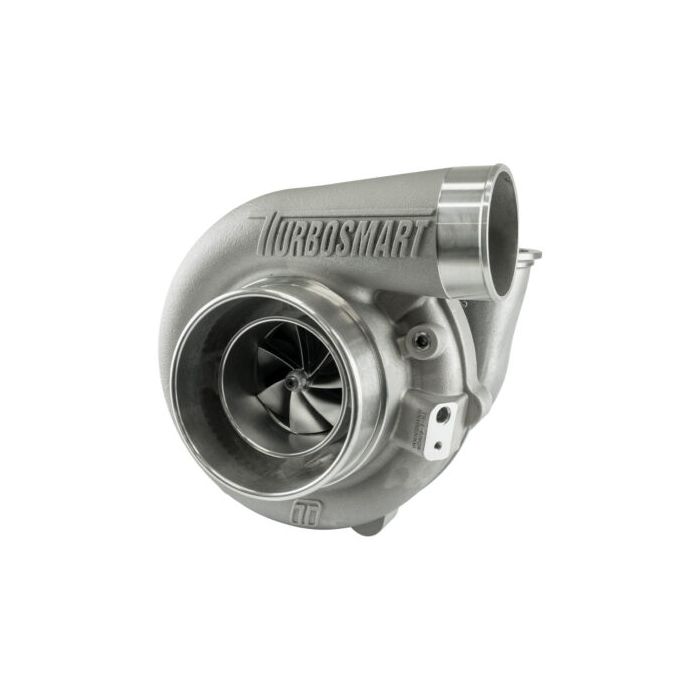

Turbosmart TS-2 High Performance Turbo TS-2-6466VB082E Water Cooled 6466 V-Band 0.82AR with External Wastegate

Smaller, Lighter, & Faster: Turbosmart’s TS-2 series of turbos has been developed to take advantage of modern materials, design and manufacturing techniques, creating a range of turbos that caters to the demands of both motorsport enthusiasts and those looking for high-performance. Oil & water cooled, TS-2 series turbos feature lightweight turbo housings made with precision casting, a proprietary bearing & main shaft combination that provides unimaginable transient response, with the performance, quality, reliability and support you've come to expect from Turbosmart. The ultra-low rotating mass of our unique bearing and shaft assembly is paired with aggressive compressor aerodynamics to ensure strong low-shaft speed performance, along with a proprietary turbo that ensures power is maintained at high loads and flow rates. The TS-2 series of turbos takes a holistic engine approach, looking to achieve power through reduced backpressure and high-performing turbos, while delivering a smaller size, lighter weight, and faster response than other solutions on the market.

Available in:
Oil Cooled TS-1 Turbos
Oil & Water Cooled TS-2 Turbos
V-Band, T3 and T4 Flange Options
Reverse Rotation (selected sizes)
Various A/R Options
Internal & External Wastegate Options Available

Features:
Unrivalled Transient Response
Aggressive Aerodynamics with 7+7 Split Wheels
Lost Wax Cast 310s Stainless Steel Lightweight Turbo Housings
Lightweight Aluminium Compressor Covers
CFD Designed Housings for Optimal A/R and Flow
Inconel T14 Turbo Wheel for Extreme Exhaust Gas Temperatures
VSR Speed Balanced
Proprietary Dual Ceramic Ball Bearing System
Integrated Iron Back Plate into Centre Housing

Specifications

Power: 930HP

Compressor Inlet: 4" / 101.6mm
Compressor Inducer: 64mm
Turbo Inlet: V-Band (2.25")
Turbo Exducer: 64mm
Turbo A/R: 0.82
Turbo Outlet: V-Band (3.00")
Weight: 6.06kg / 13.3lb
