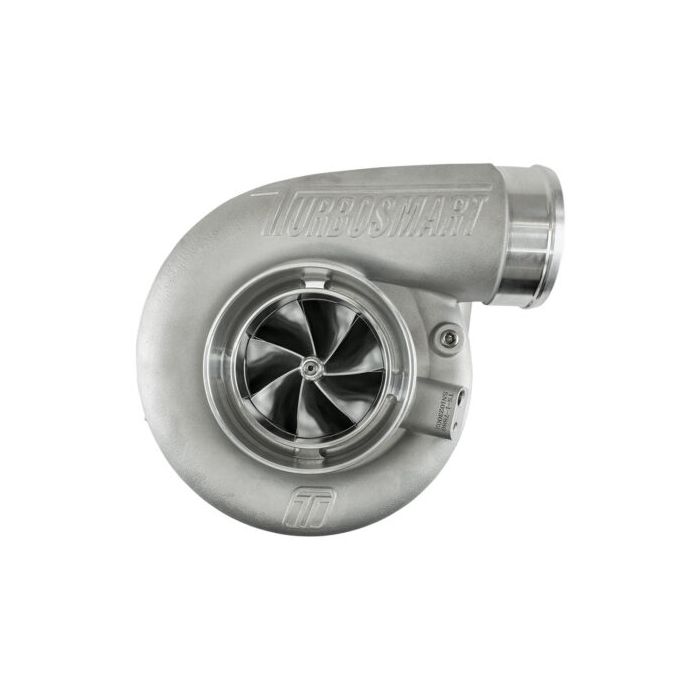

Turbosmart High-Performance Turbo TS-1 TS-1-7675T4096E 7675 T4 0.96AR with External Wastegate

Smaller, lighter, and faster: The Turbosmart TS-1 series of turbos has been developed to take advantage of modern materials, design, and manufacturing techniques, creating a range of turbos that meet the demands of both motorsport enthusiasts and high-performance aficionados.

TS-1 series turbos are oil-cooled and feature lightweight investment cast stainless steel turbine housings. A patented bearing and main shaft system provide unimaginable transient response, with the performance, quality, reliability, and support characteristic of Turbosmart.

The ultra-low rotating mass of our exclusive bearing and shaft assembly combines with aggressive compressor aerodynamics to ensure high performance at low shaft speeds. Additionally, it incorporates an exclusive T14 Inconel turbine wheel to ensure power is maintained at high loads and flow rates.

The TS-1 series of turbos takes a comprehensive approach to increasing engine performance, seeking to achieve power through lower back pressure and high-performance turbos, all in a smaller, lighter, and faster format.

Available in:
TS-1 oil-cooled turbos
TS-2 oil and water-cooled turbos
V-Band, T3, and T4 flange options
Reverse rotation (selected sizes)
Various A/R options
Internal and external wastegate options available

Features:
Unparalleled transient response
Aggressive aerodynamics with 7+7 split wheels
Lightweight 310s investment cast stainless steel turbine housings
Lightweight aluminum compressor covers
CFD-designed housings for optimal A/R and flow
T14 Inconel turbine wheel for extreme EGTs
VSR speed balanced
Patented ceramic dual ball bearing system
Integrated iron backplate in the center

Specifications

Power: 1350 HP

Compressor inlet: 4" / 101.6 mm
Compressor inducer: 76 mm
Turbine inlet: T4
Turbine exducer: 75 mm
Turbine A/R: 0.96
Turbine outlet: V-Band (3.50")
Weight: 6.43 kg / 14.17 lb
