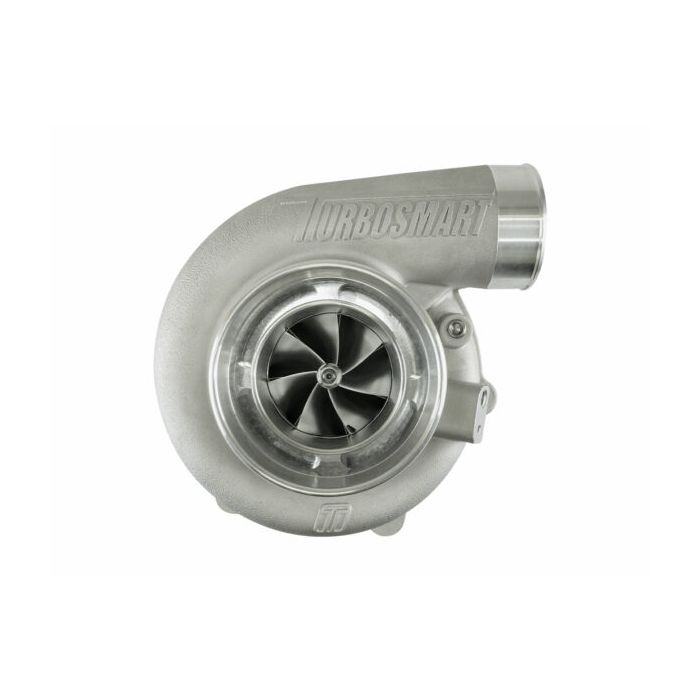

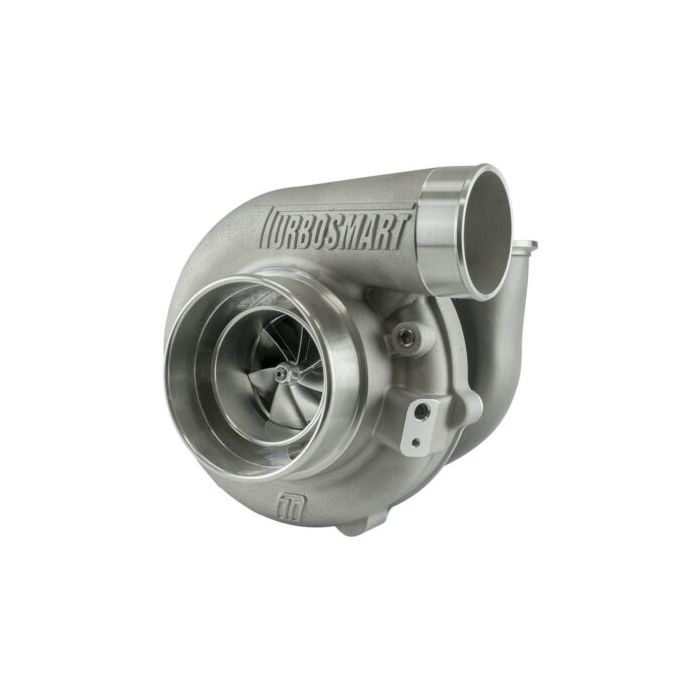

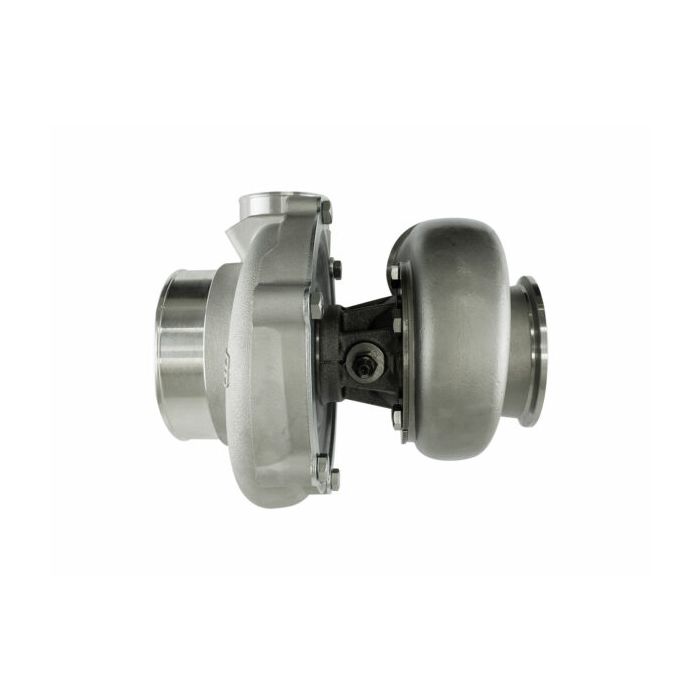

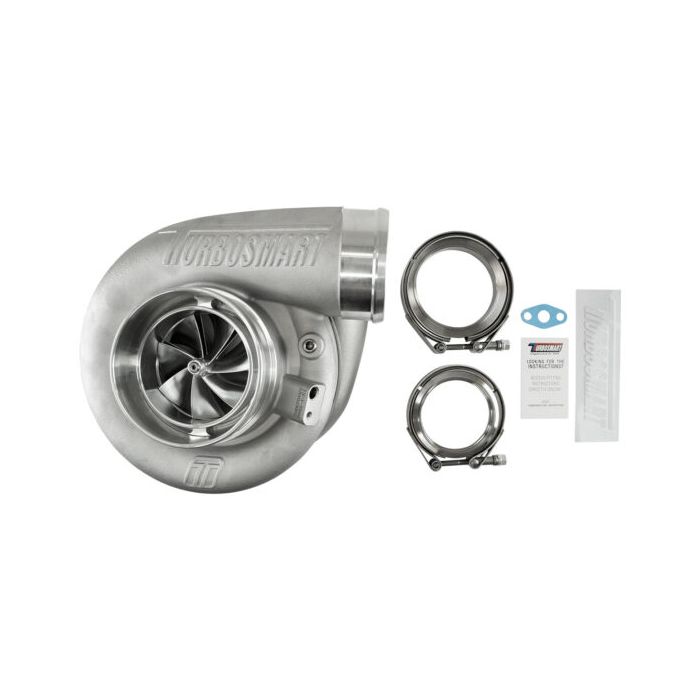

Turbosmart TS-1 High-Performance Turbo TS-1-6870VB096E 6870 V-Band 0.96AR with External Wastegate

Smaller, Lighter, Faster: The Turbosmart TS-1 series of turbochargers has been developed to take advantage of modern materials, design, and manufacturing techniques, creating a range of turbos that caters to the demands of both motorsport enthusiasts and high-performance aficionados.

TS-1 series turbos are oil-cooled and feature lightweight lost-wax cast stainless steel turbine housings. A patented bearing and main shaft system provides unimaginable transient response, with the performance, quality, reliability, and support that characterize Turbosmart.

The ultra-low rotational mass of our unique bearing and shaft assembly combines with aggressive compressor aerodynamics to ensure high performance at low shaft speeds. In addition, it incorporates a unique Inconel T14 turbine wheel to ensure power is maintained at high loads and flow rates.

The TS-1 series of turbos takes a comprehensive approach to increasing engine performance, aiming to achieve power through lower back pressure and high-performance turbos, all in a smaller, lighter, and faster format.

Available in:
TS-1 Oil Cooled Turbos
TS-2 Oil & Water Cooled Turbos
V-Band, T3 & T4 Flange Options
Reverse Rotation (Selected Sizes)
Various A/R Options
Internal & External Wastegate Options Available

Features:
Unrivalled Transient Response
Aggressive Aerodynamics with 7+7 Split Wheels
Lightweight 310s Stainless Steel Lost Wax Cast Turbine Housings
Lightweight Aluminium Compressor Covers
CFD Designed Housings for Optimal A/R and Flow
T14 Inconel Turbine Wheel for Extreme EGTs
VSR Speed Balanced
Patented Dual Ceramic Ball Bearing System
Integrated Iron Backplate in Center

Specifications

Power: 990 HP

Compressor Inlet: 4" / 101.6 mm
Compressor Inducer: 68 mm
Turbine Inlet: V-Band (3.00")
Turbine Exducer: 70 mm
Turbine A/R: 0.96
Turbine Outlet: V-Band (3.50")
Weight: 6.43 kg / 14.17 lb
