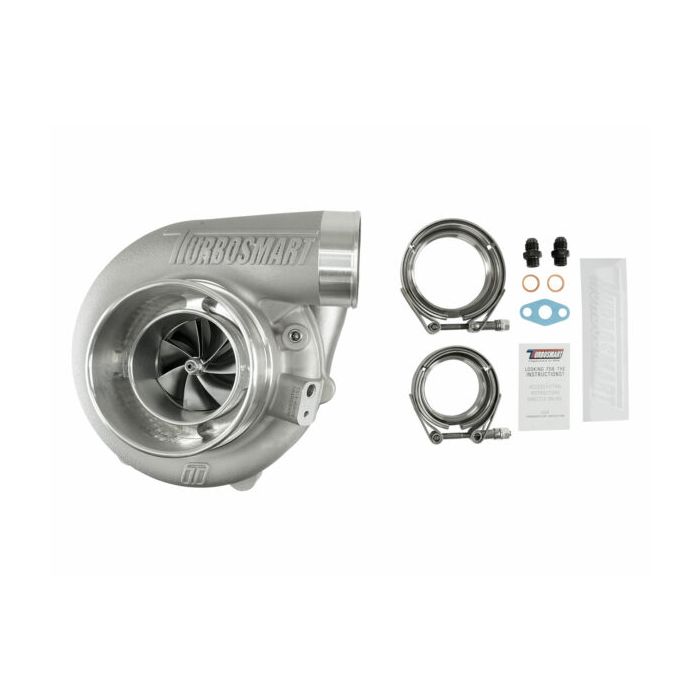

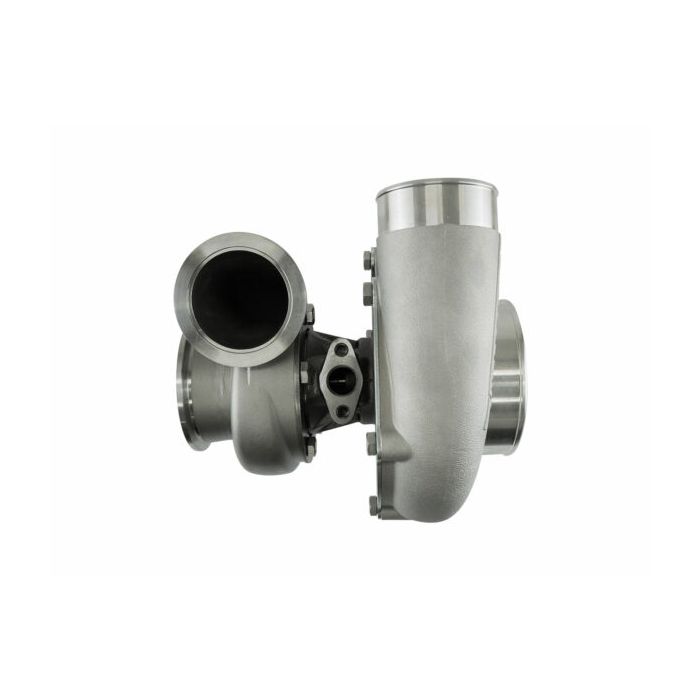

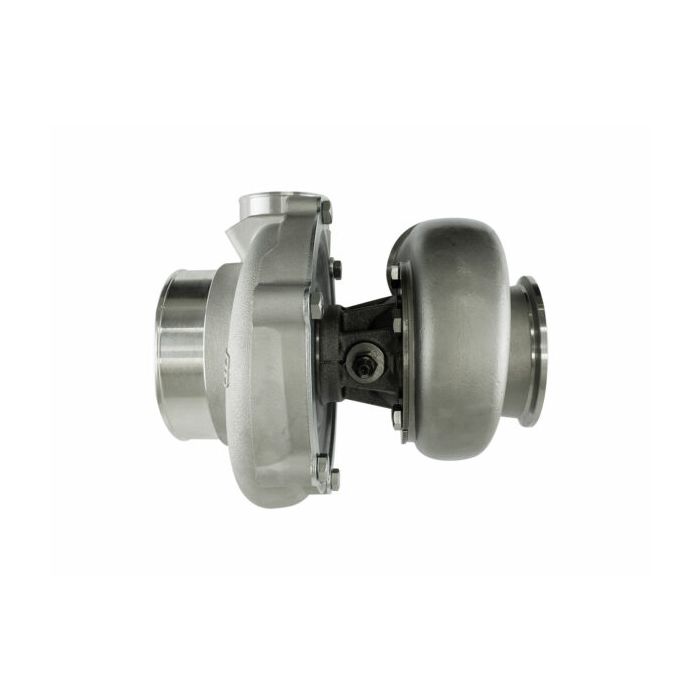

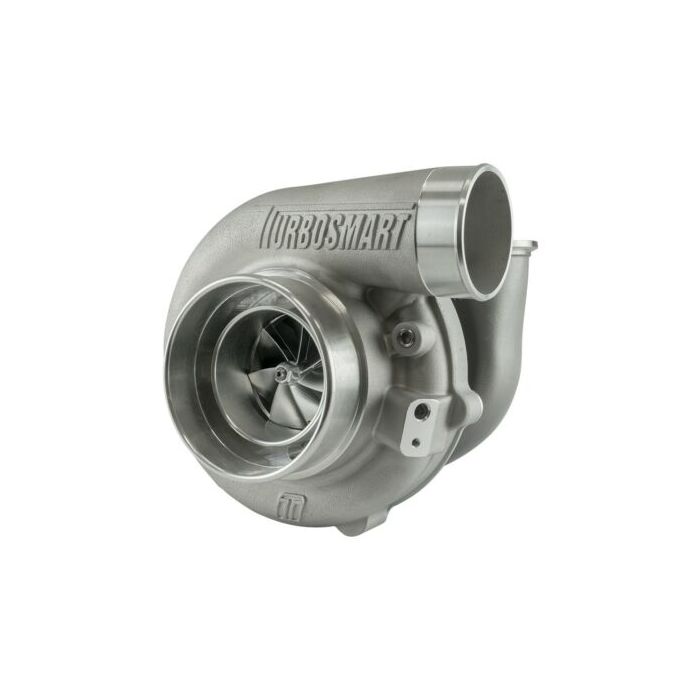

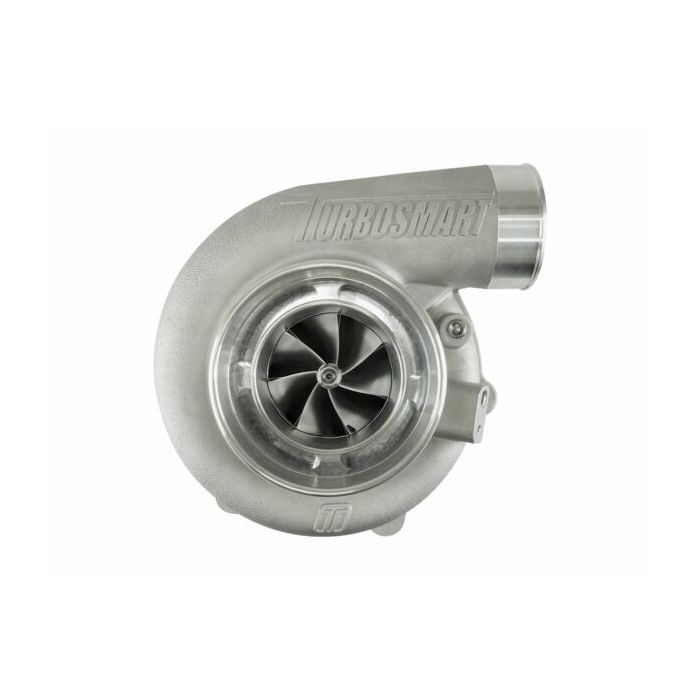

High-Performance Turbo TS-1 Turbosmart TS-1-6466VB082E 6466 V-Band 0.82AR with External Wastegate

Smaller, Lighter, Faster: The Turbosmart TS-1 series of turbochargers has been developed to take advantage of modern materials, design and manufacturing techniques, creating a range of turbochargers that meets the demands of both motorsport enthusiasts and high-performance aficionados.

TS-1 series turbochargers are oil-cooled and feature lightweight lost-wax cast stainless steel turbo housings. A patented bearing and main shaft system provides unimaginable transient response, with the performance, quality, reliability and support that characterize Turbosmart.

The ultra-low rotating mass of our exclusive bearing and shaft assembly is combined with aggressive compressor aerodynamics to ensure high performance at low shaft speeds. In addition, it incorporates an exclusive Inconel T14 turbo wheel to ensure that power is maintained at high loads and flow rates.

The TS-1 series of turbochargers adopts a comprehensive approach to increasing engine performance, seeking to achieve power through lower backpressure and high-performance turbochargers, all in a smaller, lighter and faster format.

Available in:
TS-1 oil-cooled turbochargers
TS-2 oil and water-cooled turbochargers
V-Band, T3 and T4 flange options
Reverse rotation (selected sizes)
Various AR options
Internal and external wastegate options available

Features:
Unmatched transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s lost-wax cast stainless steel turbo housings
Lightweight aluminum compressor covers
CFD-designed housings for optimal AR and flow
T14 Inconel turbo wheel for extreme EGTs
VSR speed balanced
Patented ceramic dual bearing system
Integrated cast iron backplate in the center

Specifications

Power: 930 hp

Compressor inlet: 4" / 101.6 mm
Compressor inducer: 64 mm
Turbo inlet: V-Band (2.25")
Turbo exducer: 66 mm
Turbo aspect ratio: 0.82
Turbo outlet: V-Band (3.00")
Weight: 6.06 kg / 13.3 lb
