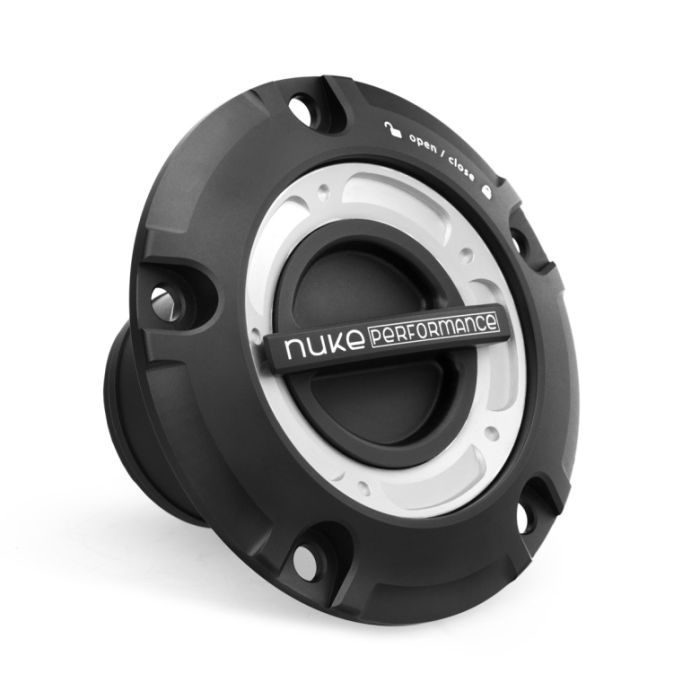

Nuke Performance Remote Quick-Release Filler Cap

Nuke Performance Remote Quick Lock Filler Cap for 50mm (2") fuel hoses, for all types of racing vehicles and aftermarket fuel tanks. With a lightweight design, quick-lock mechanism, and 5-bolt pattern, this cap is the ideal solution for easy and secure installation on your aftermarket fuel tank or Nuke Performance CFC units. With just a 90-degree twist, you can lock and unlock the cap with ease.

Quick lock with 90-degree lock mechanism. Barbed fitting for 50mm (2") fuel hoses. Universal fit for your race car. Viton O-rings and gaskets, safe for all types of fuel. Safety wire kit included.

Simplify your CFC unit fuel filling process with the Nuke Performance Remote Quick Lock Filler Cap. Thanks to its 5-bolt pattern and user-friendly mounting hardware, installation is a breeze. This filler cap is compatible with standard gas station nozzles and fuel jug filler hoses and is safe to use with all types of fuels, including E85 and other alcoholic fuels. With its Viton gaskets and seals, you can trust that it will withstand even the most demanding conditions.

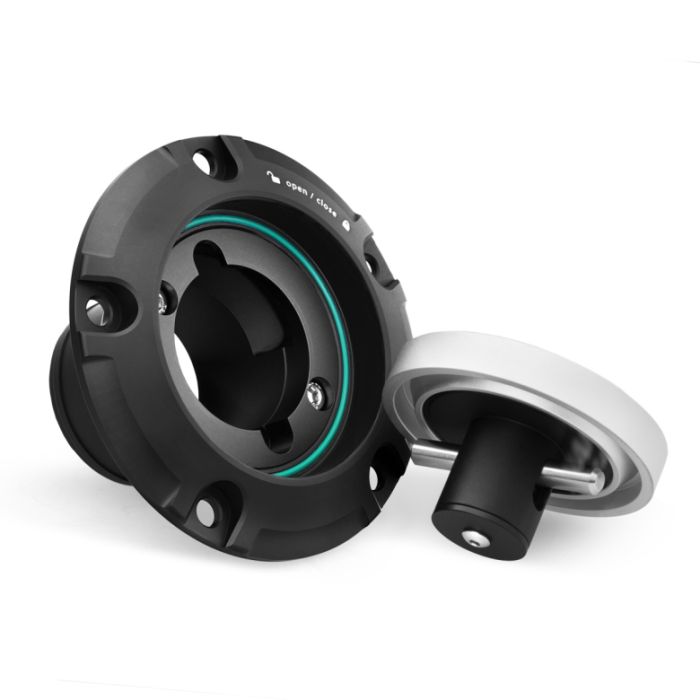

With a true quick-lock mechanism, only a 90-degree twist is needed to secure the cap. The Nuke Performance Remote Quick Lock Filler Cap is a piece of art, and we ensure you will love it. Opening and closing this aluminum masterpiece will amaze you. Thanks to its simple 90-degree twist quick-lock mechanism, you can easily unlock and lock the cap, making it perfect for motorsport applications where a remote filling solution is required. It features a barbed connection that fits a 50mm (2") fuel filler hose, such as the Nuke Performance Fuel Filler Hose Kit.

Safe for all types of fuel, including alcoholic fuels. Barbed connection fits 50mm (2") fuel hose.

This filler cap is not only extremely practical, but it is also built to last. It is safe to use with all types of fuels, including ethanol and methanol, and its durable construction ensures optimal performance even in the most demanding conditions.

Installation is a breeze thanks to the 5-bolt pattern design and available mounting hardware. Installation is made simple with the additional aluminum nut ring and steel holder. The remote filler cap solution makes refueling your aftermarket fuel tank easy, and it is specifically designed to be used with our CFC units. By installing it in an easily accessible location, refueling your CFC unit equipped fuel tank is quick and straightforward, without having to fumble around in your vehicle's trunk. Note that a 77mm (3.03") hole needs to be fabricated if installing the cap into a body panel. Aluminum nut ring with M6 screws. Part No: 150-30-112. Steel mounting bracket with M6 screws. Part No: 150-30-113.

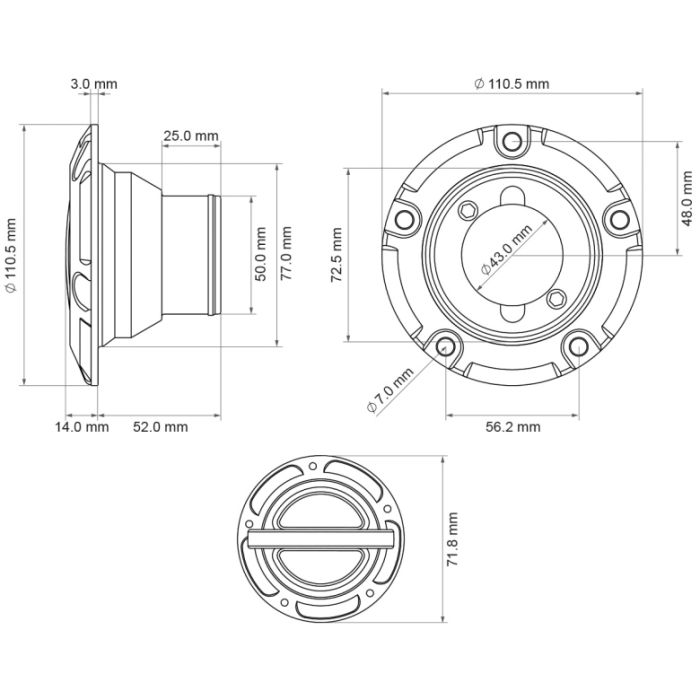

Remote Quick Lock Filler Cap Specifications:

Barbed connection

50.0 mm (2.0")

Barbed length

25 mm (0.98")

Bolt pattern

PCD 5x60 mm (2.36") / BCD 96 mm (3.77")

Bolt dimensions

M6 (not included)

Gasket included

YES, Viton gasket

Wire included

YES, stainless wire with heat shrink

Outer diameter

110.5 mm (4.35")

Height above panel

12.0 mm (0.47")

Overall depth

64.0 mm (2.51")

Weight

366 g (0.80 lb)

For motorsport use
YES

Fuel compatibility
Petrol, Ethanol, Methanol, Race Fuel, Diesel

Part No.

150-30-101

EAN
7340209505436

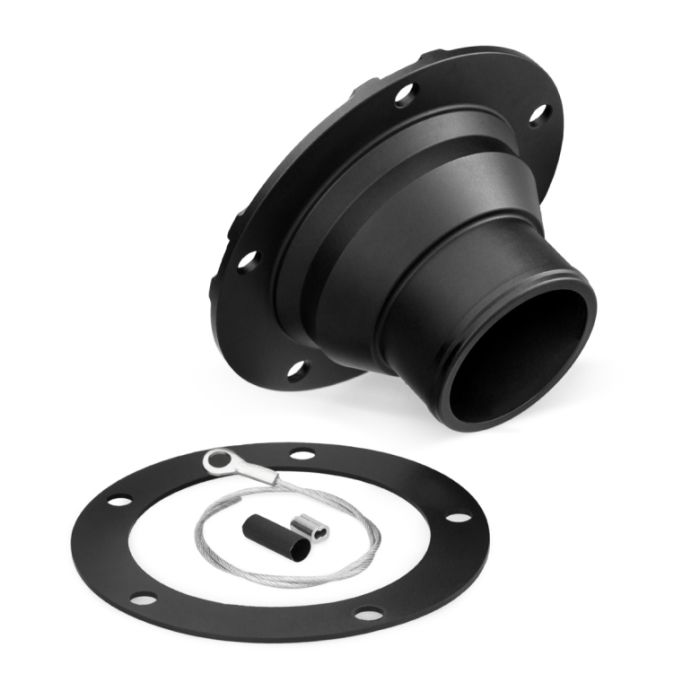

The Nuke Performance Remote Quick Lock Filler Cap includes: 1 pc. Filler cap body with 50mm (2") hose barb connection, 1 pc. Quick release spring-sealed filler cap, 1 pc. Safety wire kit for M6 application, 1 pc. Viton gasket, fuel type safe for all types of fuel.
