PRODUCT DESCRIPTION
Product details

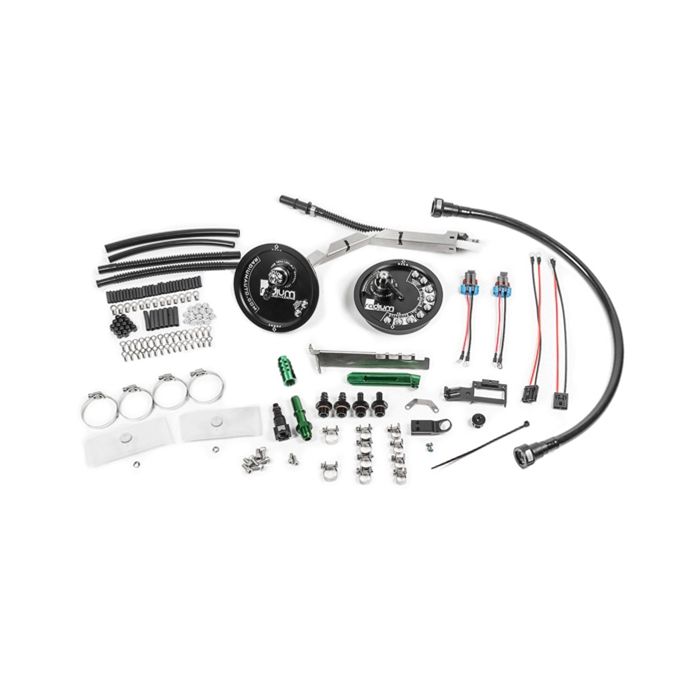

20-1180 FUEL PUMP HANGER
COMPATIBILITY
BMW E46 316i (1999-2005)
BMW E46 318i (1998-2006)
BMW E46 320i (1998-2006)
BMW E46 323i (1998-2000)
BMW E46 325i (2001-2006)
BMW E46 328i (1998-2000)
BMW E46 330i (2000-2006)
BMW E46 330i ZHP (2003-2006)
BMW E46 M3 (2000-2006)
BMW E46 M3 CSL (2003-2004)
OVERVIEW
This Radium Engineering fuel pump hanger replaces both the right and left side fuel hat assemblies. It is compatible with either one or two aftermarket fuel pumps. The kit reuses the passive and active fuel level sensors. It also retains a saddle-style fuel transfer system with new, improved components. No cutting or modification of the vehicle is required for installation.
CONNECTIONS
The combined fuel pump outlet is 10AN ORB (7/8"-14) female threaded on the top plate. However, an SAE quick connect fitting is included to connect to the OEM feed line.
The fuel return inlet is 10AN ORB (7/8"-14) female threaded on the top plate. However, an 8.5mm adapter is included to connect to the OEM return line.
All connections are machined sufficiently low so as not to interfere with the surrounding area.
COMPATIBLE FUEL PUMPS
The 20-1180 is configured for use with 1 or 2 aftermarket fuel pumps. These can be either 2-wire brushed fuel pumps or 3- or 4-wire brushless fuel pumps.
Choosing the best fuel pump depends on the expected engine power, fuel type (gasoline, E85, etc.), and fuel pressure.
AEM 50-1000
AEM 50-1200
Walbro GSS342
Walbro F90000267
Walbro F90000274
Walbro F90000285
*Walbro F90000295
*Ti Automotive E5LM
Protec 11928 / Fuelab 49614
Deatschwerks DW440
Deatschwerks DW810
*These pumps do not include an integrated check valve. If a check valve is required, please purchase part number 20-1534 (separately) to replace the fittings located under the fuel tank lid.
ELECTRICAL SYSTEM
Custom-designed stainless steel electrical terminals easily support the high current demands that compact multipin connectors do not offer. They feature an anti-rotation system that prevents the terminals from spinning. These serviceable connections are hermetically sealed and resistant to all standard and specialty fuels. Non-conductive anodized aluminum acorn nuts are included to prevent accidental short circuits. Additionally, in-tank wiring is insulated with high-quality, chemical-resistant ETFE.
NOTES
In single pump installations, the OEM fuel pump wiring can be reused.
It is recommended to upgrade the OEM wiring to ensure the pump receives full power and operates at its maximum potential.
If a second pump is used, it is IMPERATIVE to use a pump-specific relay and fuse.
FEATURES
Easy installation
Aluminum and stainless steel construction
Venturi jet pump air recirculation valve
Integrated 10AN ORB female pump outlet port
Compatible with various pumps
Compatible with brushless fuel pumps
Includes fuel filters
Can run with 1 or 2 fuel pumps
Anti-rotation electrical terminals
High-current electrical component compatibility
Compatible with gasoline, methanol, and E85
Instruction PDF
