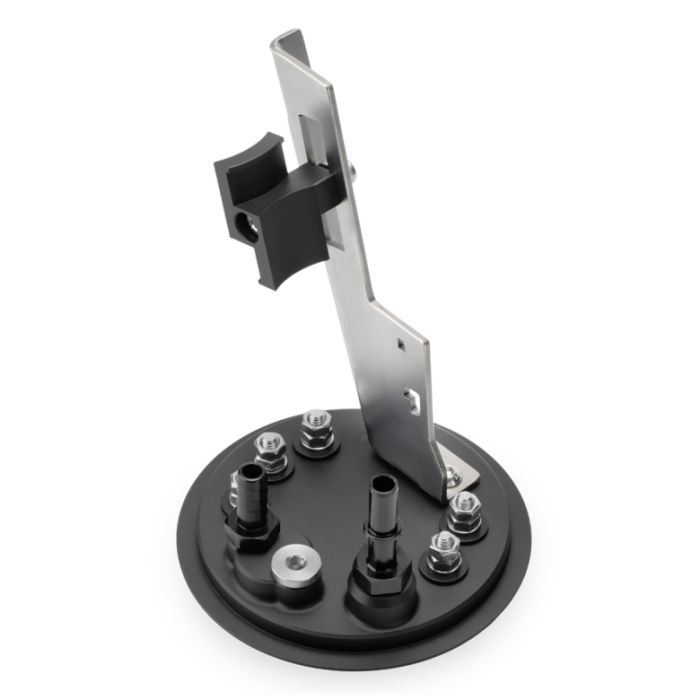

Nuke Performance fuel pump bracket for BMW E36

Nuke Performance fuel pump hanger for the classic BMW E36. This kit replaces the original fuel pump hanger and allows for an easy upgrade to a single or dual pump setup with high-flow aftermarket fuel pumps.

Precision-machined from high-quality materials and designed for long-term reliability, this kit provides the perfect foundation for upgrading your BMW E36 fuel system, while fully retaining the original fuel level sensors.

Competition fuel pump hanger for BMW E36 1990-1999

Compatible with 1 or 2 high-pressure in-tank fuel pumps

Includes upgraded venturi jet pump for higher flow rates

Retains original fuel level sensors and filler hose

Oversized AN-10 ORB outlet port ensuring sufficient fuel supply

Approved for use with alcohol fuels, such as E85

Designed for high-performance applications requiring increased fuel flow, this fuel pump hanger offers a modern and easy-to-maintain solution for both street and track use. It retains the original fuel level sensors for full factory fuel gauge functionality, incorporates an improved fuel transfer system for better crossover, and installs without the need to cut or modify the vehicle.

Nuke Performance BMW E36 fuel pump hanger fuel pump compatibility.

The BMW E36 fuel pump hanger includes internal SAE fuel hoses (both ID8 and ID10), allowing you to select the one that best suits your fuel pump. High-quality hoses and connectors ensure reliable operation, even with demanding fuels like ethanol (E85).

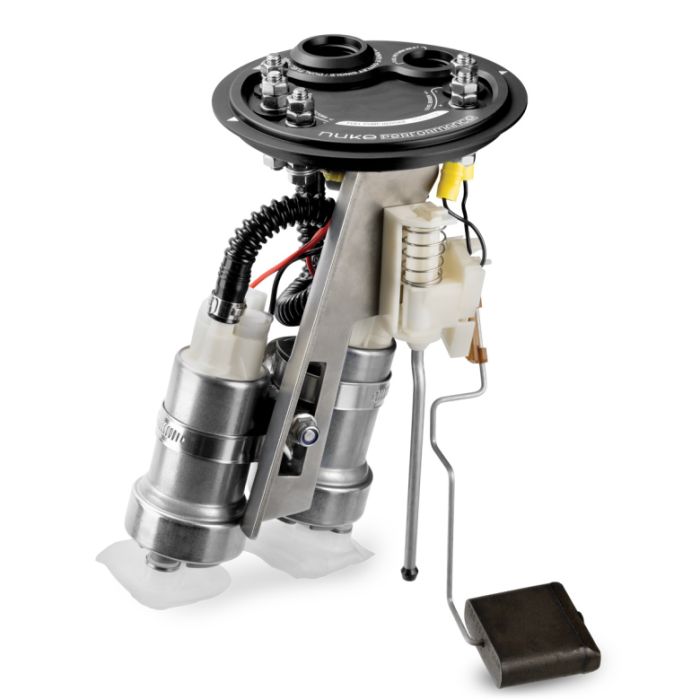

Fuel pump hanger for 1 or 2 high-pressure pumps

Allows sufficient fuel flow for 1200 HP with E85

Allows sufficient fuel flow for 1600 HP with gasoline

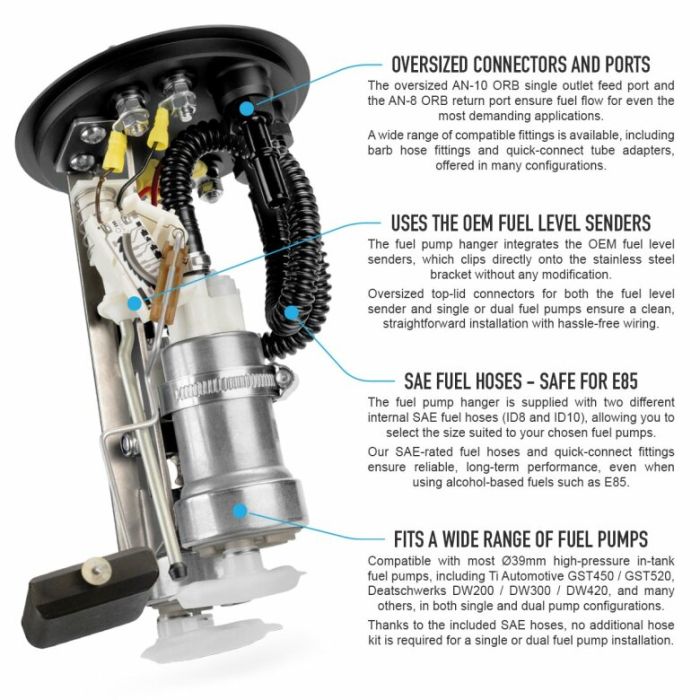

The fuel pump hanger is designed for high-pressure in-tank fuel pumps with a 39 mm outer diameter, such as Walbro (Ti Automotive) GSS340, GST450, and GST520, Deatschwerks DW200, DW300, and DW420, among others. Thanks to the included internal hoses and fittings, no additional hose kit is required for both single and dual pump configurations. We have you covered.

The BMW E36 fuel pump hanger makes conversion to AN fuel lines for fuel system upgrades easy.

Designed for aftermarket AN fuel lines, it replaces one of the factory fuel pump covers and requires rerouting the return line to the new hanger. The hanger features an oversized AN-10 ORB outlet and an AN-8 ORB return port, which also feeds the included high-flow venturi kit that transfers fuel between both sides of the tank. The factory venturi is replaced to support the higher flow demands of high-performance fuel systems. The original filler hose and fuel tank vent remain unchanged and can be retained. AN-10 ORB outlet connectors:

AN-10 ORB to AN-6 female swivel connector. Part no: 710-01-112

AN-10 ORB to AN-6 male swivel connector. Part no: 710-01-109

AN-10 ORB to AN-8 male swivel connector. Part no: 710-01-110

AN-10 ORB to AN-10 male swivel connector. Part no: 710-01-111

AN-8 ORB return connectors:

AN-8 ORB to AN-6 female swivel connector. Part no: 710-01-104

AN-8 ORB to AN-6 male swivel connector. Part no: 710-01-101

AN-8 ORB to AN-8 male swivel connector. Part no: 710-01-102

AN-8 ORB to AN-10 male swivel connector. Part number: 710-01-103

Original fuel level sensor integration, ensuring full factory fuel gauge operation.

The fuel pump hanger replaces the left original fuel tank cover, maintaining full functionality of the original fuel level system. Both original fuel level sensors remain in use without modifications, including the secondary sensor located on the right side. The electrical connectors for the fuel pump and the fuel level sensor are integrated into the replacement left cover, providing a clean installation and simple wiring for high-performance fuel system upgrades.

Replacing only the upper left cover saves time and money on installation, and is sufficient with all the necessary features for a high-performance fuel system in the classic BMW E36.

Improved venturi jet pump system for increased fuel flow capacity.
The BMW E36 fuel pump hanger includes a high-flow venturi jet pump system that replaces the factory connection components, ensuring reliable fuel transfer between both sides of the saddle-type fuel tank at high flow rates. The return line is redirected to the replacement cover, while the factory connection unit on the opposite tank cover is removed during installation. Two interchangeable flow adapters are included to optimize fuel transfer according to different pump configurations and flow requirements.

Designed and developed in Sweden, ensuring the ultimate finish, functionality, and quality.

Developed and designed in Sweden by Nuke Performance, the BMW E36 fuel pump hanger is engineered to meet the demands of modern high-performance fuel systems, while maintaining OEM functionality where it matters most. Manufactured with the same attention to detail and unwavering quality as all Nuke Performance lightweight motorsport products, each component is developed in close collaboration with racing teams from around the world to ensure proven performance, reliability, and ease of installation. BMW E36 fuel pump hanger specifications:

Compatibility
BMW E36 316i 1990-1999, BMW E36 318i 1990-1998, BMW E36 318is 1992-1998, BMW E36 320i 1991-1998, BMW E36 323i 1995-1998, BMW E36 328i 1995-1998, BMW E36 M3 1992-1999

Electrical connectors

5 (max 125 amps each*)

- Connection points

M6 screw terminals

Level sensor compatibility

Reuses OEM left and right level sensors

Vent port / Filler hose

Uses OEM fuel tank vent port / filler hose

Fuel pump compatibility

1 or 2 39mm OD fuel pumps

Venturi/surge tank functionality
YES, includes upgraded Venturi jet pump

For motorsport use
YES, for motorsport use only

Outlet port, thread

AN-10 ORB, see assortment **

Return port, thread

AN-8 ORB, see assortment **

Fuel compatibility
Gasoline, Methanol, Ethanol, E85

Part No.

170-02-101

EAN
7340209512601

*For reference only** Not included, must be added as accessory
The BMW E36 fuel pump hanger includes:

1 x BMW E36 fuel pump hanger top cover (left side)

5 x M6 screw electrical connectors
2 x Rubber gaskets for the top cover (for both left and right sides)

4 x 1/4 BSPP to SAE 9.49 adapters
1 x Spare SAE 9.49 adapter Plastic insert

1 x Silicone plug for OEM return line connection

1 x 1/4" BSPP plug *

2 x 250 mm SAE fuel hoses for fuel pump with 8 mm OD connector *

2 x 250 mm SAE fuel hoses for fuel pump with 10 mm OD connector *

2 x 1/4" BSPP to 8 mm adapters *

2 x 1/4" BSPP to 10 mm adapters *

1 x Upgraded Venturi jet pump kit with standard/high flow adapters **

1 x 1000 mm SAE 9.49 fuel hose for Venturi jet pump kit **

1 x 400 mm SAE 9.49 fuel hose for Venturi jet pump kit **

4 x SAE single-ear hose clamps for SAE fuel hose

2 x 44-56 mm stainless steel hose clamps

* Hoses and adapters for 8 mm and 10 mm single and dual fuel outlet configurations are included; only use the one compatible with the selected fuel pumps.** The kit includes a conversion kit for the auxiliary fuel tank that replaces the original Venturi system.

The fuel pump hanger does not include pumps.

The BMW E36 fuel pump hanger is supplied without pumps. Please select compatible pumps separately according to your needs.
