COMPATIBILITY: 94-01 Acura Integra (all models/trims/RHD/LHD) 92-00 Honda Civic (all models/trims/RHD/LHD)

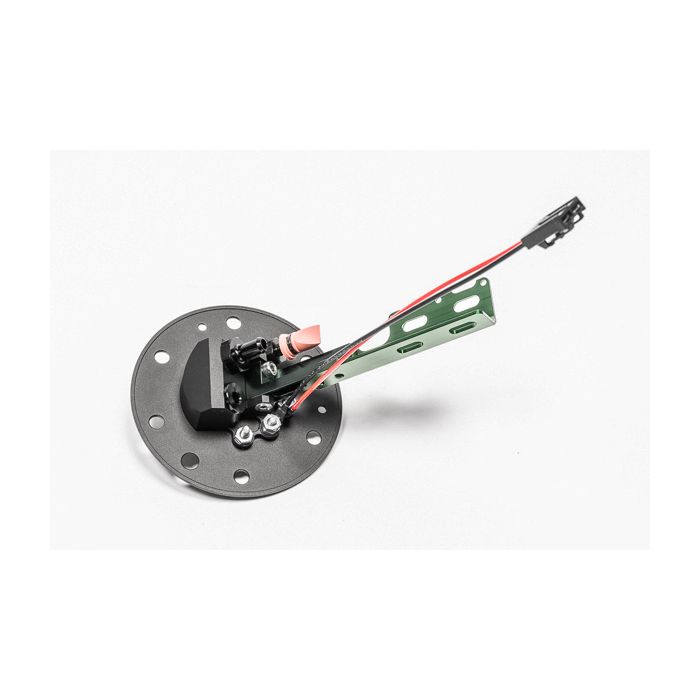

OVERVIEW: This Radium Engineering fuel hanger replaces the OEM fuel pump assembly. No cutting or modification to the vehicle’s sheet metal or fuel tank is required for installation.
The fuel pump outlet is 8AN ORB (3/4"-16) female threaded on the top plate. Several outlet adapters are included: 1. The pre-installed -6AN male adapter allows for use of an aftermarket feed line. 2. The 8.5mm barb adapter allows for reuse of the OEM feed line (94-95 Integra / 92-95 Civic). 3. The SAE quick connect adapter allows for reuse of the OEM feed line (96-01 Integra / 96-00 Civic).

FUEL PUMPS: Part numbers 20-0790-00 and 20-0792-00 are configured for use with one aftermarket fuel pump. NOTE: If two aftermarket pumps are required, the optional dual pump kit (20-0796-00 or 20-0797) is also required. The choice of the most suitable fuel pump(s) is based on expected engine horsepower and fuel type. (gasoline, E85, etc.) and fuel pressure.

P/N: 20-0790-00 can be used with AEM 50-1000, AEM 50-1200, Walbro GSS342, or other pumps with the same physical shape and electrical connector. P/N: 20-0792-00 can be used with Walbro 39/50 DCSS pumps, including F90000267, F90000274, or F90000285 pumps.

FEATURES: Easy Installation, Anodized Aluminum Construction, Integrated 8AN ORB Female Pump Outlet Port, OEM and Aftermarket Line Connections, 2-Pump Capable with Extension, Compatible with Various Pumps, Fuel Filter Included, High Current Electrical Components, Stainless Steel Hardware and Clamps, Compatible with Gasoline, Methanol, and E85.
Instruction PDF
