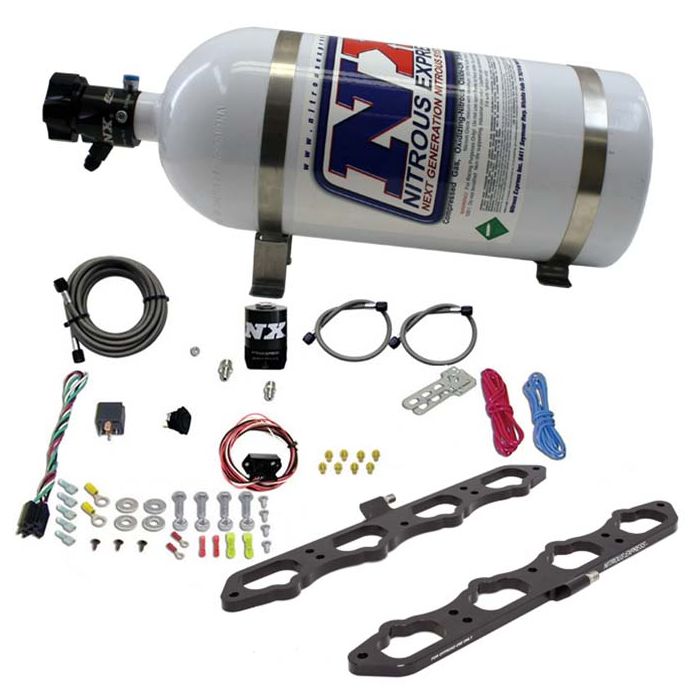

Nitrous Express NX 20957-10 Ford Coyote Dry Direct Port Plate System with 10 lb Bottle

Dry Direct Port Plate System for Ford Coyote Engine

Nitrous Express direct port nitrous plates are designed to fit under either the 2018+ 5.0L factory intake manifold or Boss intake manifolds. Boss intake manifolds are a direct replacement for any modern 5.0 Coyote engine, making for an inexpensive and easy horsepower boost.

This system is capable of between 100-300 horsepower. Direct port plates provide a big advantage over a single nozzle or plate by providing the best possible distribution, delivering the same amount of nitrous to each cylinder.

The plates bolt on under the intake manifold making for an easy and quick install. At just under ½” thick, you will not need to install an aftermarket hood. Made completely from billet aluminum, anodized black, and as always, proudly made in the USA!

This system includes a TPS auto-learn switch so the nitrous will only activate at wide open throttle and automatically deactivate when you let off the throttle.

System includes jetting.

Systems include an extra long stainless-braided N2O hose, master arming switch, relay, relay harness and all necessary hardware to complete the installation.

Systems with a bottle include the new Billet aluminum Lightning 500 bottle valve and stainless steel bottle brackets.

-Minor modification required for 2011-2014 intake manifolds.

-Not compatible with 2015-2017 intake manifolds.

-Compatible with Boss 302 intake manifold.

*Compatible with all Coyote engines as long as they are fitted with the 2018+ intake manifold*.

NITROUS BOTTLE IS EMPTY!

PDF Instructions
