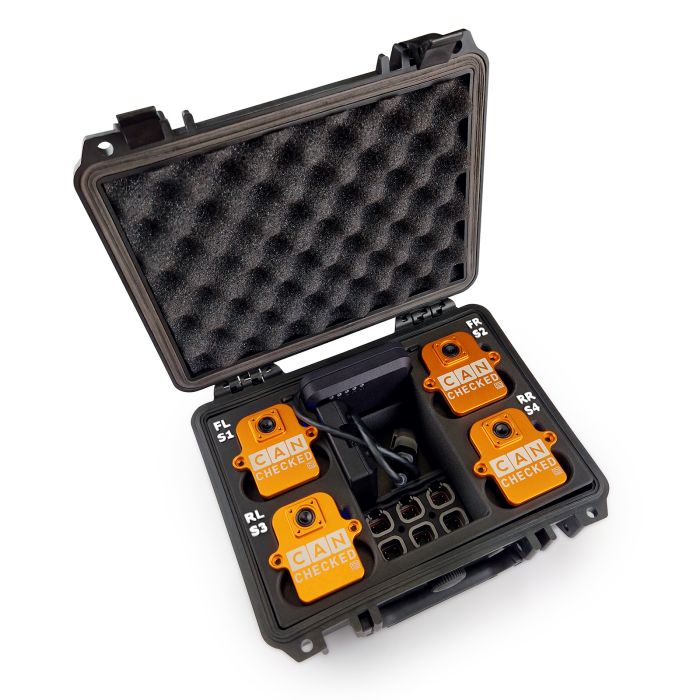

CANchecked BMU04 Wireless Brake Temperature Monitoring System with Load Box

Wireless Brake Temperature Monitor with Full Charging and Storage Case - BMU04

Enhance your vehicle's performance monitoring with the Wireless Temperature Monitor – a high-performance wireless system featuring advanced infrared temperature sensors and CAN connectivity. This comprehensive kit includes four multi-channel sensors, a CAN receiver, and now a complete charging case that not only charges all four sensors simultaneously but also offers dedicated storage for the CAN receiver. With this added functionality, you’ll have an organized, ready-to-use system, boasting simple setup and seamless mobility between vehicles.
Key Features:

Wireless and Easy to Install: Simple setup with rapid transfer between vehicles.

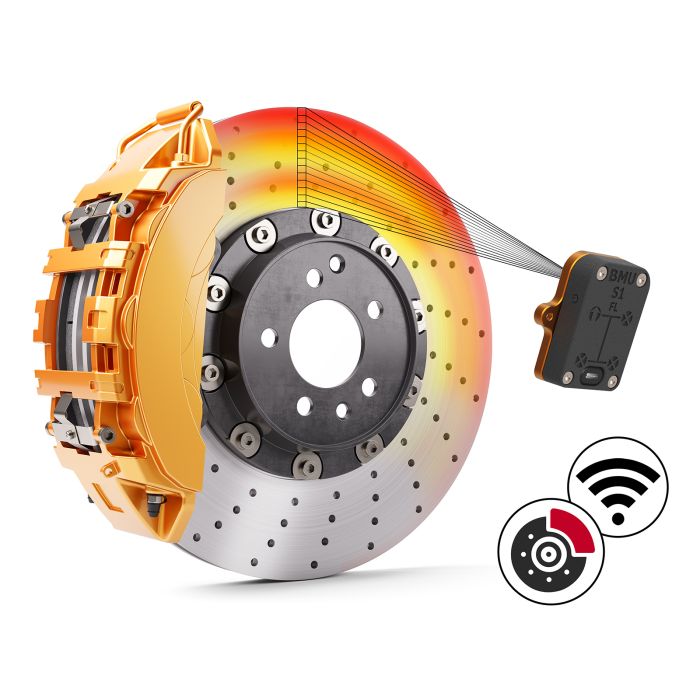

Advanced Multichannel Infrared Monitoring:

8 configurable channels per tire or brake disc.

Adjustable update frequency up to 50 Hz for precise, real-time feedback.

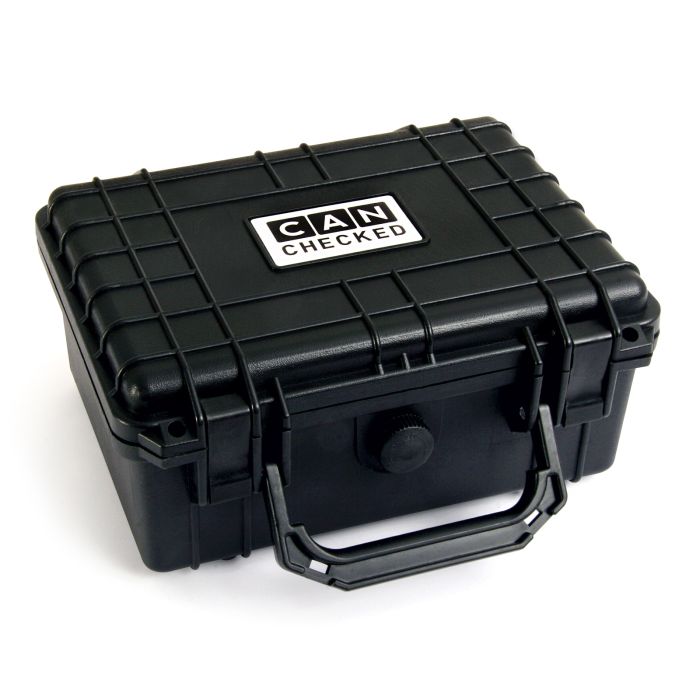

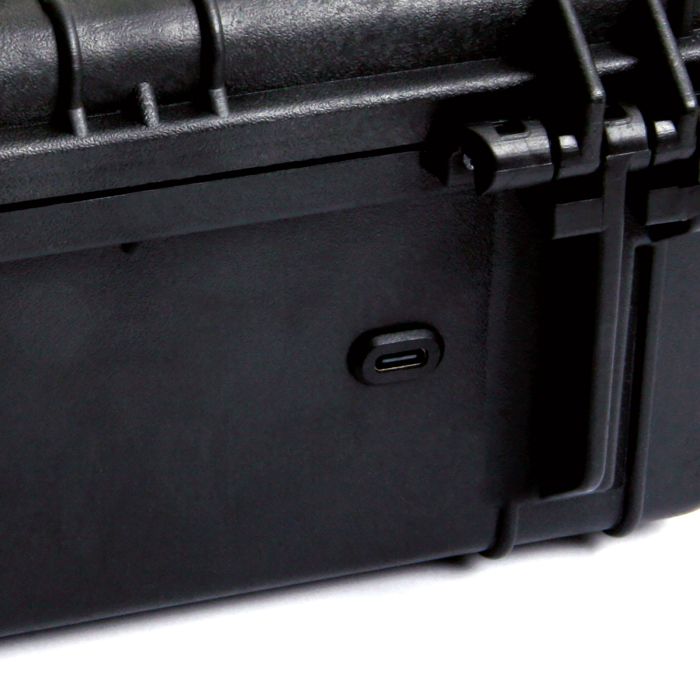

Integrated Charging and Storage Case:

Simultaneously charges all four temperature sensors, ensuring they’re always track-ready.

Integrated storage compartment for secure and convenient transport of the CAN receiver box.

Rechargeable Battery for Extended Use:

250 mAh battery (USB-C charged) in each sensor.

Delivers up to 15 hours of active track use per charge.

High Accuracy and Wide Temperature Range:

Operating Range: -40 to +800 °C.

Field of View: 110° x 6° for comprehensive coverage, with an optional 55° field for focused measurements.

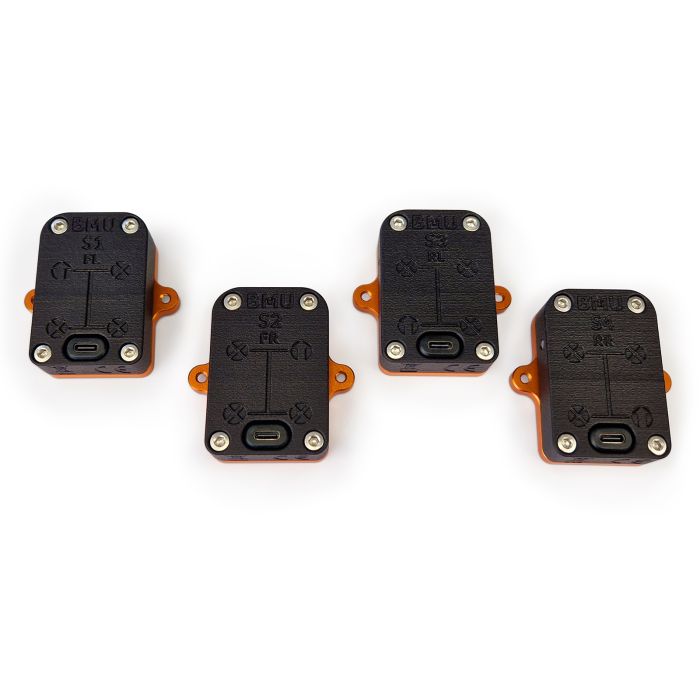

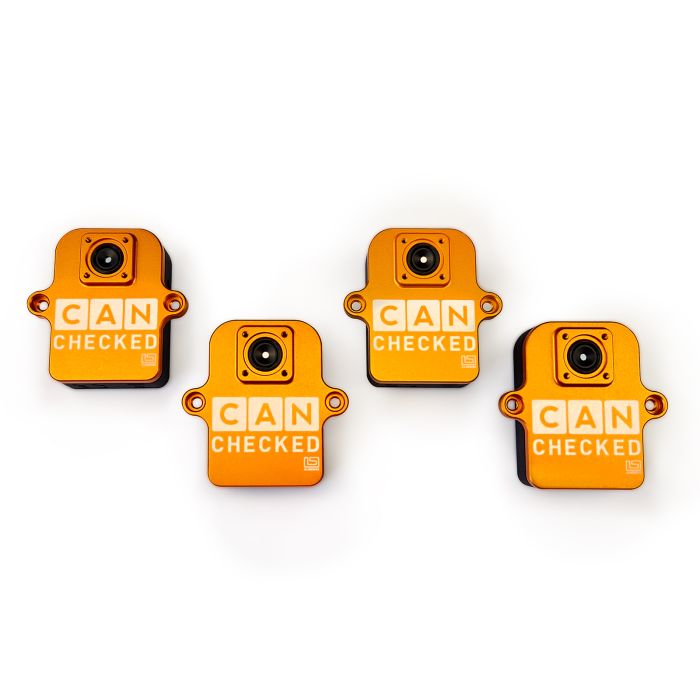

Robust and Compact Design:

Dimensions: 64.0 x 42.0 x 17.5 mm

Weight: 57 g
Durable Aluminum/Polyamide housing with IP65 rating for demanding environments.

Operating Temperature: -40 to +85 °C

Optional Protective Lens: Available for added durability and protection.

Receiver Specifications:

Supply Voltage: 5–20 V
Supply Current: 50 mA
CAN Standard: 2.0A (11-bit) or 2.0B with selectable bit rates (500 Kbps default / 1 Mbps)
Configurable settings for emissivity, channel, CAN rate, and CAN ID.

Default CAN ID (adjustable): 0x310 / 0x210
Temperature Conversion: -200 °C offset, 0.1 °C resolution per bit.

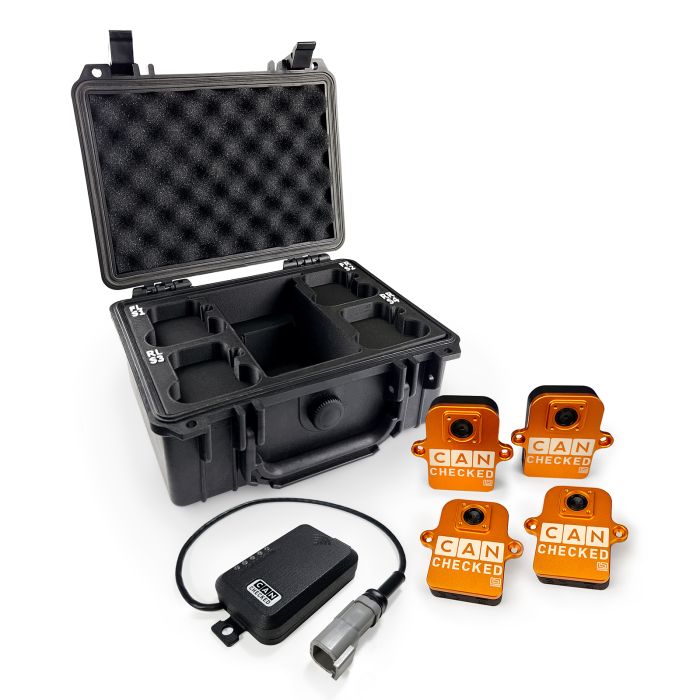

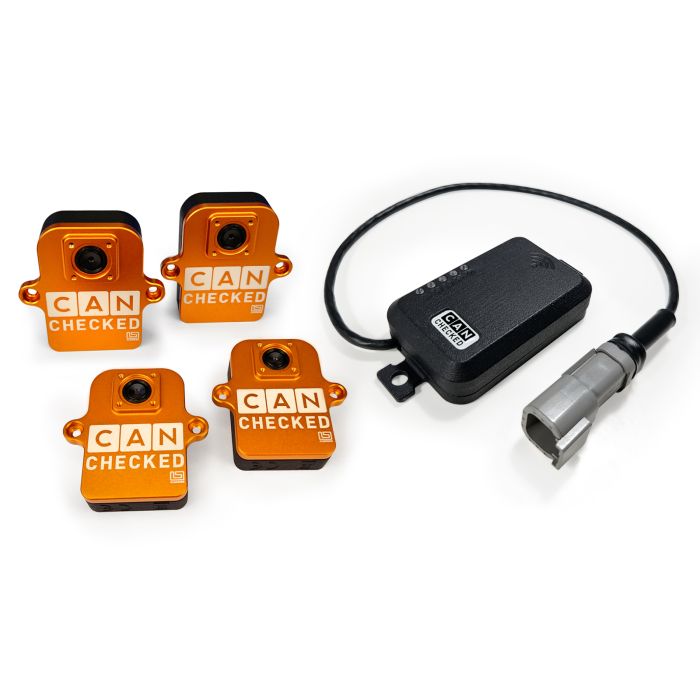

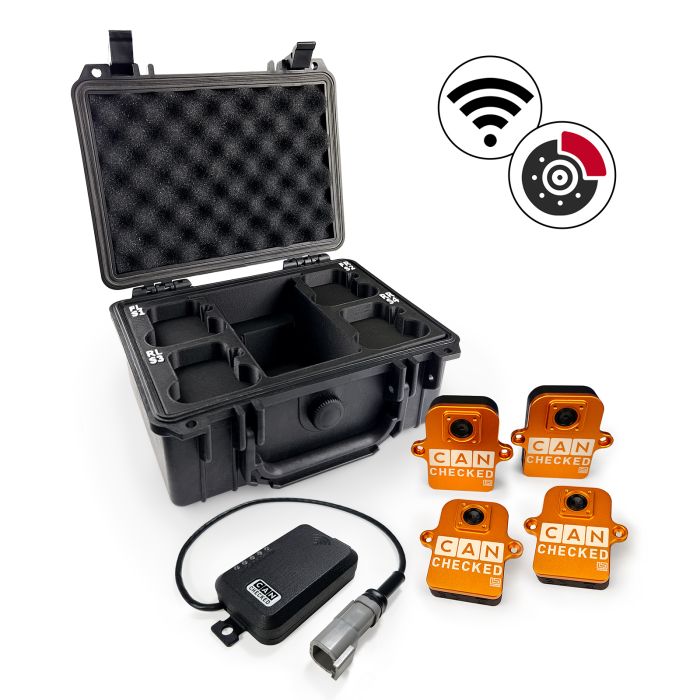

Package Contents:

4 TMU01 sensors

1 CAN Bus receiver box
1 Charging box

Ideal for professional racing and high-performance testing, the Wireless Temperature Monitor, with its new charging and storage solution, offers unmatched convenience and reliability, making it easier than ever to track and manage tire and brake performance data. For developers, we have comprehensive documentation for easy integration with CAN applications. Contact us for more information!
